WOODWARD 9907-147 ProTech 203 De-Energize-to-Trip Overspeed Protection Systems/Guaranteed Quality

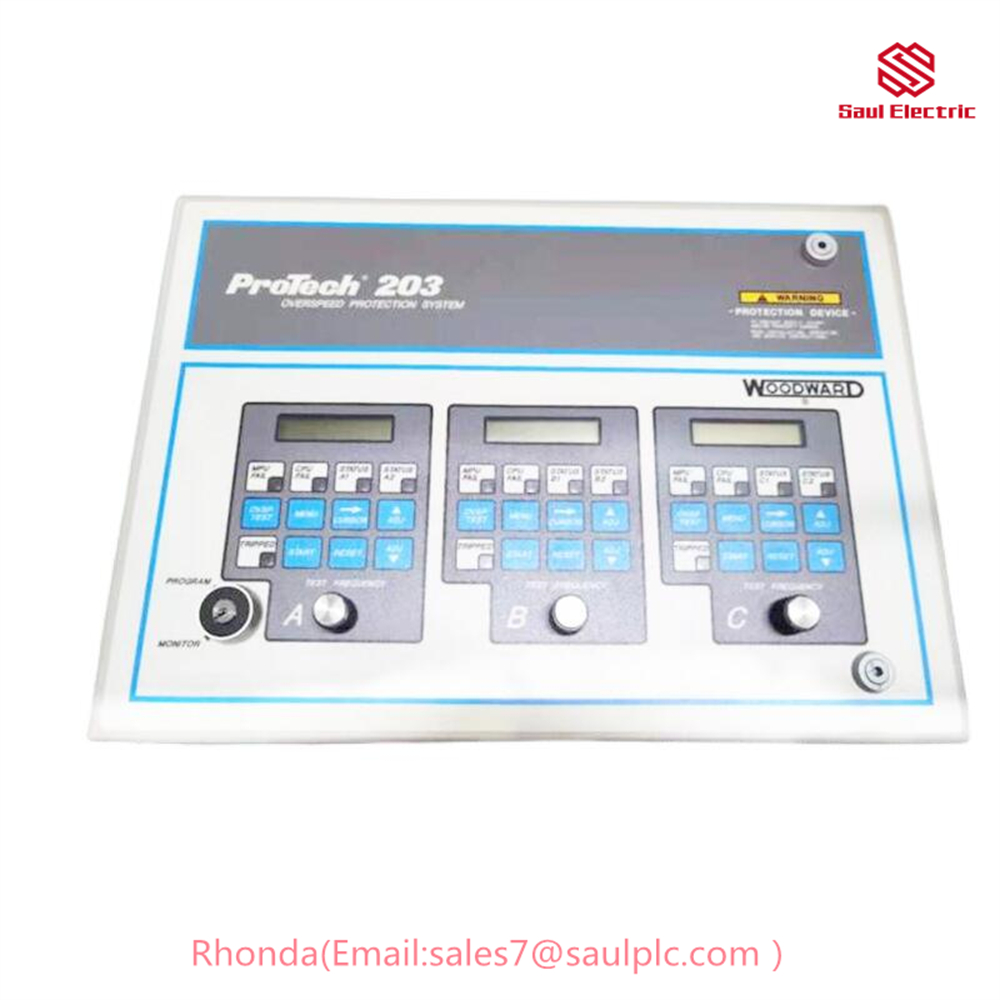

9907-147 Woodward ProTech 203 De-Energize-to-Trip Overspeed Protection Systems. Features a 24Vdc Input, CPU and MPU Failure Indication, and a Lockable Enclosure

Dimensions：W48.3cm x H31cm x D14.3cm
Display Operating Temperature：–15 to +60 °C
Features：Key Lock
Input Voltage：24 Vdc
Keypad/Display：3 LCDS | 2 Lines of 16 Characters
Manufacturer：Woodward ProTech
Model：De-energize-to-Trip
Operating Temperature：–25 to +60 °C
Weight：7.7kg

Product Description
Model 9907-147 uses magnetic pickups to monitor primer speed for overspeed conditions. Devices in this series are susceptible to electromagnetic interference, vibration, moisture, and temperatures outside of the operating temp range of –25 to +60 °C (–13 to +140 °F). ProTech overspeed protection models should be installed in locations that allow adequate ventilation for cooling, space for servicing, and away from direct sunlight, and away from high-current or high-voltage devices.

This de-energize-to-trip system has a 100 Hz to 32 kHz speed-sensing frequency range and a ±(0.05% x Trip Point in Hz +2 Hz) accuracy rating. Overspeed detection functions are carried out by three individual speed-sensing units, which act independently to monitor speed and perform speed calculations. The three units are in a two-out-of-three vote configuration, so a prime mover trip relay will only occur if overspeed conditions are detected by at least two of the units.

The trip-point frequency range of ProTech overspeed protection model 9907-147 is 250 Hz to 25 kHz. Trip set points are programmed for each of the units separately (they must be programmed identically for accurate outputs) using the operator interfaces. There is one interface per speed-sensing unit. Each one has:

Two-line by 16-character LCD display
Touchpad
Potentiometer
LED indicators
Alarm output

≈≈≈≈≈≈≈≈≈≈≈≈≈≈≈
