Brand:TRICONEX
Model:HCU3700/3703E
Module Type:Control
Power Supply Voltage:220V
Frequency Output:50kHz
Certification:TRICONEX 3700/3703E
Series:HCU3700/3703E
Material Coding:TRICONEX
Input Voltage Range:0-5V, +6%
Type:TMR, AI
Number of Input Points:32, diff, DC coupled
Isolated Points:No
Input Update Rate:55ms
Resolution:12 bits
Accuracy:<.15% of FSR, from 0° to 60°C
Input Resistance (load):30MΩ (DC), min.
Power-Off Resistance:30KΩ (DC), typical
Common Mode Rejection:-80dB (DC-100Hz), typical
Common Mode Range:-12V to +12V peak
Leg-to-Leg Isolation:200KΩ, typical
Normal Mode Rejection @ 8Hz:-3dB
Normal Mode Rejection @ 60Hz:-17dB
Normal Mode Rejection @ 120Hz:-23dB

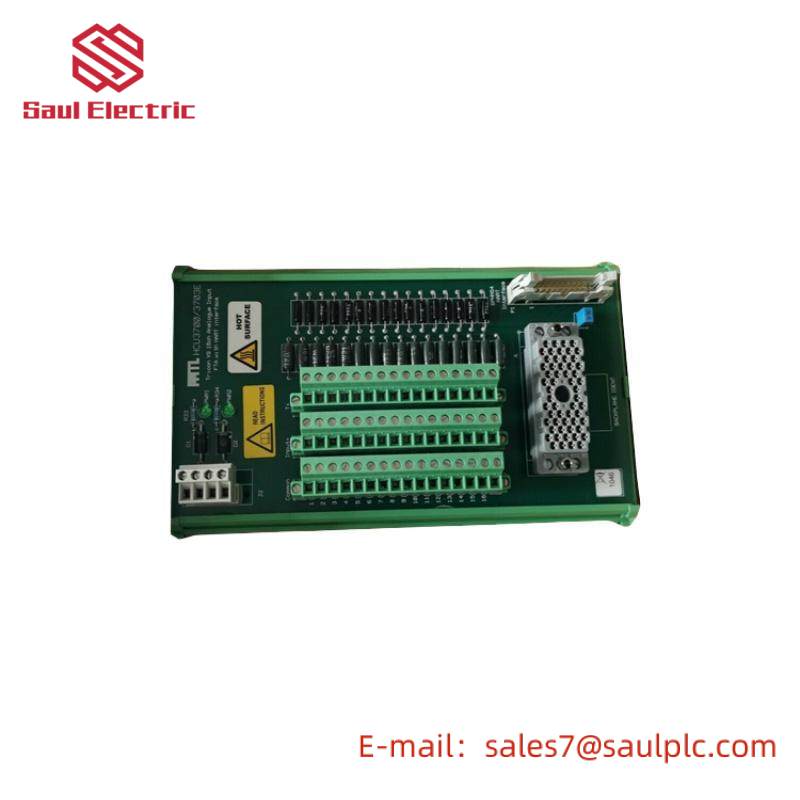

Precision engineered for critical industrial control applications, the TRICONE HCU3700/3703E Control Module ensures reliable operation under extreme conditions.
It features a high-speed digital signal processor (DSP) and advanced algorithms to provide accurate and responsive control.
With its compact design and modular architecture, this module facilitates easy integration into existing systems and offers flexibility in configuration.
Equipped with robust isolation technology, it safeguards against electrical interference and enhances system stability.
The module supports a wide range of input voltages and provides precise analog-to-digital conversion for optimal performance in various industrial settings.
Backed by TRICONE’s commitment to quality and customer support, the HCU3700/3703E Control Module delivers superior reliability and ease of maintenance.
