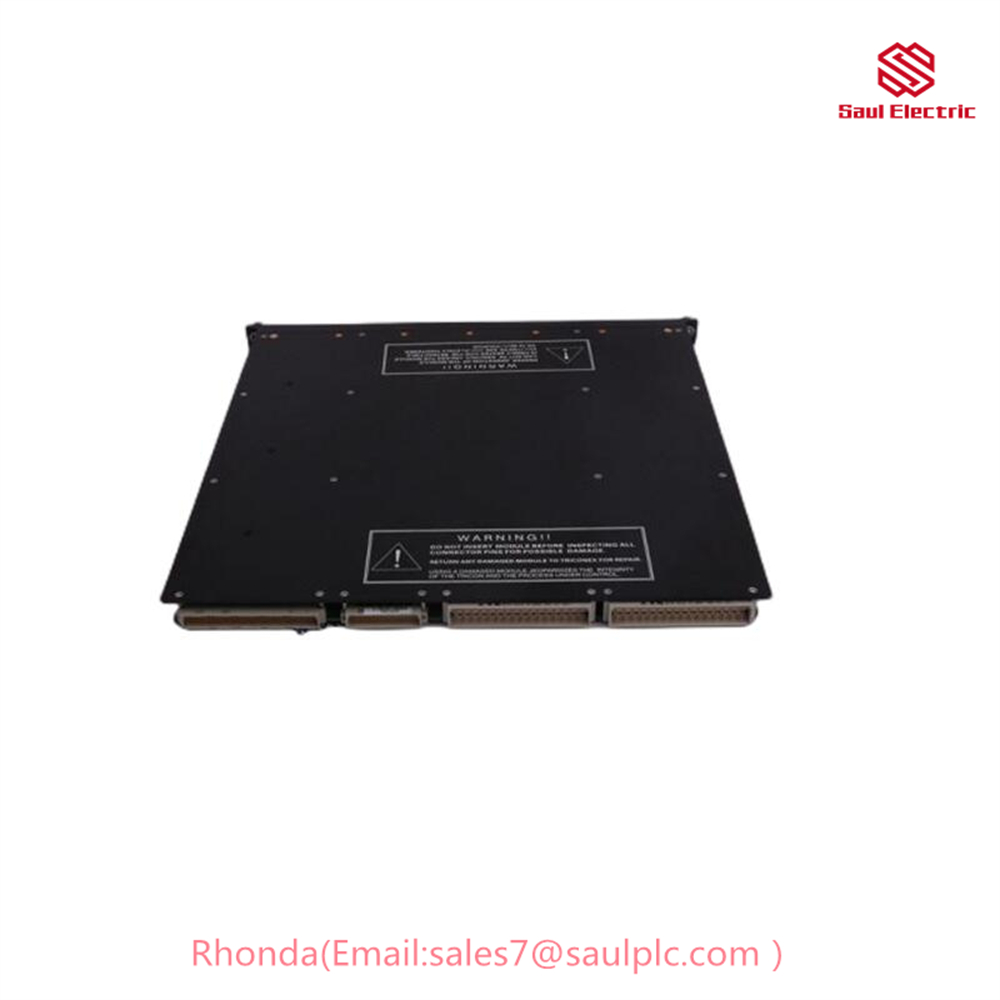

Product No. : 3703E
Product type : Isolated Analog Input
Voltage : 0-5V or 0-10V1, + 6%
Isolated Points : Yes
Input Update Rate : 50 ms
Resolution : 12 bits
Accuracy : < .15% of FSR,from 0° to 60°C
Input Resistance (load) : 30 MO (DC), min.
Power-Off Resistance : 30 MO (DC), min.
Common Mode Rejection : -90 dB @ 60Hz, min.-100 dB @ DC, min.
Common Mode Range : +200V peak
Leg-to-Leg Isolation : 20 KO, typical
Normal Mode Rejection : @ 8Hz -3 dB @ 60Hz -17 dB @ 120Hz -23 dB
Input Overrange : 150 VDC/115 VAC
Protection : Continuous
Current Range : 0-20 mA,250 O shunt for 5V 500 O shunt for 10V
Shipping Weight : 4 Kg
TRICONEX TRICON specializes in manufacturing safety instrument systems such as Tricon safety instrument systems and ESD systems
Triconex Safety System
Pepperl+Fuchs provides solutions specifically designed for Schneider Electric Triconex Safety System – Tricon TMR. Our termination board solutions are preferred by Triconex as a fully tested and approved solution. This includes the K-System (KFD) or the space-saving H-System (HIC/HID) barriers and then respective termination boards that provide the densest solution in the market when space for intrinsic safety barriers is a critical issue.
If you need detailed technical information, welcome to contact us.
If you have a question about how to make an offer, or about an offer you’ve made;
feel free to contact us, and one of our Customer Support Reps will be happy to assist you.
