Schneider XBTFC044310 MAGELiS Operator Terminals with Graphic Screen Deliver Fast

If you need it, we can solve your missing part or exchange it. Welcome to inquire! We will provide you with the highest quality service!

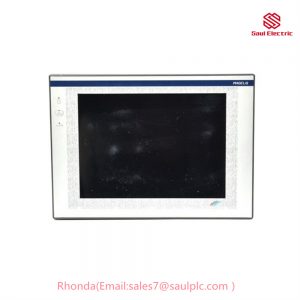

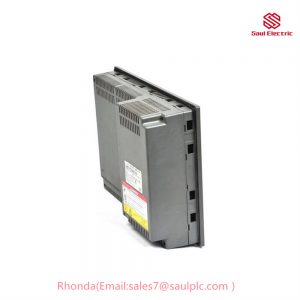

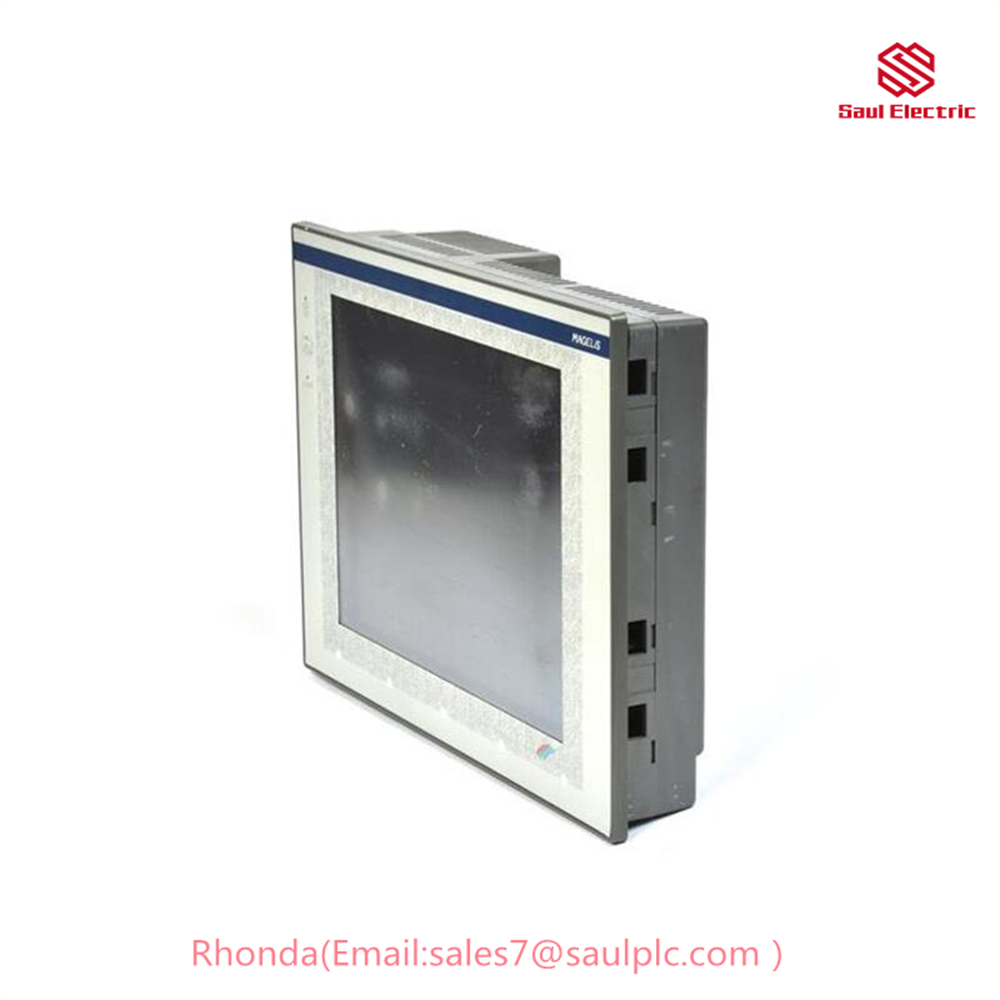

→Schneider XBTFC044310 MAGELiS Operator Terminals with Graphic Screen

This unit has cosmetic damage to the touch screen; however, this will not prevent it from functioning properly.

Configuration:
• Tough-Sensitive Screen
• Pentium Processor
• Type and Size of Screen: Color, 10.4 in. (264 mm)
• Supply Voltage: 24 VDC

Features:
Displays Animated Synoptic Screens, Control, Modification of Numeric and Alphanumeric Variables
Displays a Service Line (Status and Alarm Bar) with The Current Time
Dynamic Visualization of Operating Data (Setpoints, Measurements, Recipes, Maintenance Messages) and Process Errors
Control via Dynamic or Static Function Keys
Scaling Analog Variables
Real-Time and Trending Curves
The Schneider Electric / AEG / Telemecanique XBTF MAGELiS Operator Terminals with Graphic Screen are manufactured with 5 or 10 in. (127 or 254 mm) screens, in monochrome or color, with a keypad or a touchsensitive screen. XBTF graphic screen terminals are specially designed for operator dialogue graphic functions. All MAGELiS graphic screen terminals have the same user interface: static and dynamic function keys, service keys, alphanumeric keys.

MAGELiS graphic screen terminals can be configured using the same XBTL100 software in a Windows environment. XBTL100 software provides graphic screen terminals with a library of animated graphic objects such as bargraphs, volume indicator meters, selectors, potentiometers, and trending curves. The variable for animating an object can be selected directly from a list of symbols given by the PL7 or CONCEPTTM software. The application program for the graphic terminals is stored on a PCMCIA memory card.

XBTF graphic screen terminals communicate with PLCs via an integrated point-to-point or multidrop serial link, or via a field bus with a PCMCIA Type III card.
