Schneider 140CPU53414B Modicon Quantum Processor Deliver Fast

If you need it, we can solve your missing part or exchange it. Welcome to inquire! We will provide you with the highest quality service!

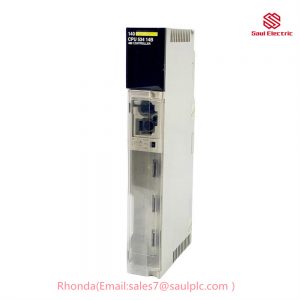

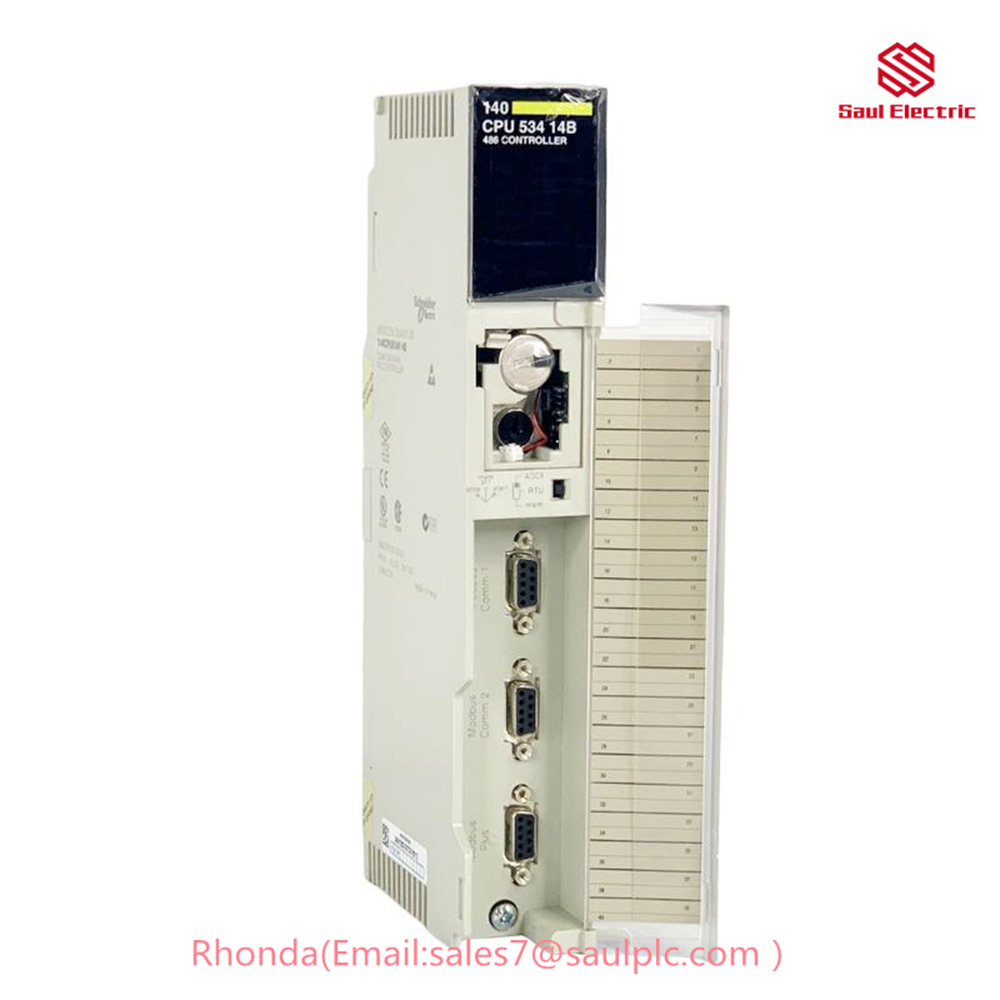

→Schneider 140CPU53414B Modicon Quantum Processor

Part Number:140CPU53414B
Manufacturer:Schneider Electric
Model :140CPU53414B
Type:CPUs
Execution time for 1 K instruction:2.49 65 % Boolean and 35 %
Bus current requirement 1250 mA

Schneider Electric 140CPU53414B Overview
The 140CPU53414B is a Modicon Quantum processor for use with ProWorx 32 or Concept software. It includes a mathematical coprocessor and an internal memory of 2972 kB RAM. This unit is functionally identical to the non-B version, with some considerations. If you are using the CPU in a Hot Standby setup, you must use with two non-A, two A, or two B versions. The B version also requires a new flash exec, which is not interchangeable with the A and non-A flash executives.

Features
The front panel has a slide switch which is used to select the comm parameter settings for the Modbus RS232 ports on the 140CPU53414B. There are three options, the top is for ASCII functionality, the middle is for RTU functionality, and the bottom allows you to assign comm parameters to the port. The CPU hardware defaults to bridge mode when the switch is set to RTU or ASCII mode. The processor uses Intel 486 DX4. The clock speed is 100 MHz. The processor is onboard as well as a watchdog timer that is adjustable. This module has internal memory, 2.7 Mb max.

Advantages
The Modicon 140CPU53414B comes with two communication ports. The first communication port are the two Modbus (RS-232). The communication port is the one Modbus Plus (RS-485). The required bus current is 1250 ma. Any combination of NOM, NOC, NOE, PTQ, PDP, MV1 or MMS modules can be used to but a max of 6 at any time. The Modicon 140CPU53414B comes with a key switch. The CPU module 140CPU53414B can support up to 3 modbus network.

Invensys Foxboro: I/A Series system, FBM (Field Input/Output Module) sequential control, trapezoidal logic control, accident memory processing, digital to analog conversion, input/output signal processing, data communication and processing, etc.
Invensys Triconex: Redundant fault-tolerant control system, the most modern fault-tolerant controller based on Triple Modular Redundancy (TMR) structure.
Westinghouse: OVATION system, WDPF system, WEStation system spare parts.
Rockwell Allen Bradley: Reliance Ryan, SLC500/1747/1746, MicroLogix/1761/1763/1762/1766/1764, CompactLogix/1769/1768, Logix5000/1756/1789/1794/1760/1788, PLC-5/1771/1785, etc.
Schneider Modicon: Quantum 140 series processor, control card, power module, etc.
ABB: DCS and PLC system modules, high-voltage inverter IGCT/IGBT system module cards, industrial robot spare parts DSQC series, Bailey INFI 90, etc.
Siemens: Siemens MOORE, Siemens Simatic C1, Siemens CNC system, etc.
Motorola: MVME 162, MVME 167, MVME1772, MVME177 and other series.
XYCOM: I/O, VME board, processor, etc.
GE FANUC: Various spare parts such as modules, cards, drives, etc.
Yaskawa: servo controller, servo motor, servo driver.
Bosch Rexroth: Indramat, I/O module, PLC controller, drive module, etc.
Woodward: SPC valve position controller, PEAK150 digital controller.

Our Advantages:

We can respond globally and deliver quickly.
A strong supply network ensures that when manufacturers’ equipment malfunctions or stops
Able to respond promptly and provide assistance
Provide multilingual services
Original accessories from various brands
One stop procurement for enterprise customers
Original parts from various brands, including leading manufacturers, with reliable quality and a complete range.
