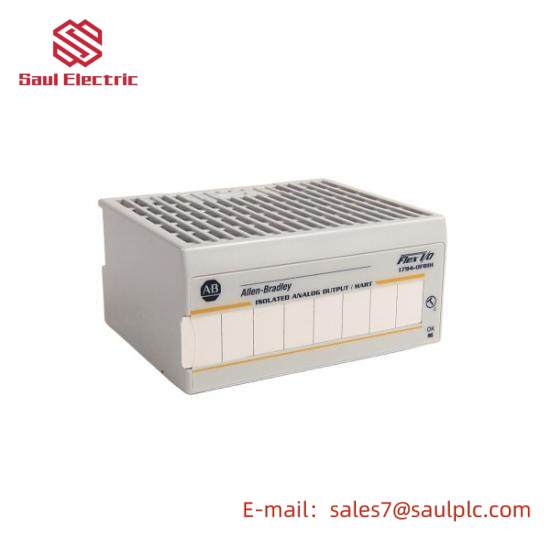

Rockwell Automation 1794-OE8H/B Flex Analog Output Module

Number of Channels:8

Output Type:Analog

Signal Range:4 to 20 mA / 0 to 10 V

Communication Protocol:Modbus-RTU

Power Consumption:Less than 2 W

Operating Temperature:-40°C to +70°C

Enclosure Type:IP20

Dimensions (WxHxD):139mm x 139mm x 105mm

Connector Type:Terminal Block

Connection Type:Bus Terminal

Operating Voltage:24V DC

Input Current:Typically < 1mA

Load Compatibility:Up to 300 Ohms

    The Allen-Bradley 1794-OE8H/B is a highly versatile and reliable component, specifically engineered for applications requiring precise analog signal control. This module boasts an 8-point output capacity, ensuring flexibility in managing multiple signals simultaneously.

    With its advanced digital-to-analog conversion technology, it delivers exceptional accuracy and repeatability, making it ideal for demanding industrial processes. The 12-bit resolution ensures smooth and fine-tuned control, essential for high-performance applications.

    Engineered for robustness and reliability, the module operates within a wide temperature range of -20°C to +70°C, ensuring stable performance under various environmental conditions. Its low power consumption minimizes energy use and reduces operational costs.

    Featuring an RS-485 Modbus communication interface, the Allen-Bradley 1794-OE8H/B seamlessly integrates with existing control networks, facilitating easy setup and connectivity with other devices. The compact size and lightweight design make it convenient for installation in space-constrained areas.

    This module comes equipped with high-quality relays rated for 250V AC or 30V DC, with a current rating of 10mA, ensuring safe and efficient operation. Its durability and compatibility with a wide range of systems make it a preferred choice for enhancing automation capabilities in industries worldwide.
