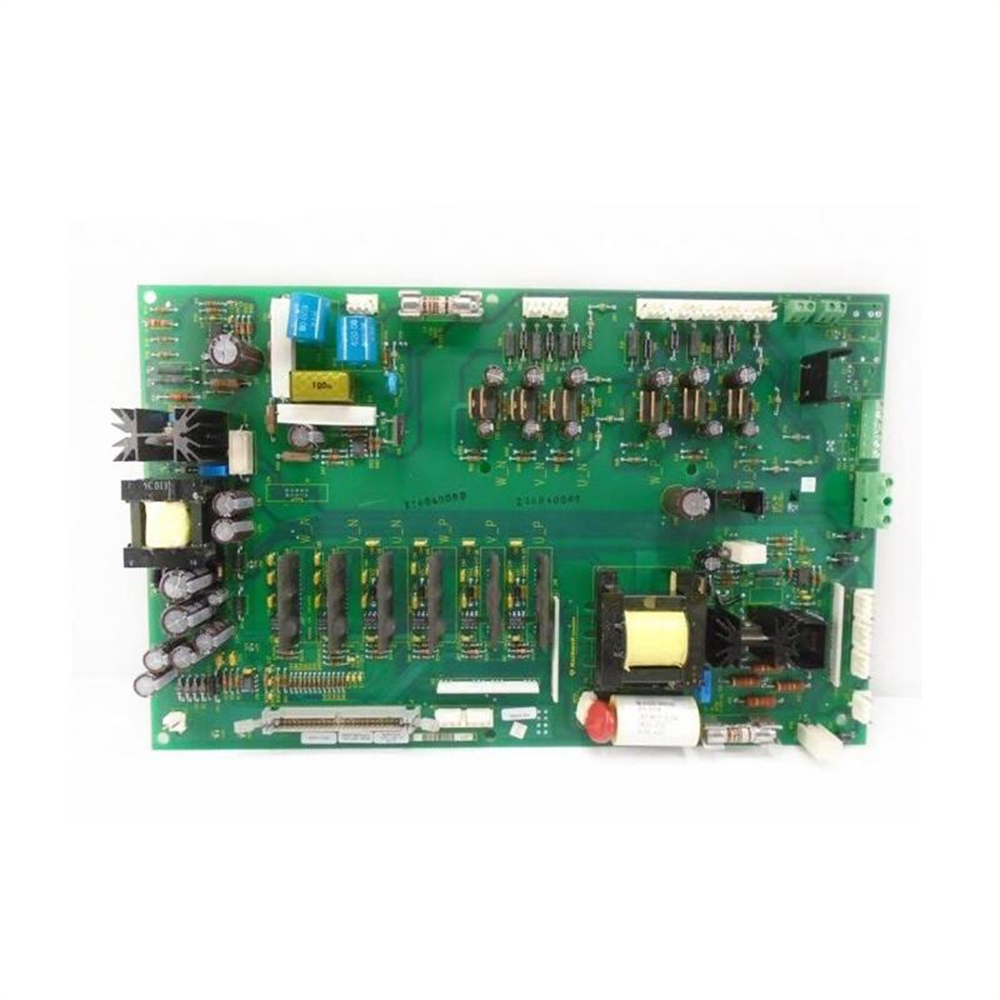

The ROCKWELL 1336-BDB-SP31D is a Gate Driver Circuit Board manufactured by Allen-Bradley/Rockwell Automation. It is a component of the Allen-Bradley 1336 PLUS, PLUS II, FORCE, IMPACT & REGEN Adjustable Speed Drives. The 1336-BDB-SP31D is used for 460V AC motors with horsepower ratings of 125 to 150.
The board is responsible for controlling the gate signals of the IGBTs (Insulated Gate Bipolar Transistors) in the drive. The IGBTs are the power transistors that switch the motor current on and off. The gate driver circuit board must provide enough current to turn on the IGBTs quickly and efficiently. It must also protect the IGBTs from damage caused by overcurrent or overvoltage.
The 1336-BDB-SP31D is a surface-mount circuit board that measures approximately 5.5 inches by 4.5 inches. It contains a number of electronic components, including resistors, capacitors, transistors, and integrated circuits. The board is also equipped with a heat sink to help dissipate the heat generated by the IGBTs.
