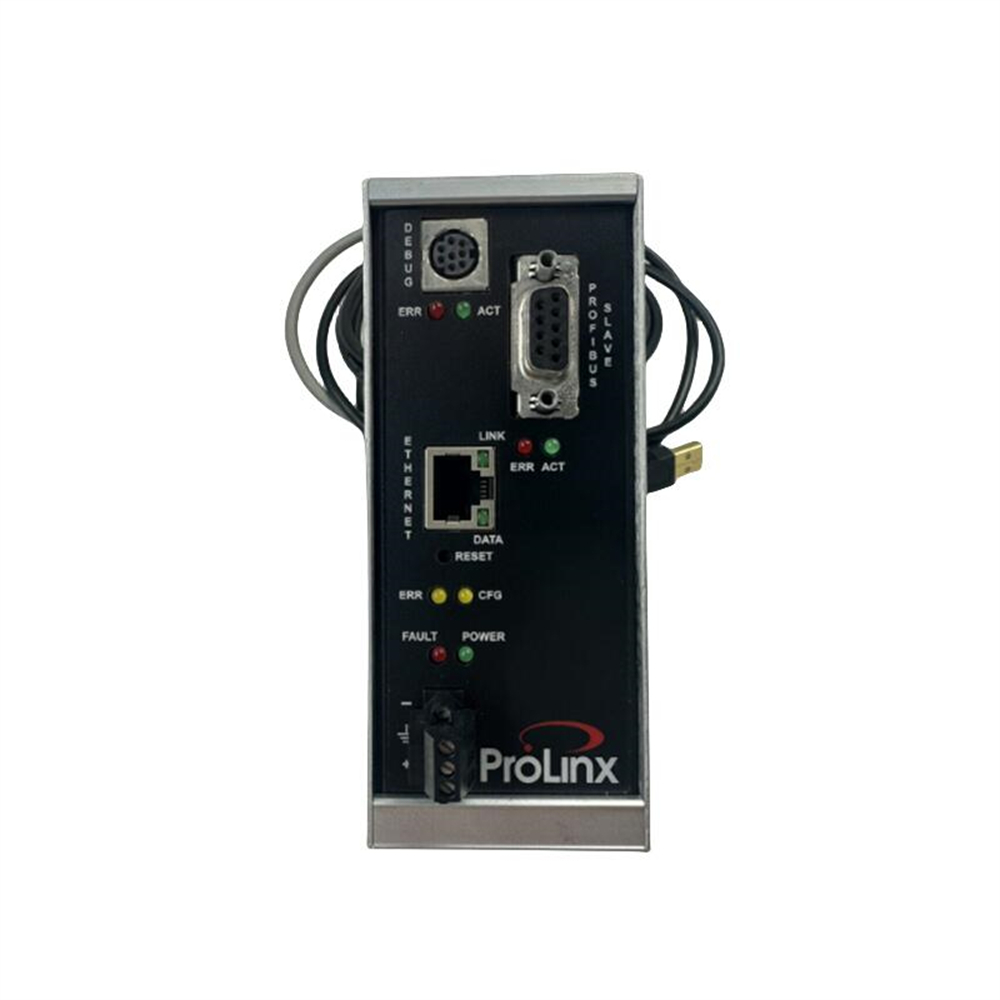

The ProSoft 5205-DFNT-PDPS is an EtherNet/IP to PROFIBUS DP Slave Gateway that provides a powerful connection between devices on an EtherNet/IP network and a PROFIBUS master device. This stand-alone DIN-rail mounted protocol gateway provides one Ethernet port and one PROFIBUS DP Slave configurable DB9F port.
Key Features
- Supports Explicit Messaging implementation of the EtherNet/IP protocol
- User-configurable as both a Client and a Server on the EtherNet/IP port
- Supports the PROFIBUS V0 Slave implementation for data transfer between the ProLinx module and Siemens PLCs or other hosts
- User-configurable data mapping and DP port operation
Applications
The ProSoft 5205-DFNT-PDPS is suitable for a wide range of applications in various industries, including:
- Manufacturing
- Oil and Gas
- Electrical Power
- Food Processing
Technical Specifications
- Ethernet port: 10/100BaseTX
- PROFIBUS DP Slave port: DB9F configurable
- Data rates: Up to 12 Mbps (EtherNet/IP) and up to 12 Mbps (PROFIBUS DP)
- Power supply: 12-24 VDC
- Operating temperature: -25°C to 60°C
- Dimensions: 119 mm x 76 mm x 25 mm (4.7″ x 3″ x 1″)
- Weight: 0.2 kg (0.5 lb)
