NI PXIe-7961 PXI FPGA module Guaranteed Quality

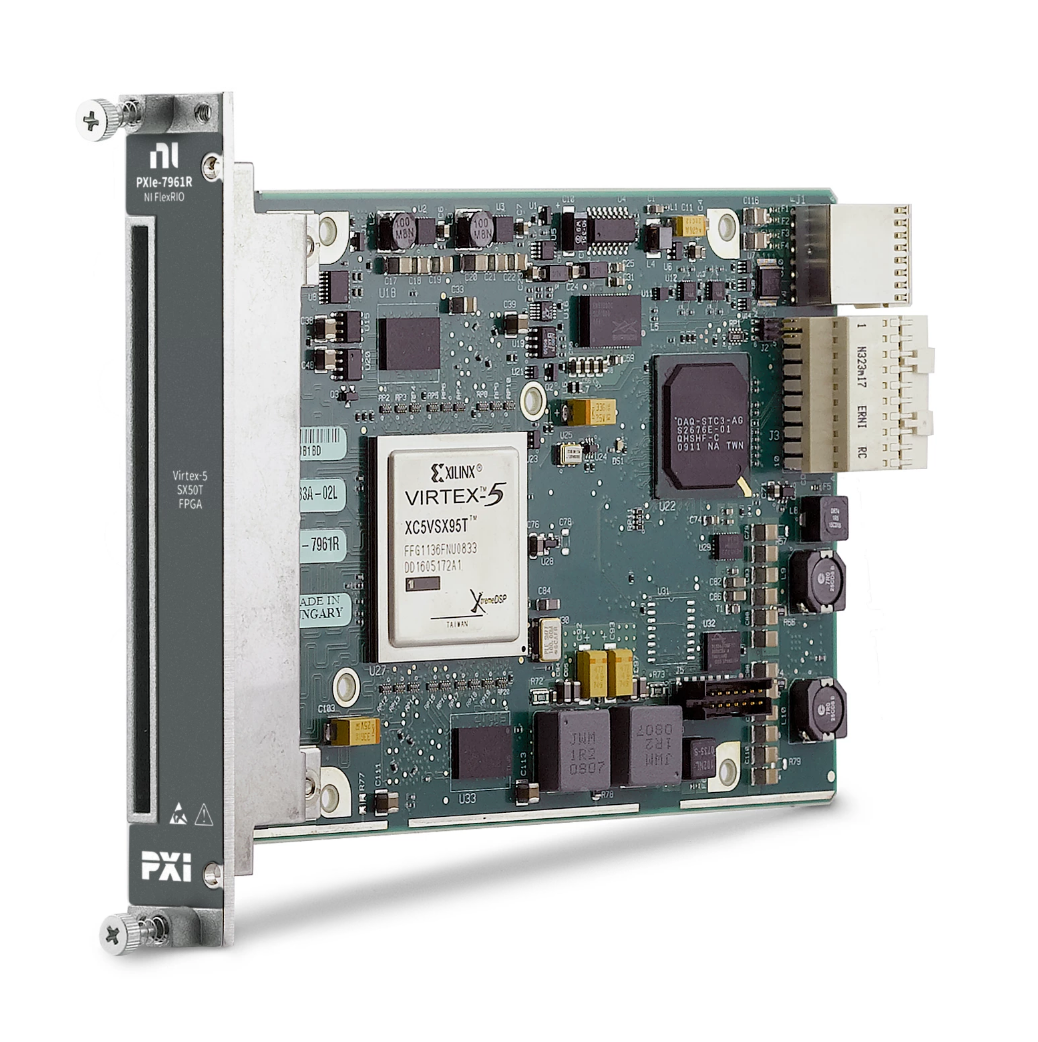

The National Instruments PXIe-7961 is a high-performance FlexRIO FPGA module that provides reconfigurable I/O for custom timing and triggering applications. It features a Xilinx Virtex-5 SX50T FPGA with 4752 kb of block RAM, 8160 logic blocks, and a clock speed of up to 550 MHz. The PXIe-7961 also includes four SMA connectors for analog I/O, 32 differential digital I/O lines, and two LVDS clocks.

The PXIe-7961 is ideal for a variety of applications, including:

• Prototyping and developing custom instrumentation
• High-speed data acquisition and generation
• Real-time signal processing and control
• Custom communication and interface protocols

The PXIe-7961 is supported by LabVIEW FPGA, which provides a graphical programming environment for developing custom FPGA designs. LabVIEW FPGA makes it easy to configure the PXIe-7961’s I/O, timing, and triggering settings without writing any hardware description language (HDL) code.
