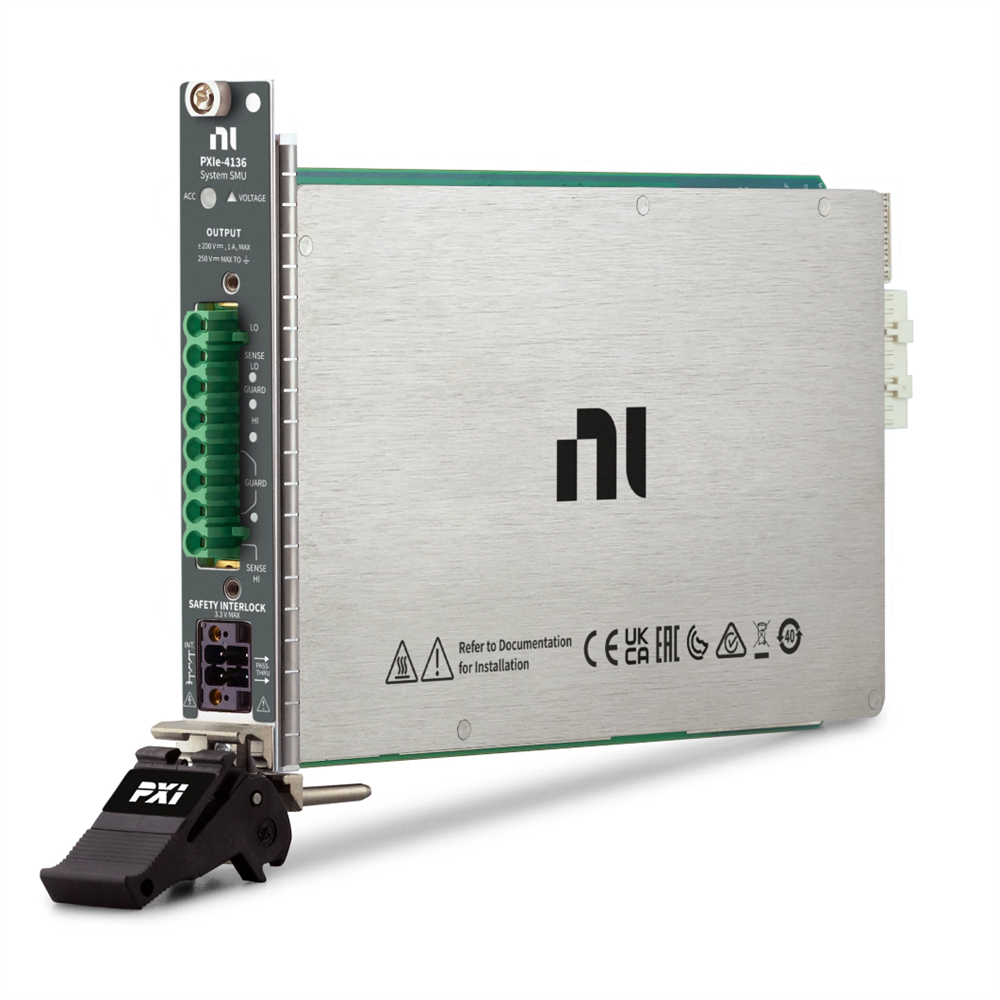

The National Instruments PXIe-4136 is a high-performance, four-channel source measure unit (SMU) designed for a wide range of applications, including semiconductor characterization, materials testing, and device development. It offers a variety of features that make it ideal for demanding test and measurement applications, including:
-
- High-precision DC voltage and current sourcing and measurement (up to 10 A and 100 V)
- Four independent channels that can be operated simultaneously or in series
- Fast pulse sourcing and measurement (up to 1 µs rise time)
- Low-noise performance (down to 10 µVrms)
- Built-in protection circuitry to prevent damage to the device under test
The PXIe-4136 is a modular instrument that is designed to be used in a PXI Express chassis. It is compatible with a variety of PXI controllers and software, including NI LabVIEW, NI LabWindows/CVI, and NI TestStand.
Here are some additional details about the PXIe-4136:
- Number of channels: 4
- DC voltage range: -10 V to 100 V
- DC current range: -10 A to 10 A
- Pulse voltage range: -20 V to 120 V
- Pulse current range: -20 A to 20 A
- Rise time: 1 µs
- Fall time: 1 µs
- Noise: 10 µVrms
- Dimensions: 2.0 cm x 13.0 cm x 21.6 cm (0.8 in. x 5.1 in. x 8.5 in.)
- Weight: 1.2 kg (2.6 lb)
