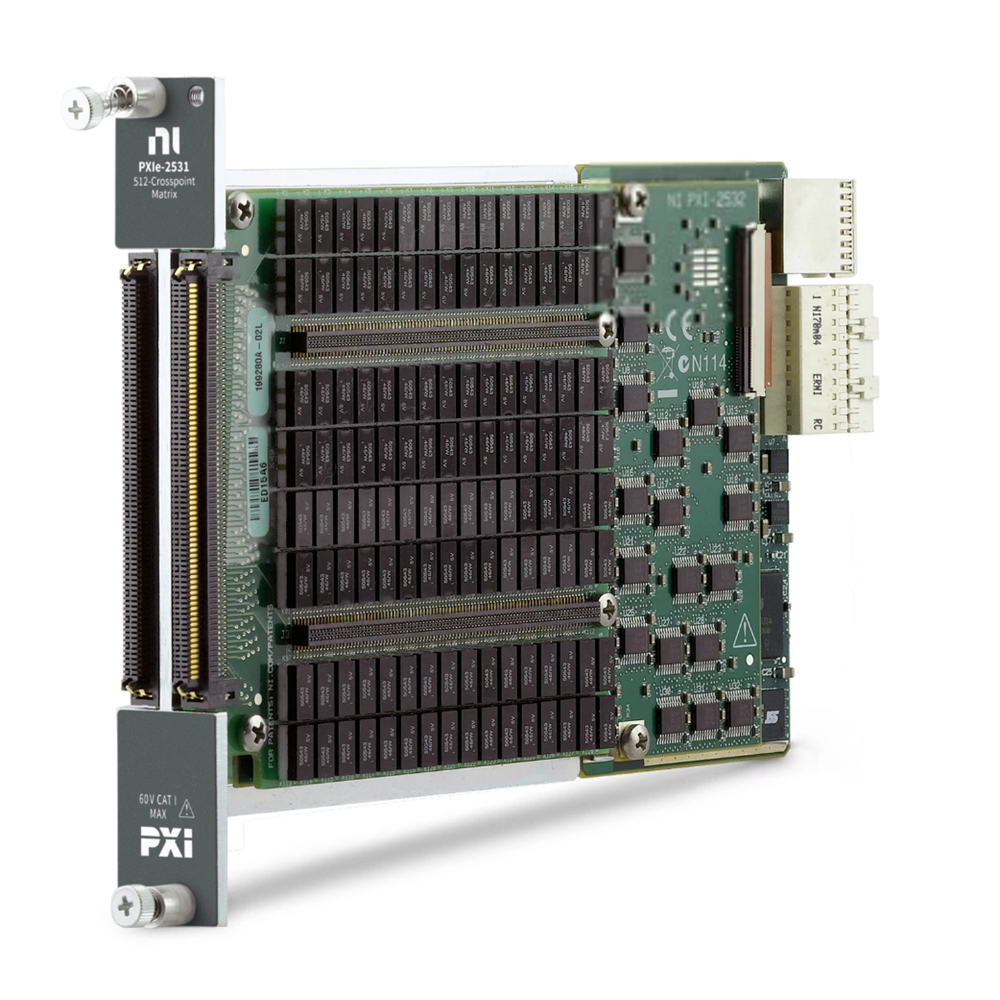

The National Instruments PXIe-2531 is a high-density PXI matrix switch module, designed for high-channel-count automated test systems. It features compact reed relays with switching speeds up to 2,000 cycles/s, making it ideal for low-current, high-speed switching applications.
Here are some key specifications of the PXIe-2531:
- Topology:
- 1-wire 4 × 128 matrix
- 1-wire 8 × 64 matrix
- 1-wire dual 4 × 64 matrix
- 1-wire dual 8 × 32 matrix
- Each configuration supports immediate and scanning operation modes.
- Switching speed: Up to 2,000 cycles/s
- Maximum voltage: 300 V (DC)
- Maximum current: 1 A (DC)
- Isolation: 500 V (DC)
- Number of relays: 512
- Dimensions: 3U PXI slot
The PXIe-2531 is commonly used in applications such as:
- Semiconductor test systems
- Power electronics test systems
- Aerospace and defense test systems
- Industrial automation
