NI PXI-7952 PXI FPGA module Guaranteed Quality

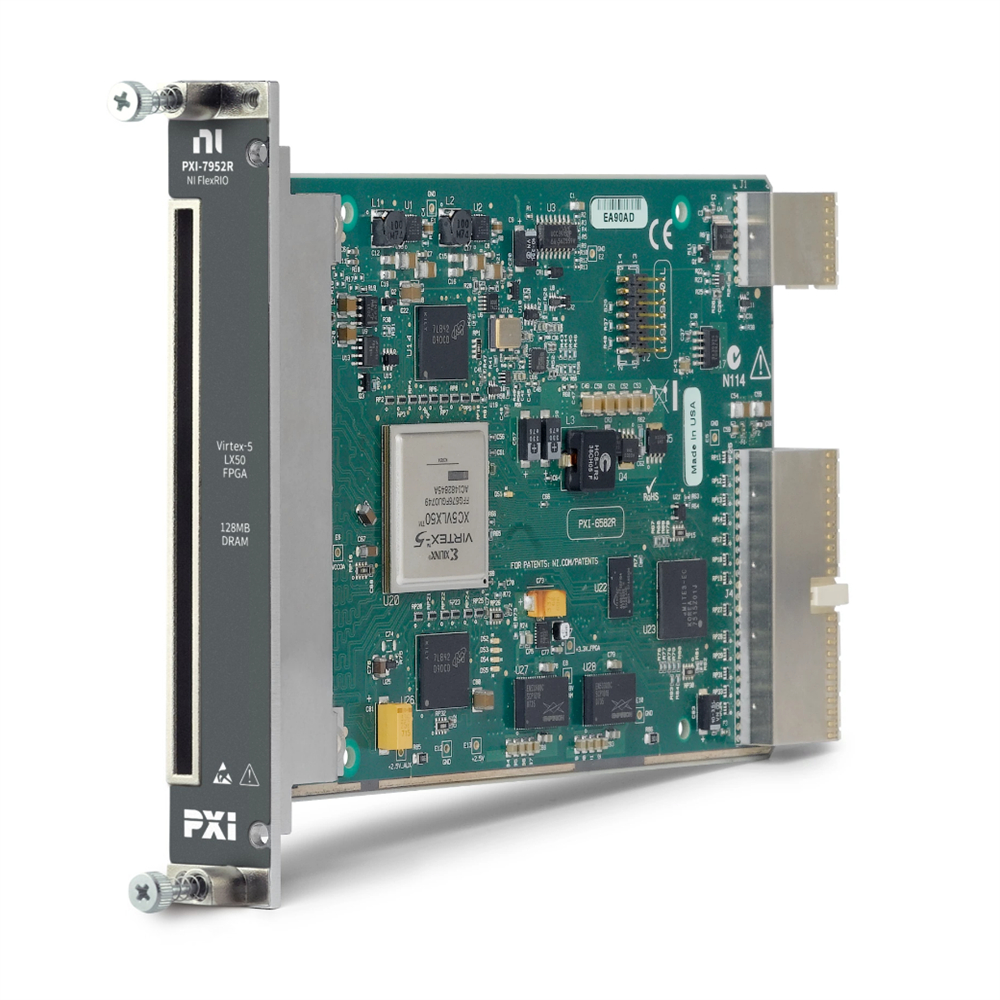

The National Instruments PXI-7952 is a PXI Express FPGA module that provides flexible, customizable I/O for LabVIEW FPGA. It includes a Xilinx Virtex-5 LX50 FPGA and 128 MB of DRAM. The PXI-7952 can be paired with FlexRIO adapter modules to offer a wide variety of high-performance analog and digital I/O options.

Here are some of the key features of the PXI-7952:

• Xilinx Virtex-5 LX50 FPGA with 307,200 logic cells
• 128 MB of DDR2 SDRAM
• 132 single-ended I/O lines configurable as 66 differential pairs
• Support for FlexRIO adapter modules
• Clock speeds up to 667 MHz
• Single-cycle timed loops
• Arbitration support
• FPGA base clocks

The PXI-7952 is a versatile FPGA module that can be used for a wide variety of applications, including:

• Custom signal processing
• High-speed data acquisition
• Motor control
• Image processing
• Machine vision
• Communications
