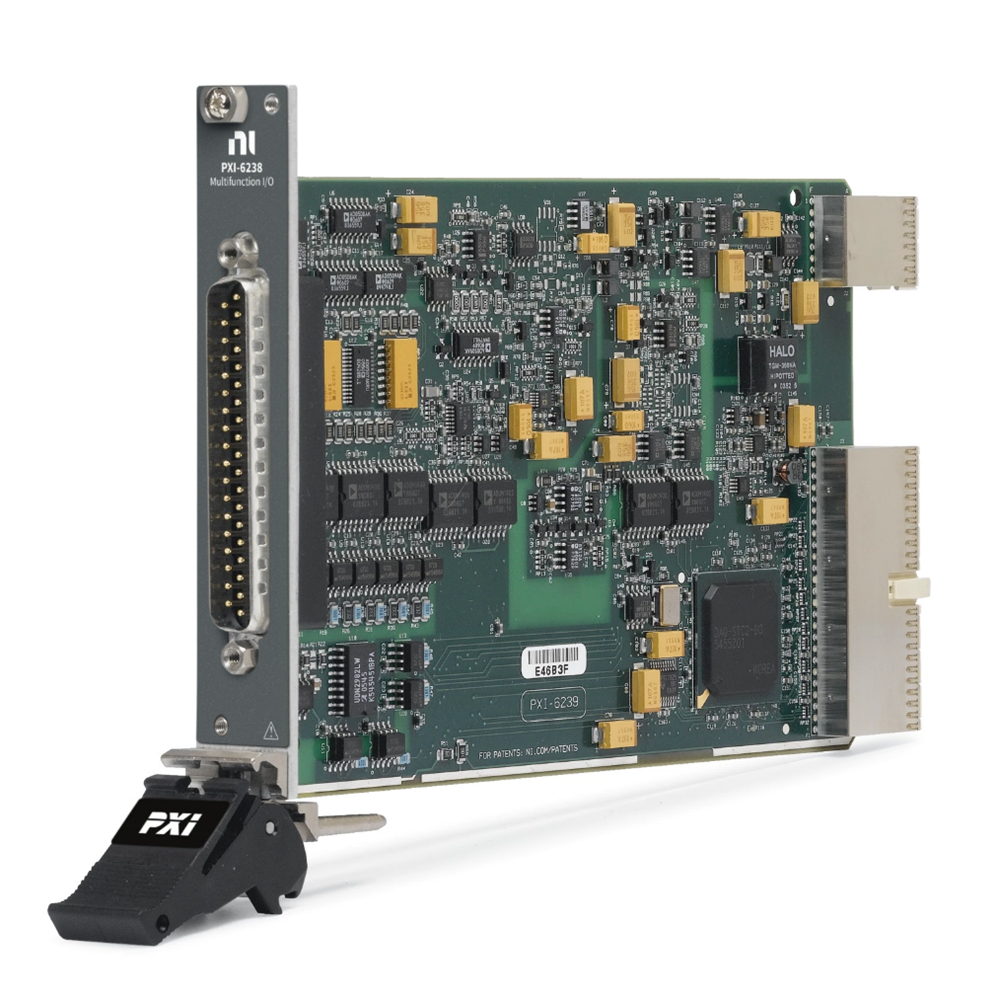

NI PXI-6238 Ultifunction data acquisition module Guaranteed Quality

The National Instruments PXI-6238 is a high-performance multifunction data acquisition (DAQ) module for the PXI Express bus. It offers a combination of features that make it suitable for a variety of demanding test and measurement applications. Here’s a breakdown of its key capabilities:

Analog Inputs:

• 16 differential or 32 single-ended channels
• Up to 500 kS/s sample rate per channel
• 18-bit resolution
• Wide voltage range: ±10 V or ±20 V (selectable)
• Simultaneous sampling on all channels

Analog Outputs:

• 2 differential or 4 single-ended channels
• Up to 500 kS/s update rate per channel
• 16-bit resolution
• Wide voltage range: ±10 V

Digital I/O:

• 32 lines of programmable digital I/O
• High-speed timing and triggering capabilities
