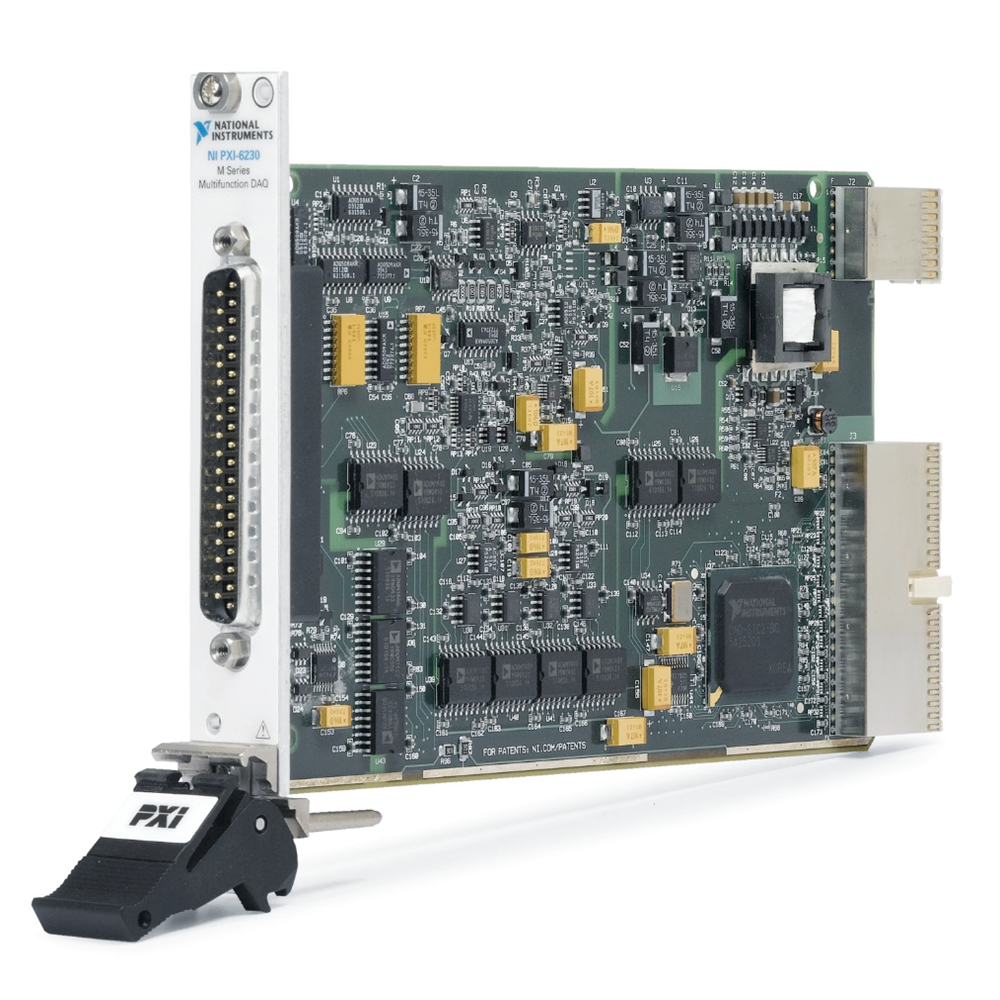

NI PXI-6230 Multifunction data acquisition module Guaranteed Quality

The National Instruments PXI-6230 is a multifunction data acquisition (DAQ) module for PXI Express systems. It provides eight 16-bit analog inputs, four analog outputs, six digital inputs, four digital outputs, two 32-bit counters/timers, and digital triggering. The PXI-6230 is ideal for test, measurement, control, and design applications in environments with high voltages and electrical noise.

The PXI-6230’s analog inputs have a maximum sampling rate of 250 kS/s and a resolution of 16 bits. The analog outputs have a maximum update rate of 1 MS/s and a resolution of 16 bits. The digital inputs and outputs are compatible with 5 V TTL/CMOS signals.

The PXI-6230’s two 32-bit counters/timers can be used for a variety of applications, such as pulse generation, event counting, and timing measurements. The module also supports digital triggering, which allows you to synchronize the PXI-6230’s operation with other devices.

The PXI-6230 is bank-isolated, which means that the analog and digital grounds are isolated from each other. This helps to protect the module from ground loops and other electrical noise problems.

Here are some of the key features of the National Instruments PXI-6230:

• Eight 16-bit analog inputs, 250 kS/s maximum sampling rate
• Four analog outputs, 1 MS/s maximum update rate
• Six digital inputs, four digital outputs
• Two 32-bit counters/timers
• Digital triggering
• Bank-isolated
