NI PXI-4065 PXI digital multimeter Guaranteed Quality

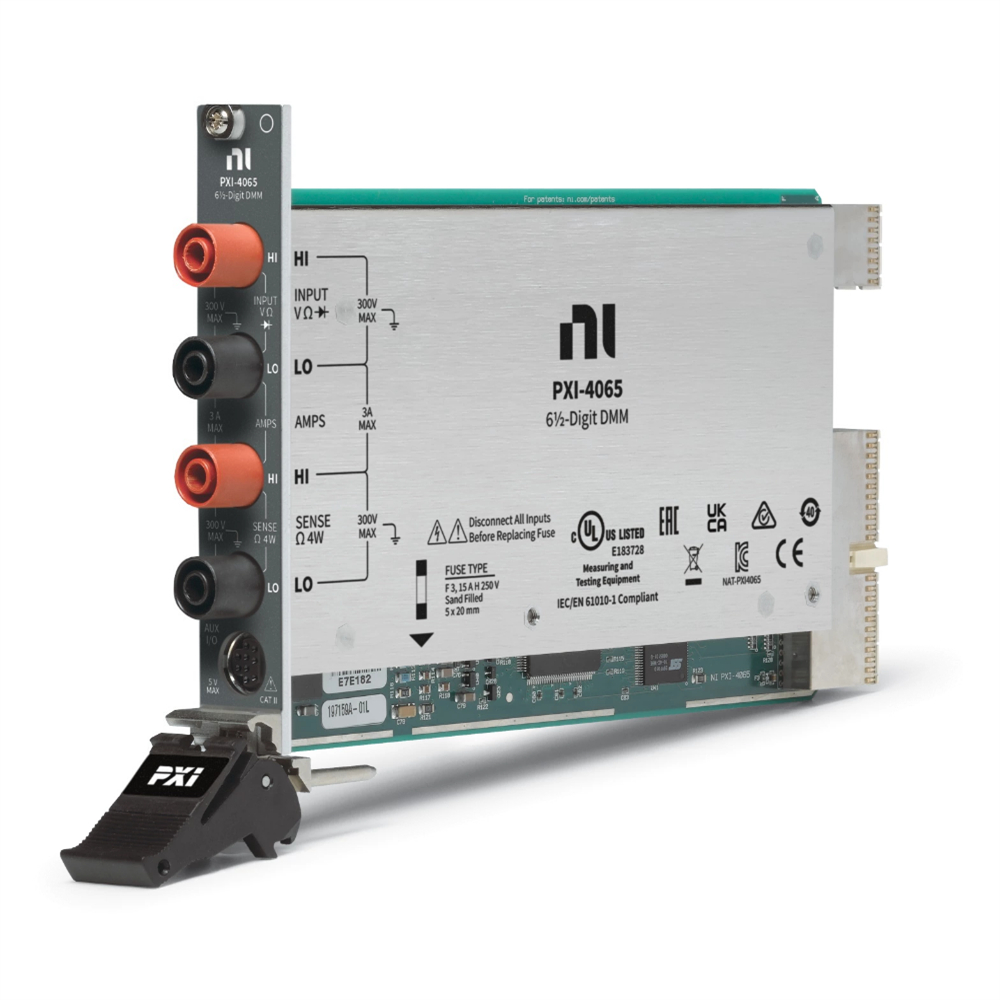

The National Instruments PXI-4065. It is a 6½-digit, 300 V PXI Digital Multimeter that can make AC/DC voltage, AC/DC current, and 2- or 4-wire resistance measurements, as well as diode tests.

The PXI-4065 is a high-precision, high-resolution instrument that is well-suited for a variety of applications, including:

• Semiconductor test
• Power electronics test
• Aerospace and defense
• Automotive
• Industrial automation

The PXI-4065 has a number of features that make it a good choice for these applications, including:

• High accuracy and resolution: The PXI-4065 has a basic accuracy of 0.003% and a resolution of 6½ digits.
• Wide measurement range: The PXI-4065 can measure AC and DC voltage up to 300 V, AC and DC current up to 10 A, resistance up to 100 MΩ, and capacitance up to 100 µF.
• Fast measurement speed: The PXI-4065 can make a single measurement in as little as 10 µs.
• Multiple measurement modes: The PXI-4065 can measure AC and DC voltage and current, resistance, capacitance, and frequency.
• Built-in signal conditioning: The PXI-4065 has built-in signal conditioning for voltage, current, and resistance measurements.
• SCPI compatibility: The PXI-4065 is compatible with the SCPI (Standard Commands for Programmable Instruments) protocol, which makes it easy to control it from a variety of test and measurement software applications.
