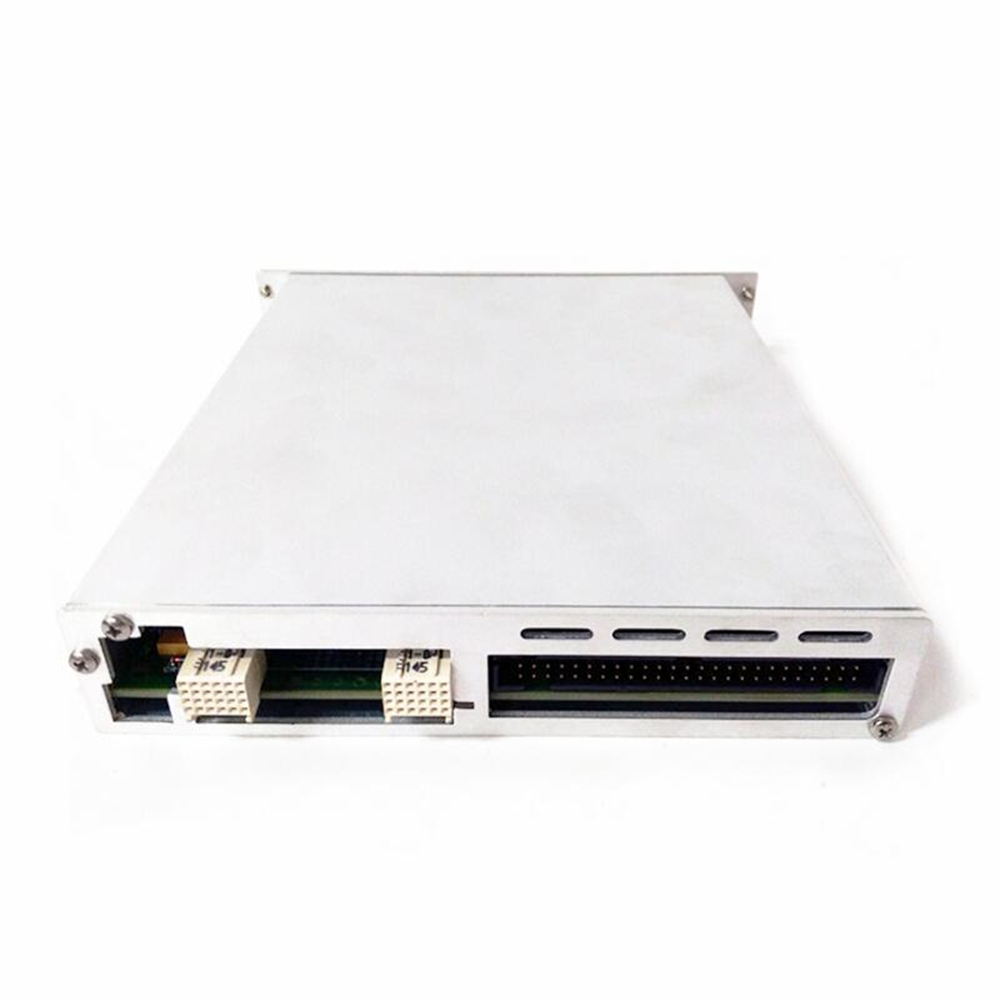

The National Instruments SCXI-1124 is a 6-channel isolated analog output module for the SCXI chassis. It provides a high-performance, flexible solution for generating analog voltages or currents for a variety of applications.
Key Features:
- 6 isolated analog output channels
- 12-bit resolution
- Voltage or current output per channel
- 250 Vrms working isolation per channel
- Software-programmable ranges
- Connect channels in series for output voltages up to ±60 V per module
Applications:
- ADAS and autonomous driving testing
- Industrial automation
- Process control
- Laboratory testing
- Data acquisition
Product Specifications:
- Number of Channels: 6
- Resolution: 12 bits
- Output Type: Voltage or current
- Isolation Voltage: 250 Vrms
- Output Ranges:
- Voltage: 0 to 5 V, ±5 V, 0 to 10 V, ±10 V
- Current: ±10 mA, 0 to 20 mA, 4 to 20 mA
- Accuracy: ±0.1% of full scale
- Settling Time: 10 µs to 0.01% of full scale
- Slew Rate: 2 V/µs
Software Compatibility:
The SCXI-1124 is compatible with a variety of software packages, including:
- NI LabVIEW
- NI C/C++
- NI MeasurementStudio
- NI LabWindows/CVI
Additional Resources:
- SCXI-1124 User Manual
- SCXI-1124 Datasheet
