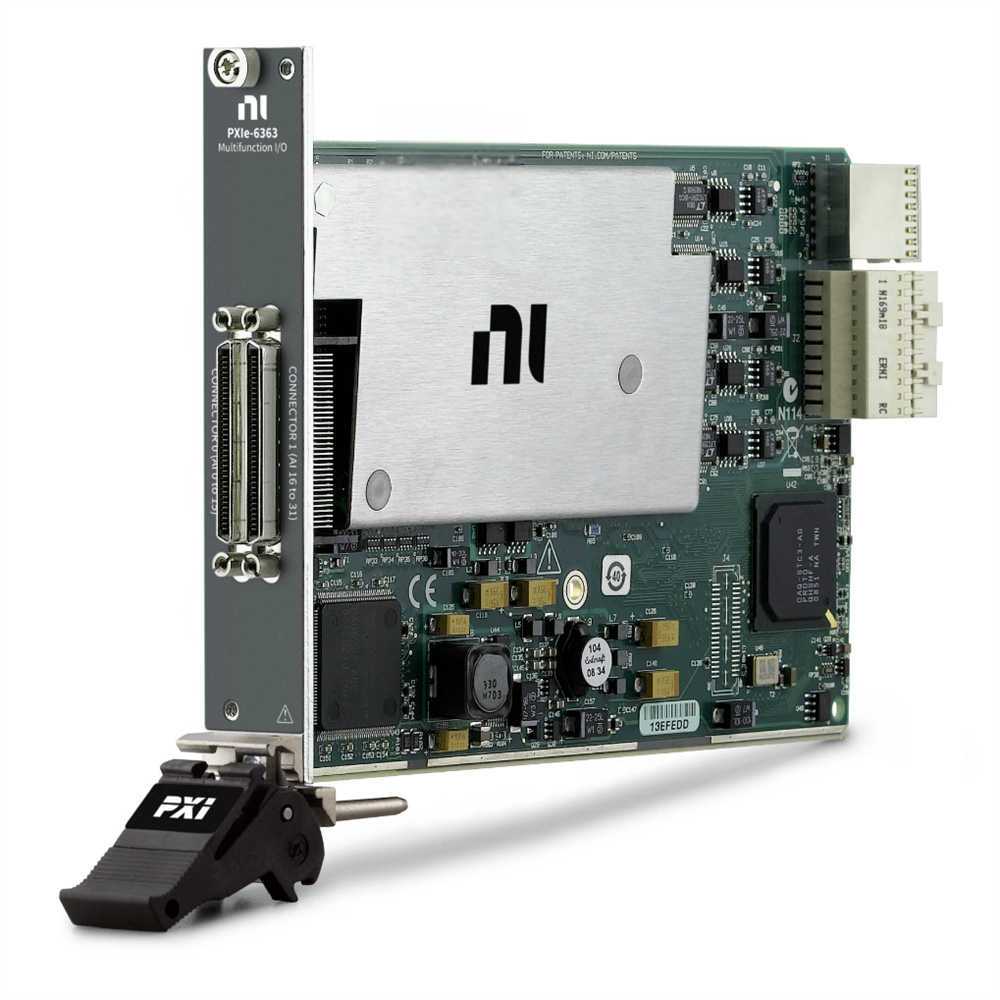

National Instruments PXIe-6363 PXI multifunctional I/O module Guaranteed Quality

The National Instruments PXIe-6363 is a multifunction data acquisition (DAQ) module that combines analog I/O, digital I/O, and four 32-bit counter/timers in a single PXI Express slot. It is well-suited for a broad range of applications, from basic data logging to control and test automation.

Here are some of the key features of the PXIe-6363:

• Analog I/O:
  • 16 channels of single-ended or 8 channels of differential analog input
  • 16 channels of single-ended analog output
  • Sample rate up to 2 MHz
  • Resolution up to 16 bits
• Digital I/O:
  • 32 lines of digital I/O
  • Programmable as inputs, outputs, or bidirectional
• Counter/timers:
  • Four 32-bit counter/timers
  • Can be used for PWM, encoder, frequency, event counting, and more
• Other features:
  • Onboard FIFO memory for buffering data
  • Software-configurable filters and triggers
  • Support for LabVIEW, C++, and other programming languages
