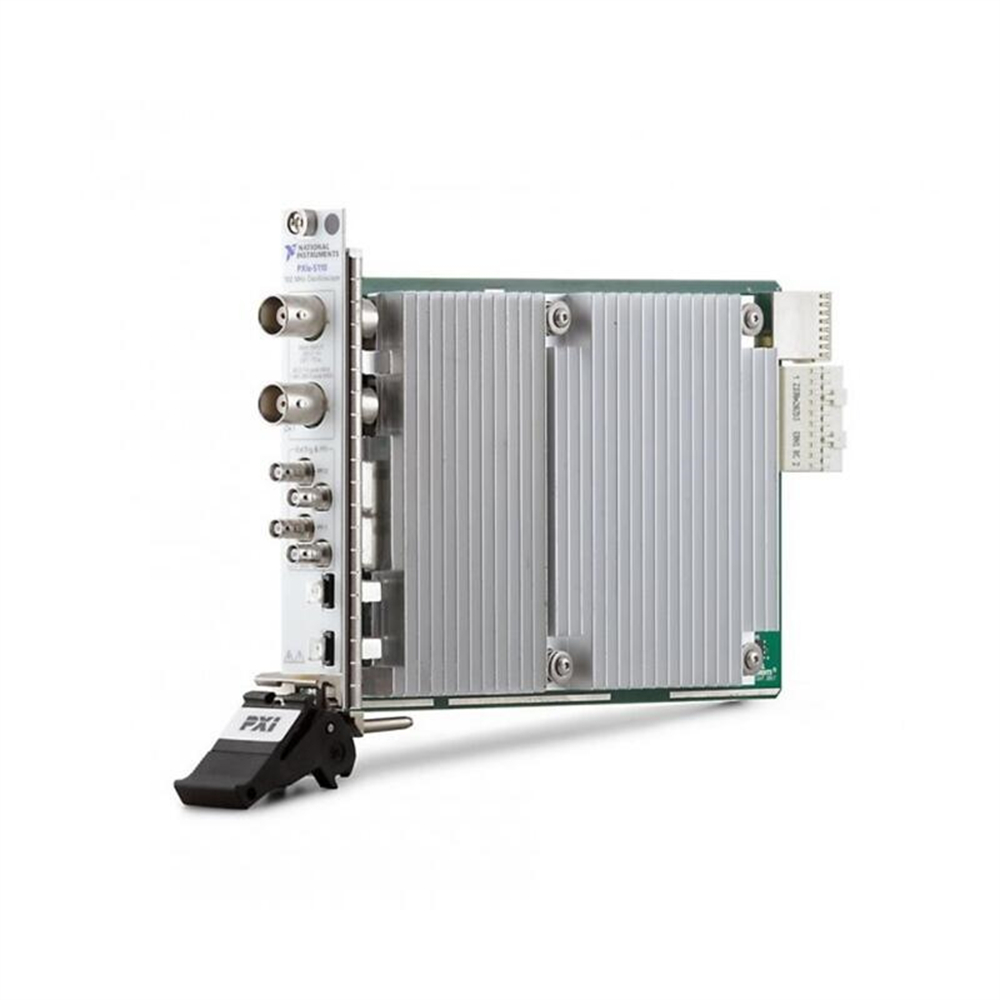

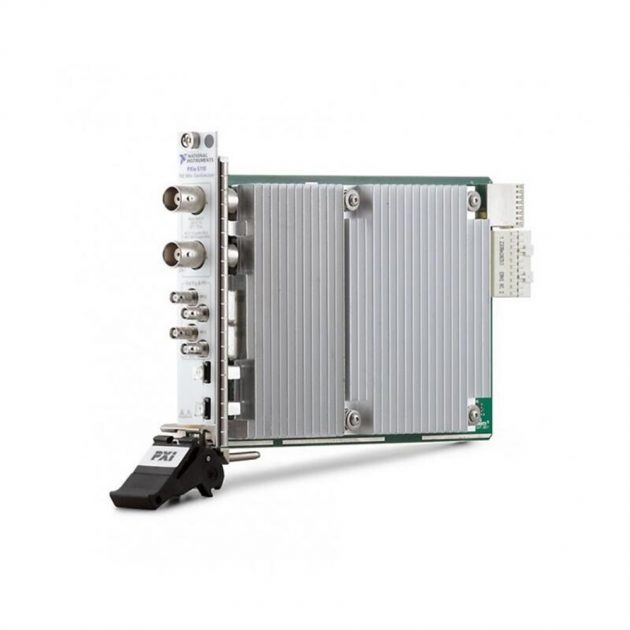

The PXIe-5110 features a number of advanced capabilities, including:
- Two 8-bit analog input channels with a wide range of input ranges and impedances
- 32 MB or 256 MB of onboard memory per channel for long record lengths
- Hardware triggering for precise capture of events
- Advanced triggering options such as edge, pulse width, and window triggering
- Built-in digital filters for noise reduction
- Multiple measurement and analysis functions such as cursors, automatic measurements, and histograms
The PXIe-5110 is controlled by a variety of software applications, including:
- NI LabVIEW
- NI LabWindows/CVI
- NI Measurement Studio
- Microsoft Visual C/C++
- .NET (C# and VB.NET)
Here are some additional details about the PXIe-5110:
- Sample rate: Up to 1 GS/s with one channel enabled, up to 500 MS/s with two channels enabled
- Bandwidth: 500 MHz
- Input ranges: 40 mV to 40 V
- Input impedances: 50 Ω and 1 MΩ
- Memory: 32 MB or 256 MB per channel
