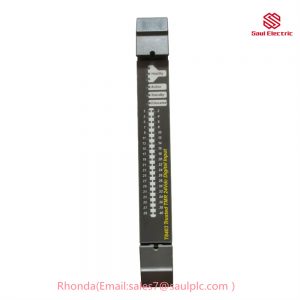

ICS TRIPLEX T8461 TMR 24/48 Vdc Digital Output Module(System Supply Voltage Range : 20 to 32Vdc
Circuit Type : Fault tolerant, fully triplicated with optional line
monitoring
Number of Outputs : 40 Channels
Independent Power Groups : 5 each of 8 outputs
Operational Output/Field Voltage Range : 18 to 60V dc
Output Voltage
Measurement Range : 0 to 60V dc
Maximum Withstanding : -1 to 60V dc
Output Current Rating ( Continuous ) : 0.75A per channel
6A per power group
Minimum On State Load Current : 25mA
Output Off State Resistance (effective leakage) : 33kP
Maximum capacitance Pre release 3.5: 30-55uF
Release 3.5: at least 3500uF at 0.75A
Flashing/pulsing current loads : Release 3.5 is recommended
Output On State resistance : 0.6P
Output Short Circuit Protection : Electronic (latching)
Channel to Channel Crosstalk : >-40dB
Power Consumption
Field Supply at 24V (0.75A per channel) : 18W
System Supply (24V) : 22W
Sustained Working : ±250V dc
Maximum Withstanding : ±2.5kV dc
