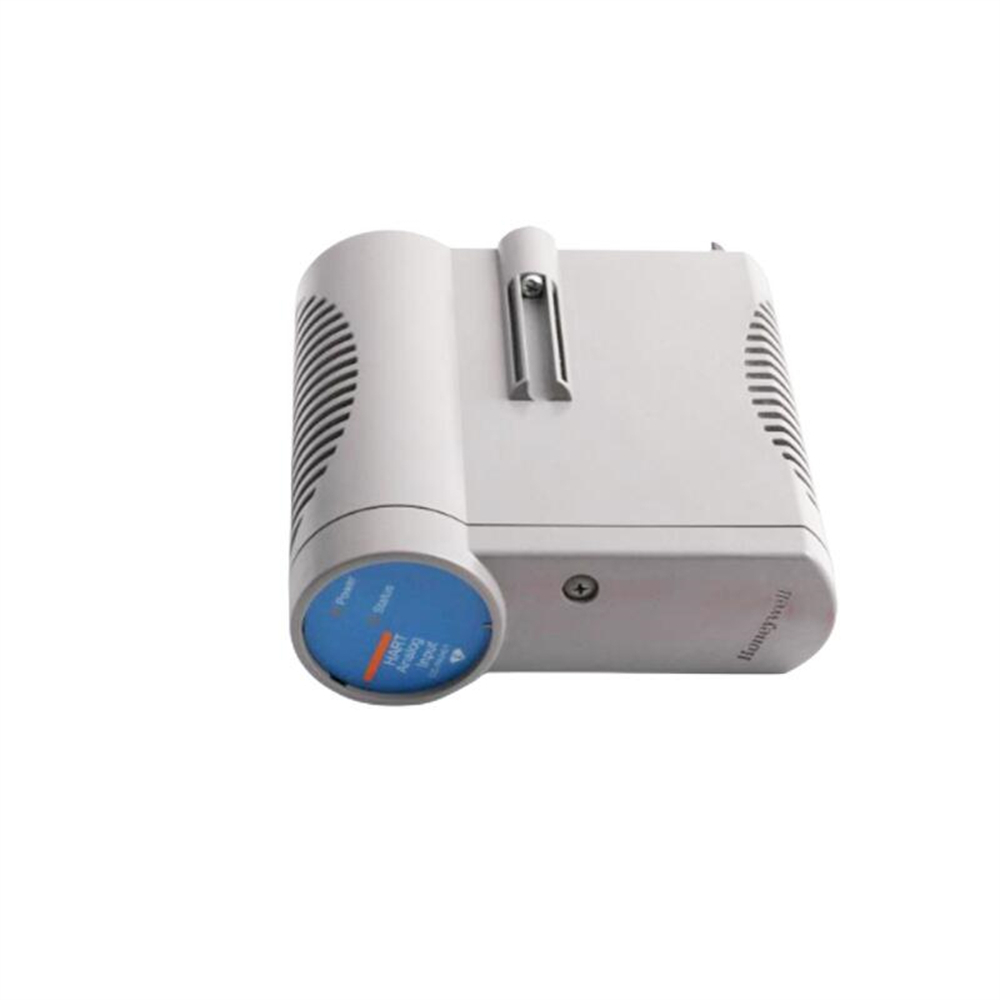

The Honeywell CC-PAIH01 is a High Level Analog Input Module with HART functionality. It is part of Honeywell’s Experion Series C I/O modules.
The CC-PAIH01 is designed to accept high-level current or voltage inputs from transmitters and other sensing devices. It has a number of features that make it suitable for a variety of industrial applications, including:
- Extensive self-diagnostics
- Optional redundancy
- Open Wire Detection
- Supplies non-incendive field power
- HART-capable, allowing for communication with intelligent devices
- Fast loop scan
The CC-PAIH01 has 16 channels, with 12 being single-ended and 4 being differential. It supports voltage inputs on channels 13 through 16. The module has an A/D converter with a resolution of 16 bits.
Here are some of the key specifications of the Honeywell CC-PAIH01:
- Input Type: Voltage, current (2-wire or self-powered transmitters)
- Input Channels: 16 (12 Single Ended / 4 Differential)
- Input Range: 0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4-20 mA (through 250 Ω)
- Input Impedance (voltage inputs): > 10 MΩ powered
- Input Scan Rate: 50 ms
- Hardware Accuracy (@ CMV = 0 V): ± 0.075% of full-scale (23.5°± 2°C), ± 0.15% of full-scale (0 to 60°C)
♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥
