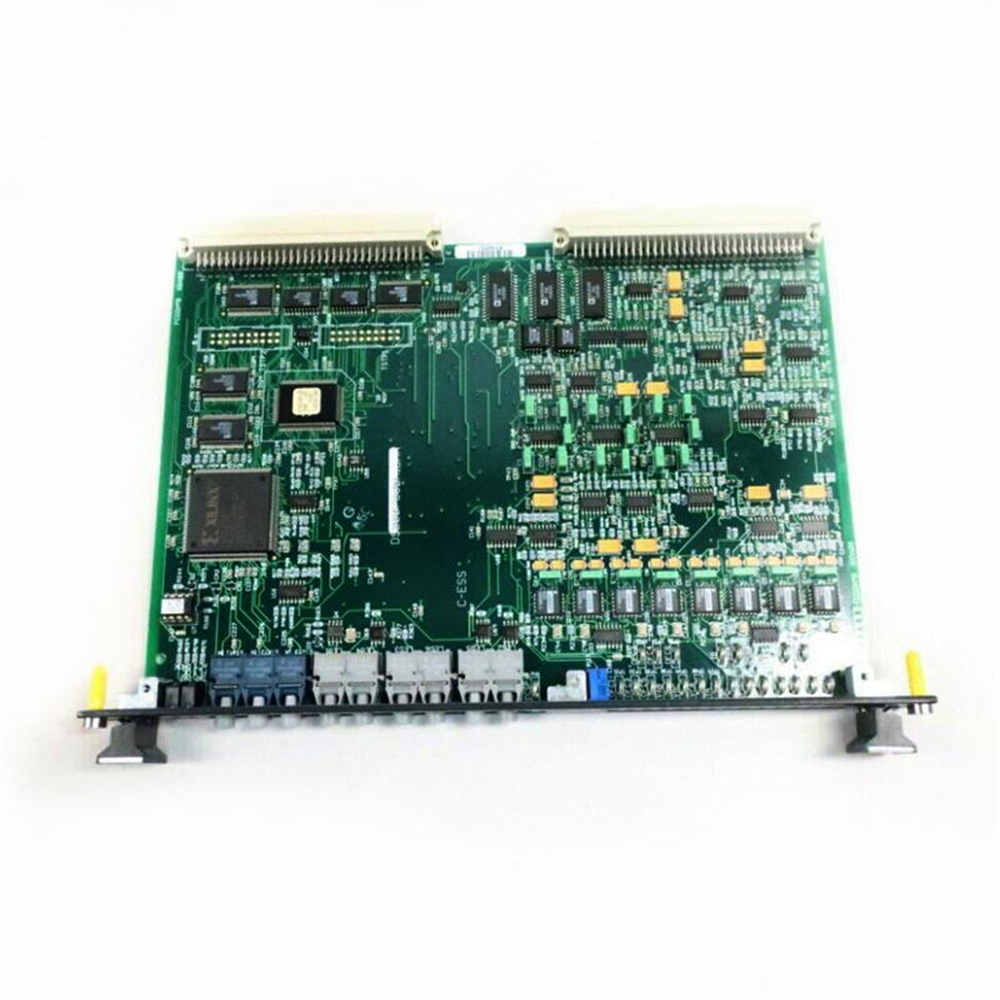

General Electric DS200FCGDH1B LCI Control and Gating Board

The DS200FCGDH1B is a gate distribution and status card (FCGD) designed by General Electric for their Mark V series drives.

It acts as an interface for the system’s six pulse, phase controlled non-reversing bridge.

GE DS200FCGDH1B PRODUCT INFORMATION：

• Data Processing: It receives information from the drive’s digital signal processing card (DSPC) and translates it into cell gating signals.
• Signal Distribution: These cell gating signals are then sent to all the system’s bridge legs.
• Status Monitoring: The bridge legs return multiplexed cell status information to the FCGD board
• Feedback Processing: It also receives feedback signals from various sources and scales them. This feedback includes:
  • Frequency
  • Voltage
  • Board status information (from three FGPA boards via fiber optic connections)
• Status Indication: An LED status indicator provides basic information on the system’s operational state

GE DS200FCGDH1B Related Fields

• Chemical processing
• Oil and gas refining
• Power generation
• Water and wastewater treatment
• Pulp and paper
• Food and beverage

Reasons to Choose us:

• Brand new imports: All products are sourced directly from foreign original factories and undergo rigorous testing to ensure quality.
• Strict quality control: Every product is thoroughly examined by professional technicians before leaving the factory to guarantee its performance.
• Free product consultation: We provides a 24-hour service hotline for free product consultation to address any technical questions you may have before or after purchase.
• One-year warranty: Brand new products are covered by a one-year warranty.
• 15-day return or replacement: Non-man-made quality issues can be returned or exchanged within 15 days of purchase.
• Direct order from foreign original manufacturers: By eliminating intermediaries, minimizes costs, maintains a large inventory of in-stock items, and offers direct supply.

Delivery Time :

• Express Shipping (DHL, UPS, FedEx, EMS):3-10 working days is a good rule of thumb. These services prioritize speed and often offer features like next-day or guaranteed delivery by a certain date (for an additional fee).
• Air Mail (China Post, Hong Kong Post):7-35 working days, depending on the destination country. This is a more budget-friendly option, but it takes longer because it has lower priority for shipment.

Affect delivery times:

• Customs Clearance:If customs officials need to inspect your package more thoroughly, it can delay delivery.
• Distance:Packages traveling longer distances will naturally take longer.

Important Notes:

• Please follow the product’s instruction manual carefully for installation and debugging to avoid damage to the product.
