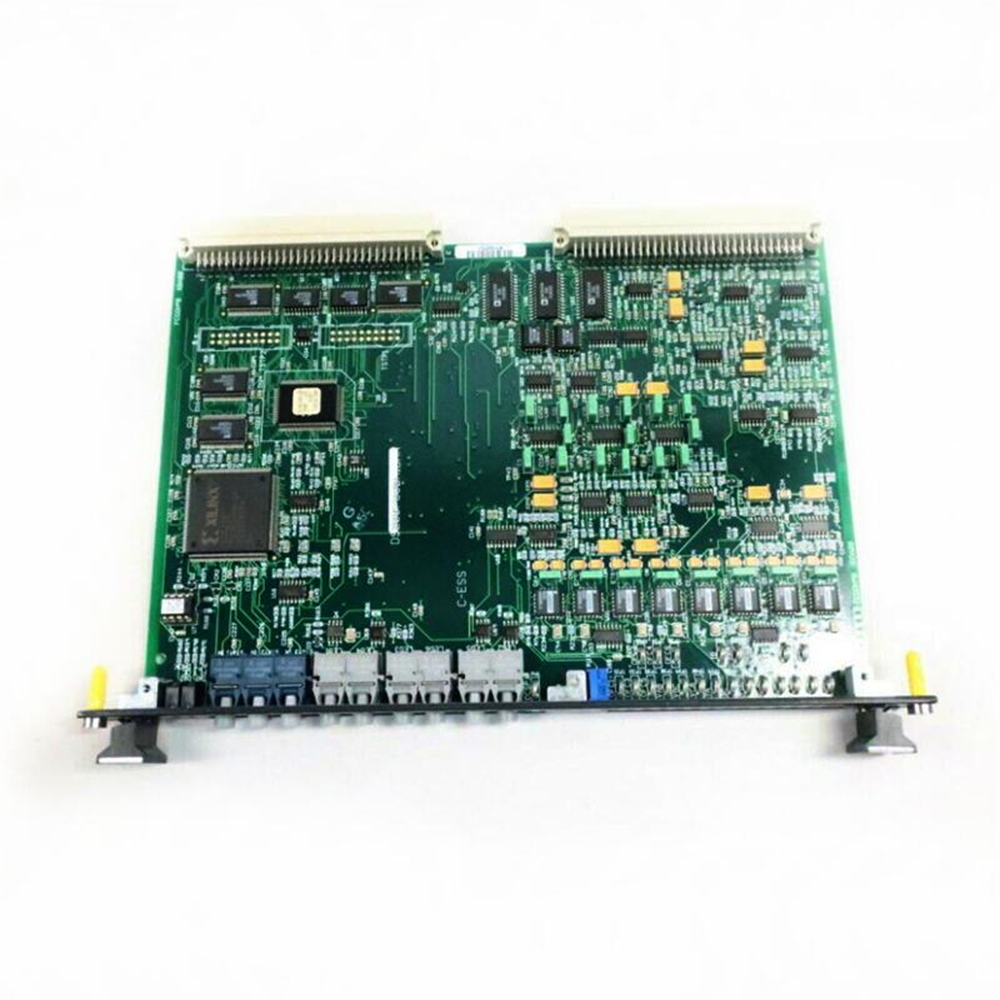

General Electric DS200FCGDH1 Gate Distribution and Status Card

The General Electric DS200FCGDH1 is a circuit board specifically designed for GE’s Mark V series turbine control systems.

It functions as a gate distribution and status card (FGCD) within the system.

GE DS200FCGDH1 PRODUCT INFORMATION：

• Function: It acts as an interface board for a six-pulse, phase-controlled, non-reversing bridge.
• Communication:
  • Receives SCR (silicon controlled rectifier) firing data from the DS200DSPC (Digital Signal Processing Card).
  • Transmits feedback and diagnostic data back to the DSPC board through the VME backplane.
• Processing:
  • Decodes and distributes cell gating signals for each bridge leg.
  • Takes in bridge feedback signals, scales them, and transmits voltage, frequency, and current data to the DSPC.
• Features:
  • System clock register for generating firing commands and timestamps.
  • System reset to set all registers to default values during power-up or hardware resets.
  • System heartbeat for indicating the board’s operational status.
  • Firing mask register to control firing commands for the six-cell strings in a bridge.

GE DS200FCGDH1 Related Fields

• Chemical processing
• Oil and gas refining
• Power generation
• Water and wastewater treatment
• Pulp and paper
• Food and beverage

Reasons to Choose us:

• Brand new imports: All products are sourced directly from foreign original factories and undergo rigorous testing to ensure quality.
• Strict quality control: Every product is thoroughly examined by professional technicians before leaving the factory to guarantee its performance.
• Free product consultation: We provides a 24-hour service hotline for free product consultation to address any technical questions you may have before or after purchase.
• One-year warranty: Brand new products are covered by a one-year warranty.
• 15-day return or replacement: Non-man-made quality issues can be returned or exchanged within 15 days of purchase.
• Direct order from foreign original manufacturers: By eliminating intermediaries, minimizes costs, maintains a large inventory of in-stock items, and offers direct supply.

Delivery Time :

• Express Shipping (DHL, UPS, FedEx, EMS):3-10 working days is a good rule of thumb. These services prioritize speed and often offer features like next-day or guaranteed delivery by a certain date (for an additional fee).
• Air Mail (China Post, Hong Kong Post):7-35 working days, depending on the destination country. This is a more budget-friendly option, but it takes longer because it has lower priority for shipment.

Affect delivery times:

• Customs Clearance:If customs officials need to inspect your package more thoroughly, it can delay delivery.
• Distance:Packages traveling longer distances will naturally take longer.

Important Notes:

• Please follow the product’s instruction manual carefully for installation and debugging to avoid damage to the product.
