Board Type:NTB/3TB
Series:531X
Functionality:Provides several external signal-level inputs and outputs, including regulated and unregulated power supplies, with noise-filtering capabilities for driving digital encoders.
Encoder Interface:Differential A quad B encoder interface (optically isolated)
System Features:Relay and serial outputs, analog I/O, power supplies, and encoders
Drive Compatibility:Designed for use with a variety of GE drives and exciter cabinets
Power Supply Capability:Capable of producing both regulated and unregulated power supplies
Optical Isolation:Ensures reliable operation in harsh industrial environments

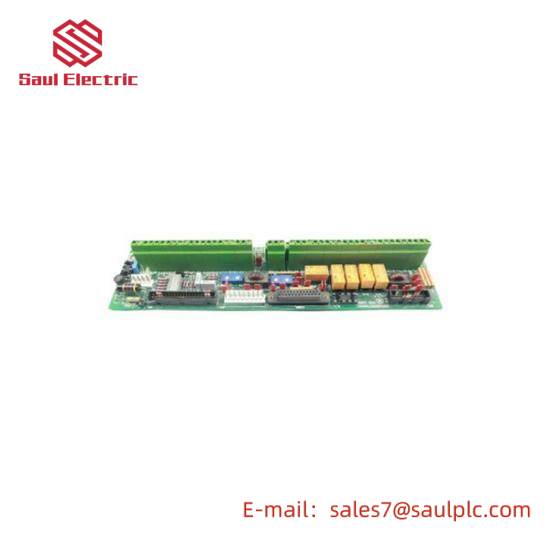

The GE 531X305NTBANG1 Terminal Board is a high-performance solution designed to enhance the operational efficiency of industrial machinery. This advanced board is engineered to provide a seamless integration of power management and control functionalities, making it an indispensable asset in modern industrial automation setups.
Featuring a robust design, the terminal board offers up to six relay outputs, facilitating the control of various mechanical devices with precision and reliability. Its serial outputs, supporting both RS-232 and RS-485 protocols, ensure smooth data communication with other systems, enabling real-time monitoring and control.
With four dedicated analog input channels, the board is capable of accurately measuring and processing sensor data, allowing for precise control adjustments based on environmental conditions or machine states. The inclusion of regulated and unregulated power supplies ensures compatibility with a wide range of equipment, providing stable power to sensitive components while offering flexibility for less critical systems.
One of its most notable features is the differential A quad B encoder interface, which employs optical isolation for enhanced reliability and accuracy in rotational speed and direction measurement. This feature is crucial for applications requiring high-speed data processing and precise control over motors and other mechanical systems.
Manufactured by General Electric, a leader in industrial technology, the 531X305NTBANG1 Terminal Board comes with detailed instructions and comprehensive technical support, ensuring a seamless installation and maintenance process. Its compatibility with GE‘s 531X series of boards further simplifies the integration into existing automation infrastructure, offering a scalable and future-proof solution for industrial automation needs.
