Product Description

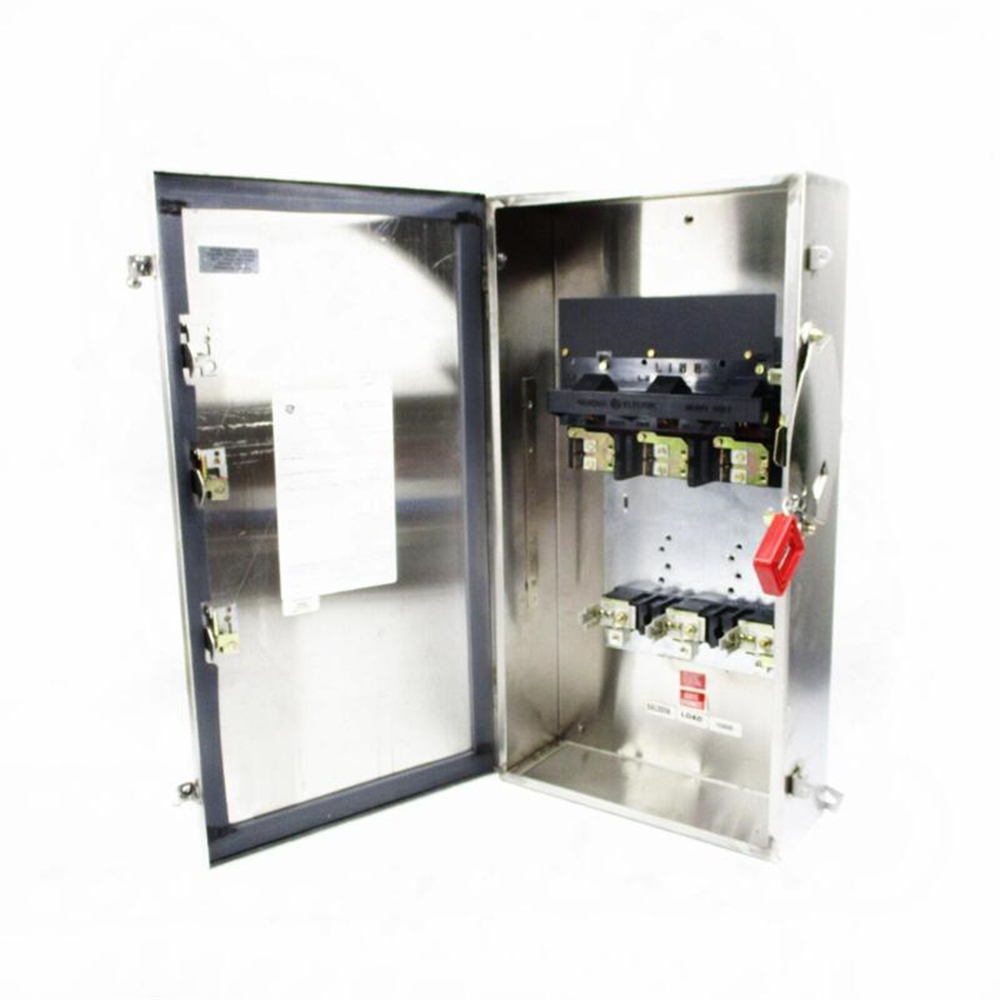

The General Electric TH3363SS is a heavy-duty fusible safety switch designed for commercial and industrial applications where safety, high performance, and continuity of service are essential. It is listed to UL standard 98 enclosed and dead front switches, and is suitable for use as service equipment when installed in accordance with the National Electrical Code. It is also certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches, and meets or exceeds NEMA KS1 standard for enclosed switches, type HD.
Product Parameters
- Voltage rating: 600 VAC
- Current rating: 100 A
- Number of poles: 3
- Phase: 3 ph
- Short circuit current rating: 200 kA
- Temperature rating: 60 to 75 deg C
- Enclosure type: NEMA 4/4X
- Finish: Hot dipped galvanized/powder coated
- Frequency rating: 50/60 Hz
- HorsePower: 30 hp
- Insulation type: Class H/J/K/R
- Material: 304 Stainless Steel
- Mounting type: 3-Point/Self-Leveling
- Terminal type: Line/Load Lug
- Type: Fused Heavy Duty
- Number of wires: 3
