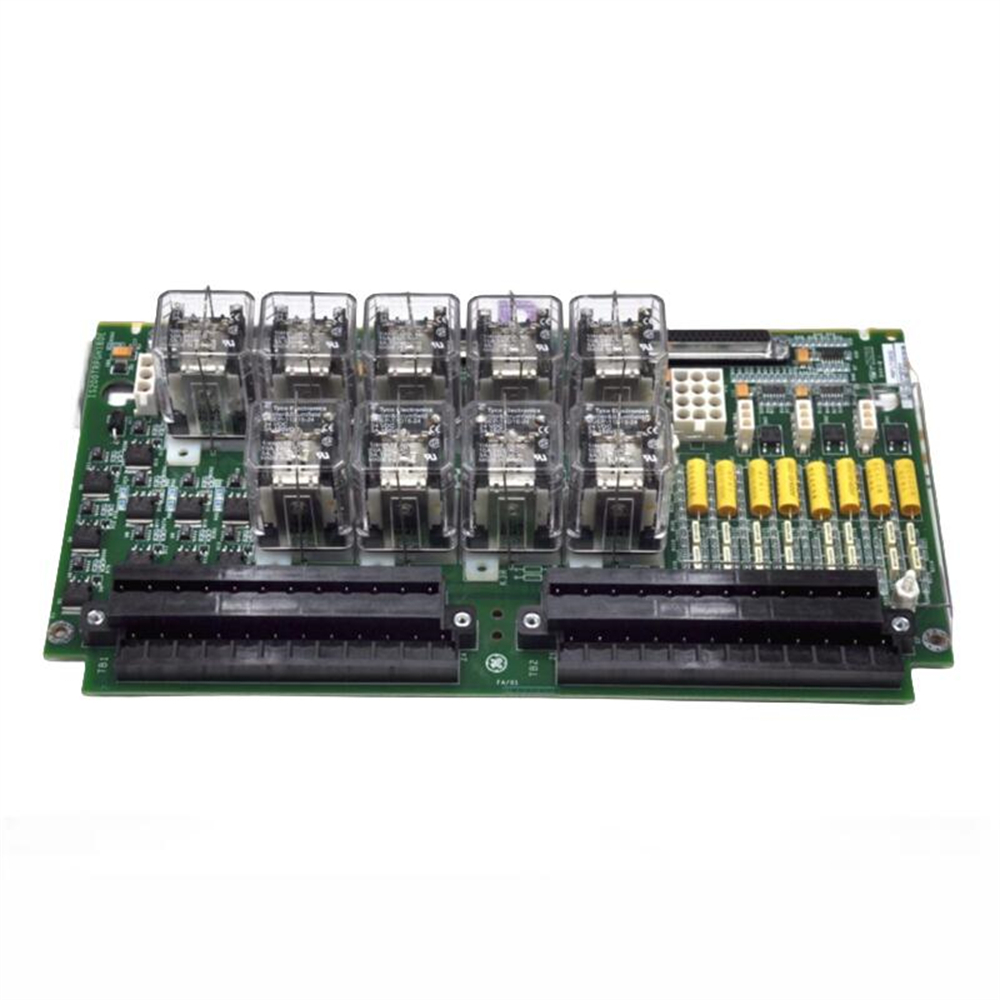

The GE IS200TRPGH1BCC is a relay terminal board used in Trip Relay Modules (TRMs).
TRMs are part of electrical protection systems, often found in power plants and industrial facilities.
- Function: It acts as an interface between the TMR system and the trip solenoids (or Electrical Trip Devices – ETDs)
- Voting Logic: It employs three voting circuits with nine magnetic relays to control the trip solenoids. These circuits likely use a two-out-of-three voting scheme to ensure reliable trip decisions.
- I/O Control: The board interacts with an I/O controller that monitors the voting circuit status and controls the relay operation.
♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥
