Type:Circuit Board
Model:DS3800XAIB1E1E
Category:GE Boards & Turbine Control
Operating Temperature:-40°F to +185°F (-40°C to +185°C)
Dimensions:17.5 x 14.5 inches (44.5 x 37.0 cm)
Connector Ports:10
Test Points:10
Materials:[“Black Plastic”,”Silver-Gold Metal”]
Components:[“Resistors”,”Capacitors”,”Diodes”]

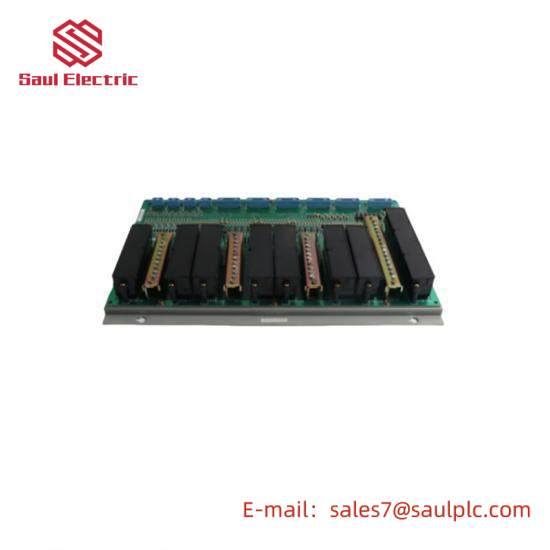

The GE DS3800XAIB1E1E Circuit Board is a crucial component in the robust ecosystem of GE‘s Mark IV industrial control systems, designed to provide unparalleled reliability and efficiency in demanding industrial environments.
This board boasts an array of components meticulously arranged across its surface, including large, rectangular devices primarily composed of black plastic and silver-gold metal, alongside numerous smaller components like banded resistors in brown with white and gold bands.
The circuit board is equipped with 10 connector ports and an additional 10 test points, facilitating seamless integration and diagnostic capabilities. It is further adorned with 16 large resistors and multiple small resistors, essential for fine-tuning the system’s electrical characteristics.
On the opposite side, it features 10 connector ports, with six of them being larger, accommodating 13 male connector pins each, and the remaining four being smaller, housing 10 female connector pins. This versatile connectivity ensures compatibility with a wide range of wiring configurations.
The inclusion of over 35 red LEDs provides visual feedback, indicating system status or alerts. Additionally, the presence of a small switch enables users to easily manage the board’s operational state. The board is equipped with a total of nine separate connection points for various wiring harnesses, all designed to be compatible with female harnesses for streamlined installation and maintenance.
