GE DS3800NDID1P1H Drive interface motherboard Quality assurance

Product Description

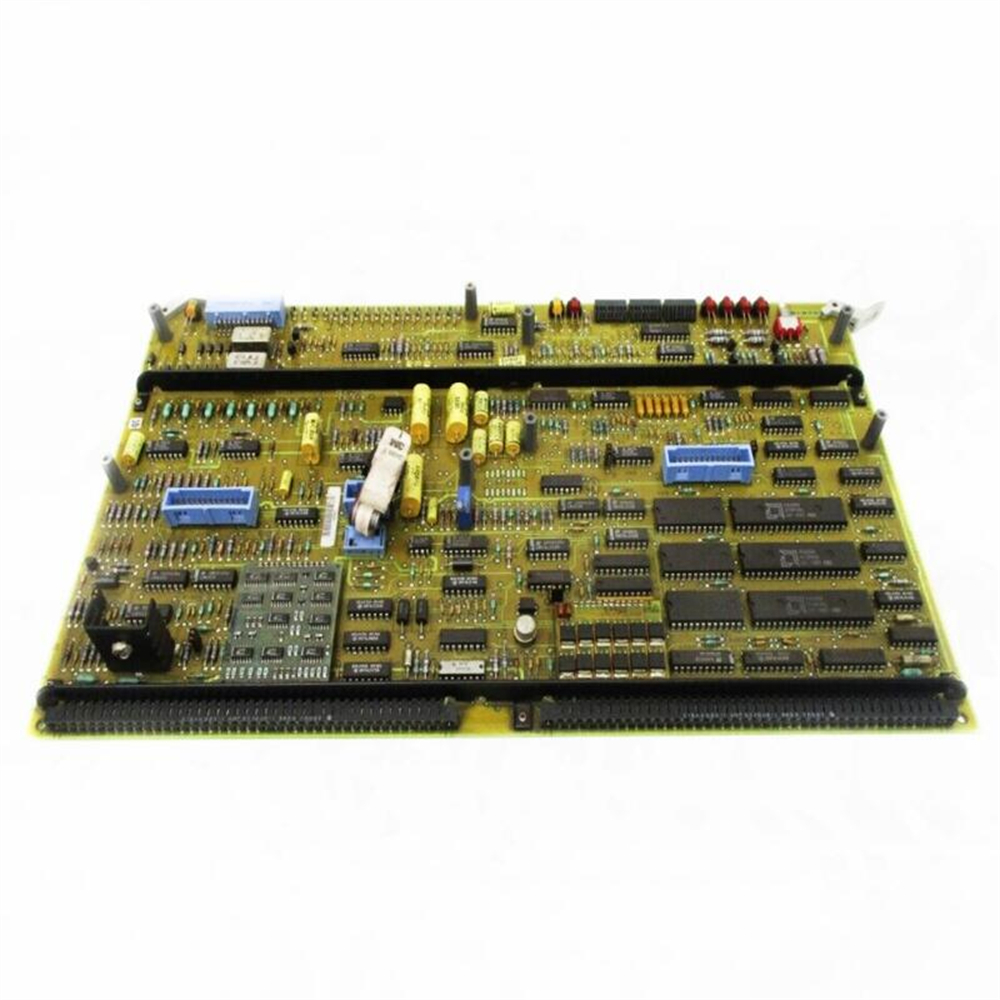

The GE DS3800NDID1P1H is a drive interface motherboard for the Mark IV series of gas and steam turbine control systems. It is responsible for interfacing with the turbine’s drive system and ensuring that it operates within safe parameters. The DS3800NDID1P1H is a complex piece of equipment with a wide range of features and capabilities.

Product Parameters

• Supports two small auxiliary boards
• One auxiliary board populated with multiple chips
• Other auxiliary board marked 6BA90407P2
• Motherboard built with twenty transistors and seventy-six integrated circuits
• Two potentiometers (one rotary and one trim)
• Six jumper switches
• Two resistor network arrays
• Two 218A4553-1Amp 553002-1 communication connectors
• One 218A4807-P13 communication connector
• Eighteen test points
• One push-button switch
• Three LED strips
• Seven LEDs
• Three vertical pin communication connectors
• Spare PTH
• One heatsink
• Two PCB board stiffeners
• Alignment marked along one edge, A through J
• Factory-drilled
• Extractor clips installed
• Six nylon pins attached

Usage Method

The DS3800NDID1P1H is a critical component of the Mark IV turbine control system. It is important to follow the manufacturer’s instructions carefully when installing, configuring, and operating this device.

Product Application

The DS3800NDID1P1H is used in a variety of industrial applications, including:

• Gas and steam turbine control
• Power generation
• Oil and gas production
• Chemical processing
• Manufacturing

The DS3800NDID1P1H is a reliable and durable piece of equipment that is essential for the safe and efficient operation of gas and steam turbines.

Additional Notes:

• The DS3800NDID1P1H has been discontinued by GE.
• Technical support publications for the DS3800NDID1P1H, such as manuals and data sheets, are available from third-party sources.
• It is important to note that the DS3800NDID1P1H is a complex piece of equipment and should only be serviced by qualified technicians.
