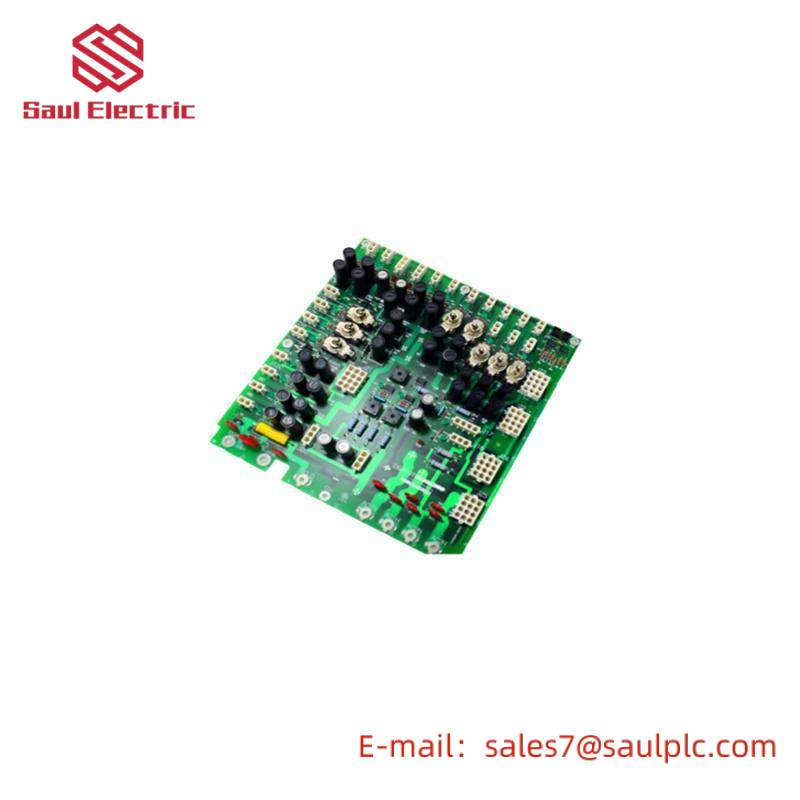

GE DS200TBPAG1ACC Analog Input Terminal Board, RTD, Industrial Control

Product Type:RTD Analog Input Terminal Board

Brand:GE

Model:DS200TBPAG1ACC

Series:Mark V

Input Range:-50°C to +150°C

Resolution:0.1°C

Accuracy:±0.2% of measured value

Power Consumption:Max. 200mA at 5VDC

Connection Type:M12 connector

Dimensions:100mm x 70mm x 30mm

Weight:0.2kg

Operating Temperature:-20°C to +85°C

Storage Temperature:-40°C to +125°C

Environmental Conditions:Humidity: 5% to 95% RH (non-condensing)

    The GE DS200TBPAG1ACC is specifically engineered for high-precision temperature measurement tasks in demanding industrial environments. This terminal board supports Resistance Temperature Detectors (RTDs) and ensures reliable data transmission through RS-485 interface, making it ideal for integration into complex control systems.

    Crafted with robust materials for durability and long-term reliability, this board withstands harsh conditions without compromising on performance. Its wide measurement range (-200°C to +850°C) accommodates a variety of industrial applications, from freezing temperatures to high-temperature processes.

    Equipped with exceptional accuracy (+/- 0.05% of span), the DS200TBPAG1ACC provides precise readings essential for accurate process control and monitoring. It is designed to minimize power consumption, ensuring efficient operation even in power-sensitive systems.

    Withstanding operational temperatures from -40°C to +70°C and humidity levels from 5 to 95% non-condensing, this terminal board is suitable for a wide range of industrial settings. Its ability to operate under these conditions makes it a versatile choice for various manufacturing sectors, including chemical, petrochemical, and food processing industries.

    For easy installation and maintenance, the DS200TBPAG1ACC features a user-friendly design with clear labeling and standardized connectors. It seamlessly integrates with other components in the system, enhancing overall system performance and reducing setup time.
