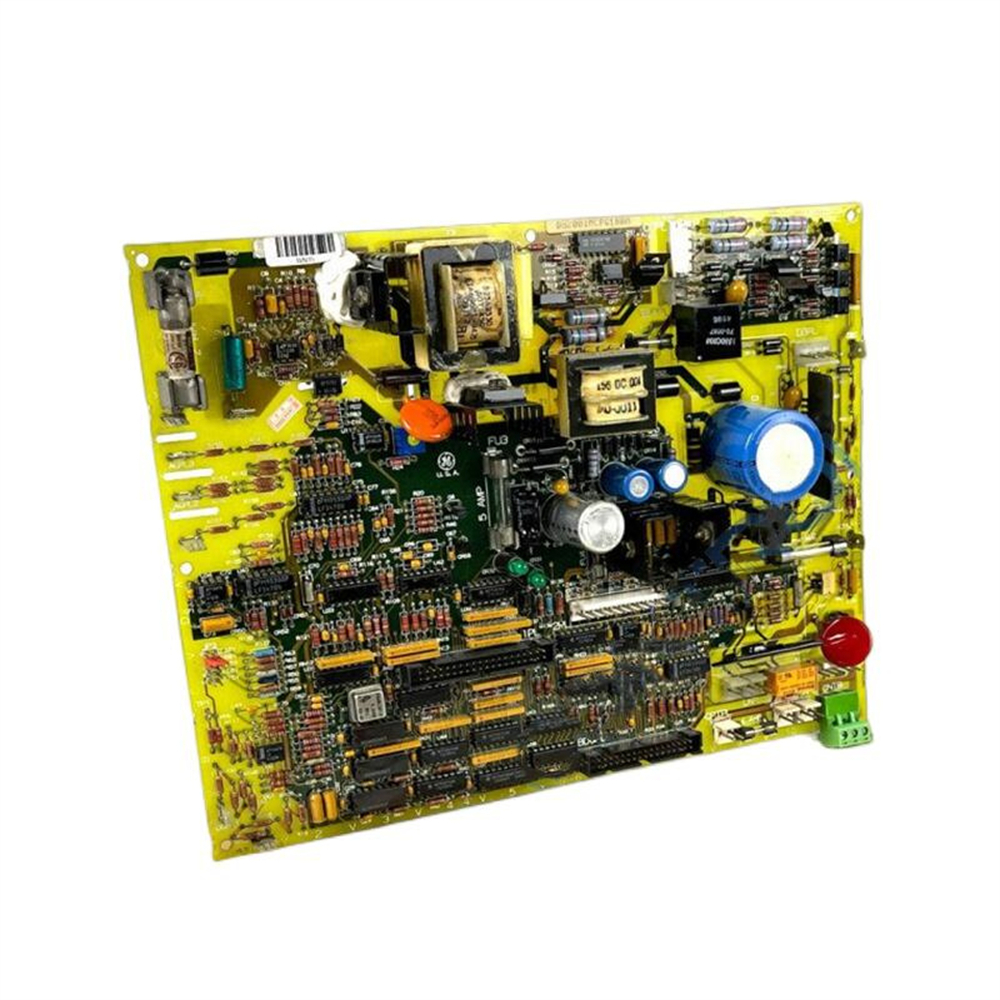

The GE DS200IMCPG1B IAC2000I Power Supply Interface Board is a critical component within the GE DS200IMCPG1B industrial controller.

Its primary function is to provide a secure and efficient interface between the controller’s power supply and the rest of the system.

Key features and functions:

1. Power distribution: The board distributes power from the external power supply to various internal components of the controller, ensuring that each component receives the necessary voltage and current for optimal operation.

2. Voltage regulation: It may incorporate voltage regulators to maintain a stable and consistent voltage supply to the controller’s sensitive components, preventing damage due to voltage fluctuations.

3. Protection: The board often includes protective circuitry, such as fuses or circuit breakers, to safeguard the controller from short circuits or overcurrent conditions.

4. Signal conditioning: In some cases, the board may perform signal conditioning tasks, converting raw power signals into a format that is suitable for the controller’s internal circuitry.

5. Interface with other components: The board typically provides connectors or terminals for connecting to other components within the controller, such as the main control board, input/output modules, and communication interfaces.
