DESCRIPTION

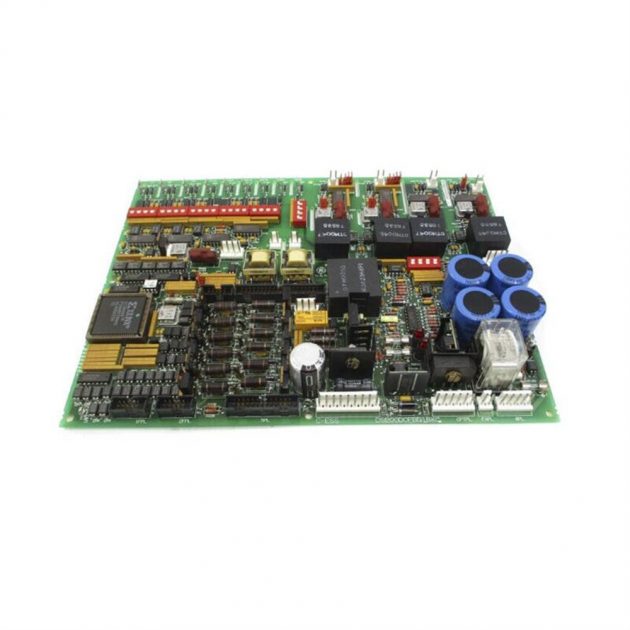

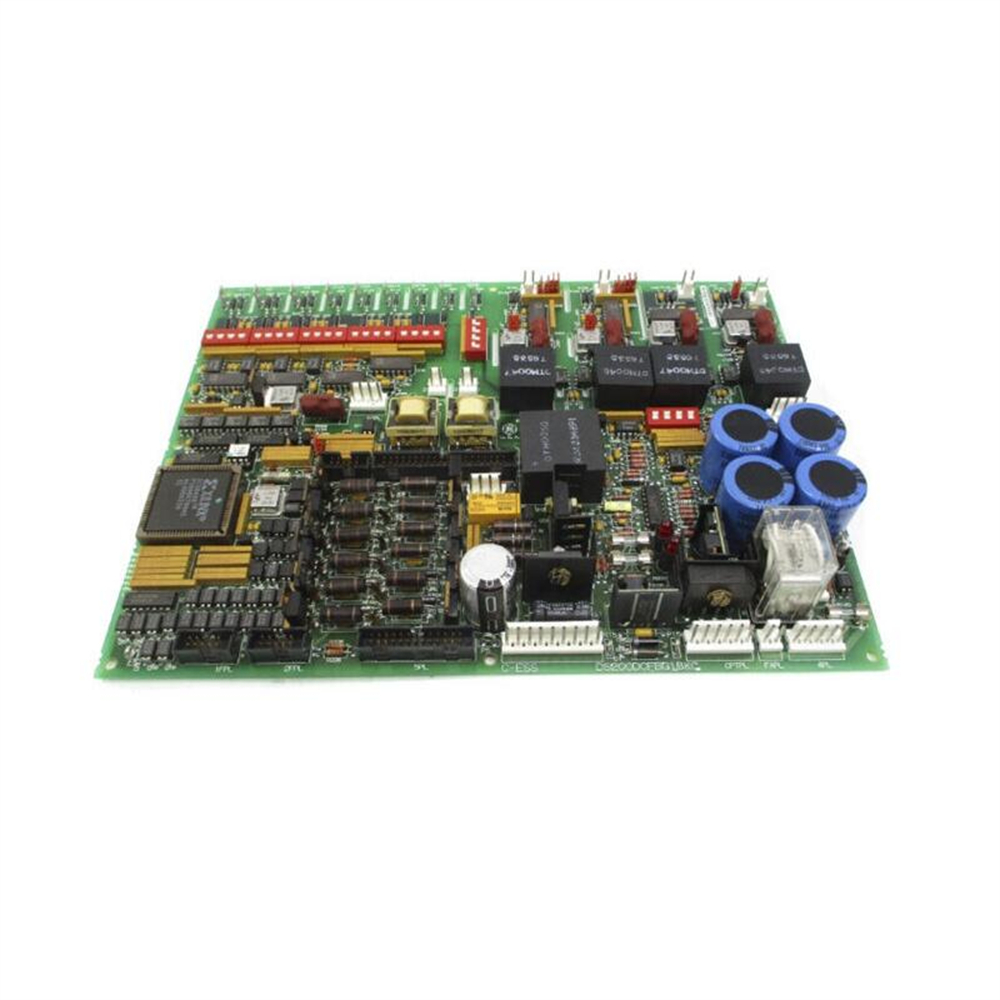

GE DS200DCFBG1B
The GE DS200DCFBG1B Power Supply Board is a critical component in various GE Turbine Control System applications.
It provides control-level power to the drive and 115 VAC power to the enclosure fans.
Key Features:
1. Control Level Power Supplies: Provides +5, +/- 15, and +/- 24 VDC for powering the drive’s control circuitry.
2. Motor Field Power Circuits: Supplies power to the motor field, excluding the SCR module.
3. Driver Circuits: Generates gate pulse signals for the motor field SCRs.
4. Monitoring Circuits: Monitors AC line and DC motor signals, including armature current and voltages, motor field current, AC line current, and AC line voltage magnitude and phase sequence.
5. Configurable Options: Features twelve jumpers and seven DIP switches for system customization.
6. Protective Features: Includes three protective fuses to prevent power supply interruptions and LED indicators for fuse switch diagnostics.
7. Test Points: Provides five test points for monitoring voltages.
