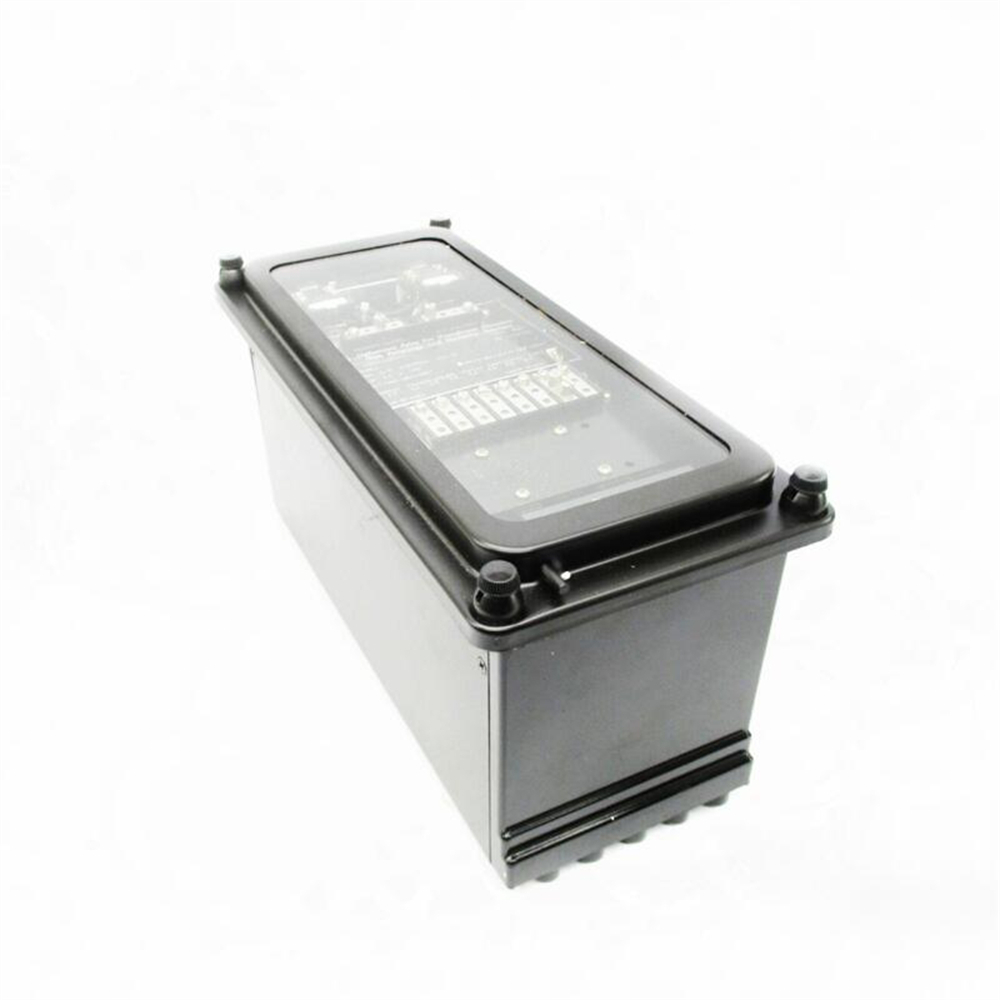

GE BDD15B11A Product Description
The GE BDD15B11A is a transformer differential relay with percentage and harmonic restraint. It is used to protect transformers rated 2000 kVA and above and for transformers with windings rated 15 kV or above.
The BDD15B11A relay uses a combination of percentage and harmonic restraint to prevent operation due to external faults or circulating currents. The percentage restraint element measures the through current and the differential current. If the differential current is greater than a certain percentage of the through current, the relay will operate. The harmonic restraint element measures the harmonic content of the differential current. If the harmonic content of the differential current is greater than a certain threshold, the relay will not operate.
The BDD15B11A relay has a number of features that make it a versatile and reliable transformer protection relay. These features include:
- Percentage and harmonic restraint to prevent operation due to external faults or circulating currents
- Adjustable pickup and dropout settings
- Zero restraint for high sensitivity
- Fast operating time
- Multiple alarm and trip outputs
- Comprehensive self-test and diagnostic capabilities
GE BDD15B11A Product Parameters
- Input current range: 1A to 100A
- Output current range: 1A to 100A
- Pickup current range: 0.5% to 10%
- Dropout current range: 0.25% to 5%
- Operating time: <20ms
- Power supply voltage: 24V DC or 110V DC
- Operating temperature range: -40°C to +70°C
