GE 531X305NTBAPG1 NTB/3TB Terminal Board-Saul Electrlc

Product Description:

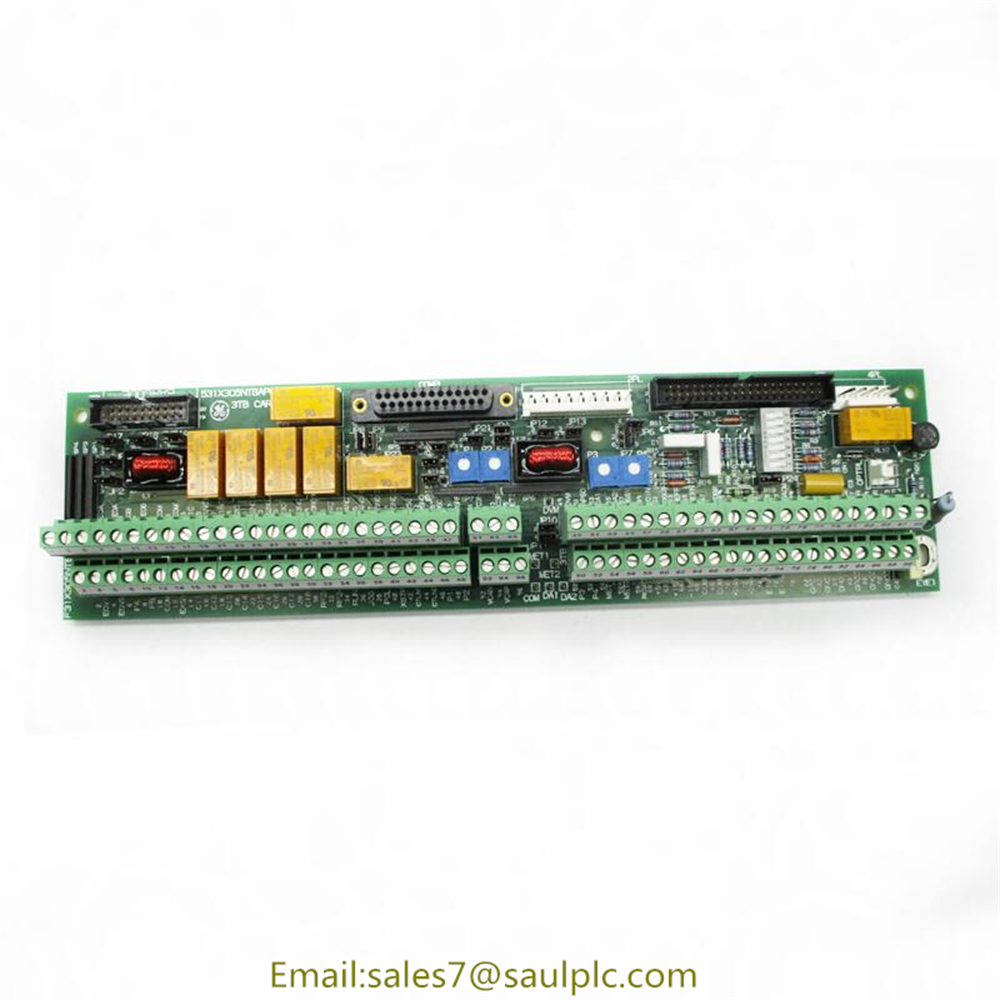

The GE 531X305NTBAPG1 is an NTB/3TB Terminal Board for AC2000 and DC2000 drives. It is a plug-in board that provides a variety of interfacing capabilities, including:

• Serial and relay outputs
• Low-level analog I/O
• Encoders
• Power supply

The NTB/3TB terminal board is installed in the drive cabinet and provides access to the drive’s I/O terminals. It also provides regulated and unregulated power sources for external devices.

Product Parameters:

• Part number: 531X305NTBAPG1
• Manufacturer: General Electric
• Product type: NTB/3TB Terminal Board
• Series: EX2000
• Regulated power outputs: +5 V dc and 15 V dc, each with a 300 mA current capacity
• Unregulated dc power output: 24 V, 500 mA current capacity
• AC power output: 120 V ac, 0.5 A of current capacity
• Weight: 0.5 lbs
• Dimensions: 7.5″ x 4.5″ x 1.25″

Usage Method:

To use the GE 531X305NTBAPG1 NTB/3TB Terminal Board, you must first install it in the drive cabinet. Once installed, you can connect external devices to the board’s terminals. The board also provides regulated and unregulated power sources for external devices.

To connect an external device to the NTB/3TB terminal board, you must first consult the device’s documentation to determine which terminals to use. Once you have identified the correct terminals, you can connect the device using the appropriate wiring.

The NTB/3TB terminal board also provides a number of jumpers and switches that can be used to configure the board for different applications. For example, you can use the jumpers to set the encoder interface voltage and to bias disconnected digital inputs to +24 or -24 V dc.

Product Application:

The GE 531X305NTBAPG1 NTB/3TB Terminal Board can be used in a variety of applications, including:

• Industrial control systems
• Robotics
• Process control systems
• Machine tools
• Renewable energy systems

Here are some specific examples of how the NTB/3TB terminal board can be used:

• To connect a PLC to a GE AC2000 or DC2000 drive
• To connect a remote operator interface to a drive
• To connect a feedback device, such as an encoder or resolver, to a drive
• To provide power to external devices, such as sensors and actuators

The NTB/3TB terminal board is a versatile tool that can be used to add a variety of interfacing capabilities to GE AC2000 and DC2000 drives.
