General Overview

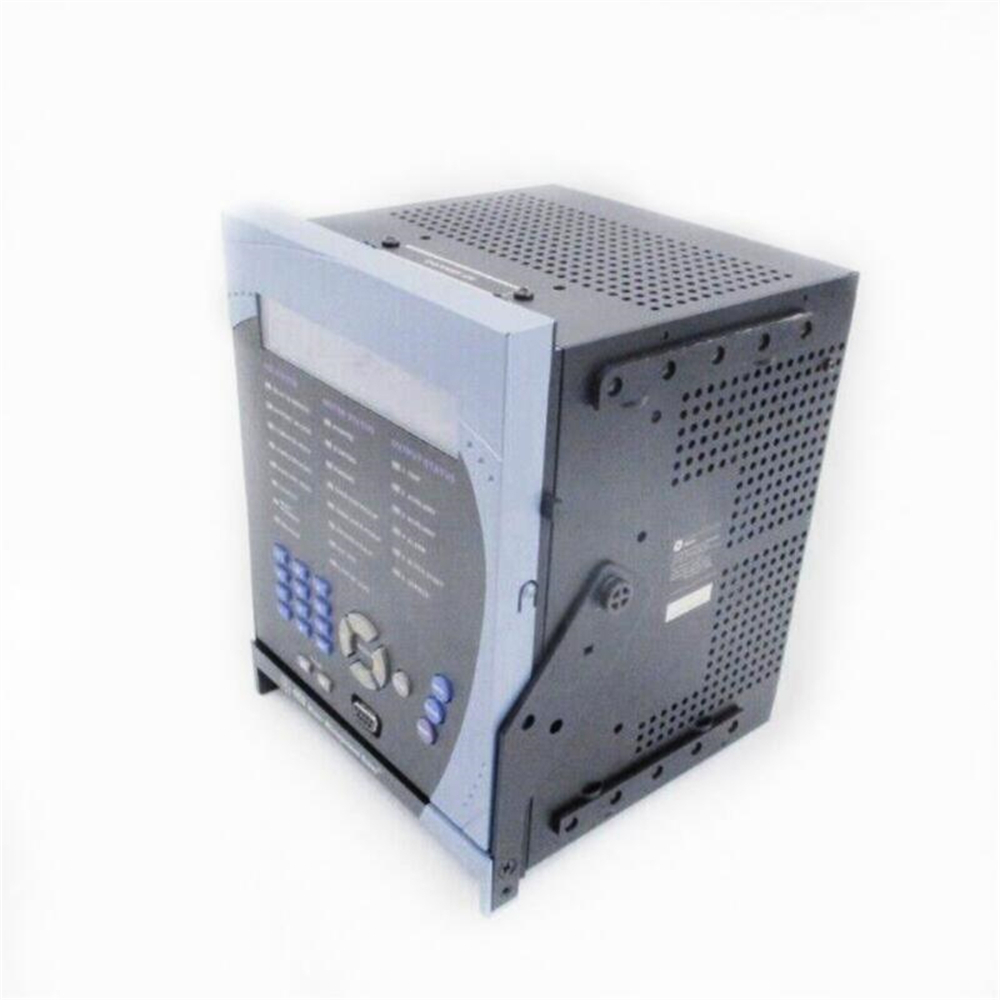

The GE 469-P5-HI-A20-E is a motor management relay from the 469 series, designed to provide comprehensive protection and control for industrial motors. It offers a wide range of features, including:
-
Motor protection: Protects against overcurrent, overload, undervoltage, overvoltage, loss of phase, and ground faults.
-
Motor control: Provides start, stop, and jogging functions, as well as speed control and jogging direction reversal.
-
Communication: Communicates with other devices via Modbus or analog inputs/outputs.
-
Diagnostics: Provides comprehensive diagnostics for troubleshooting motor problems.
Key Features
-
5 amp phase CT secondaries: Provides accurate overload and overcurrent protection.
-
Hi-limit set point: Protects against overtemperature conditions.
-
Start-up delay: Prevents motor damage during start-up.
-
Reverse current protection: Prevents motor running in the wrong direction.
-
Fault reset: Enables easy troubleshooting and resetting of faults.
Technical Specifications
-
Current rating: 5 amps per phase
-
Hi-limit set point: 125°C (257°F)
-
Start-up delay: Adjustable from 0 to 60 seconds
-
Reverse current protection: 60% of motor FLA
-
Fault reset: Manual or automatic
-
Communication: Modbus RTU or analog inputs/outputs
-
Display: 2-line LCD
-
Dimensions: 4.4″ x 2.8″ x 1.5″ (112 mm x 71 mm x 38 mm)
-
Weight: 0.5 pounds (230 grams)
