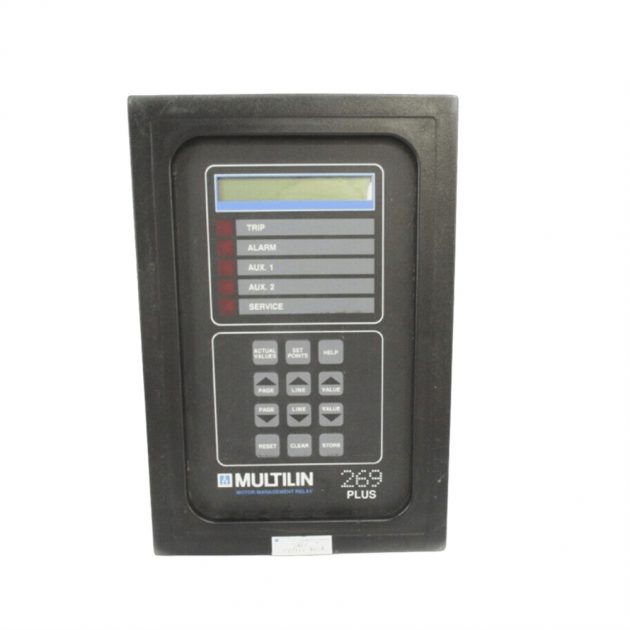

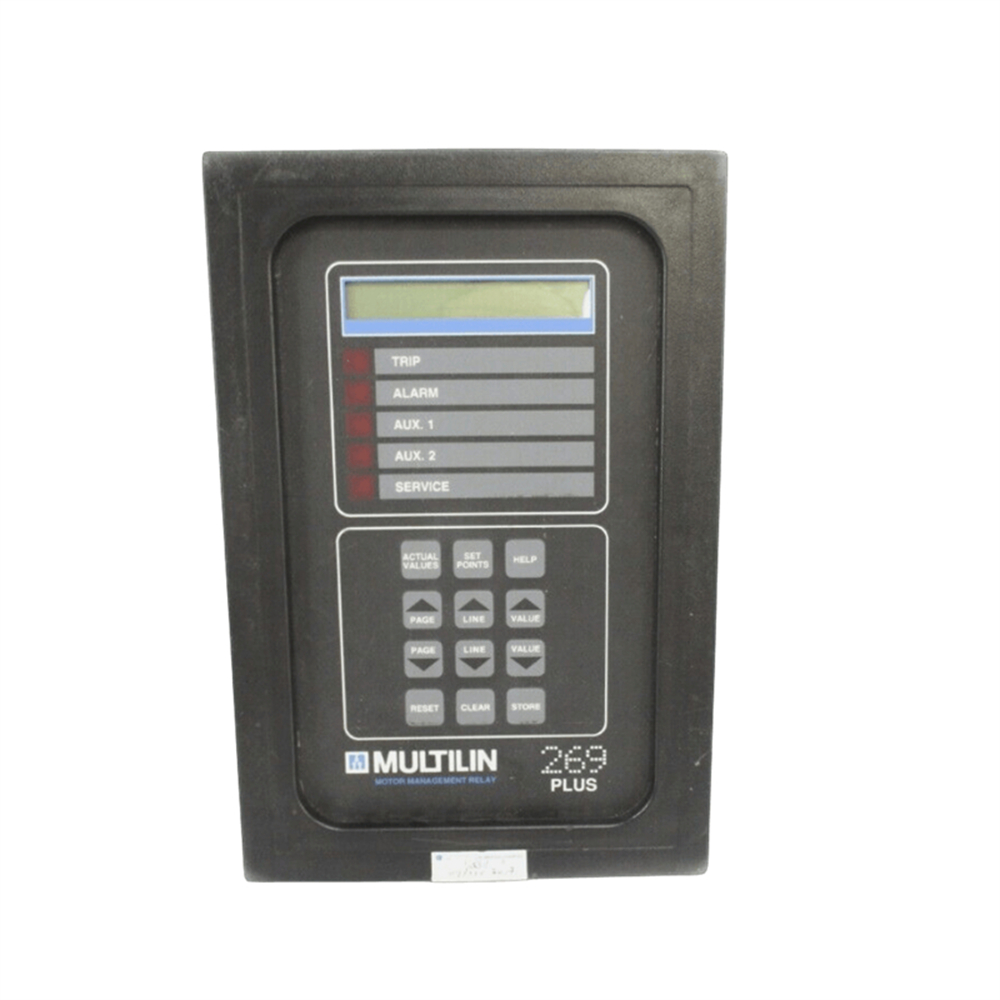

Product description:
- Motor management relay with 100 Ohm platinum RTD
- Suitable for medium-sized motors
- Microcomputer-controlled and keypad programmable
- Offers a variety of protection and control features, including pre-trip alarm warnings, emergency restart capability, auxiliary relays, latched main trip relay, alarm relay, variable lock-out time, phase reversal, ground fault, short-circuit protection, unbalance/single phasing, trip/mechanical jam, locked rotor, undercurrent for load loss, user-defined overload FlexCurve, and 8 standard overload curves
- Also offers motor multiple starts, stator winding and bearing overtemperature, and a thermal model biased with RTD and negative sequence current feedback
- Monitoring and metering features include optional voltage and power metering, learned and statistical data, data logger, and current and thermal capacity metering
- Has 12 programmable RTDs, 5 factory-programmed digital inputs, 4 output relays, and 1 programmable analog output
- Uses EnerVista software
Product parameters:
- Control voltage: 80-150VAC/DC, SV
- RTD: Platinum, 100 Ohm
- Ambient temperature: -25°C-60°C
- Dimensions: 11.40 inches x 7.50 inches x 16.00 inches (W x H x D)
- Shipping weight: 7.75 lb
Usage methods:
- Install the relay in accordance with all national and local electrical codes.
- Connect the relay to the motor and other necessary devices.
- Configure the relay using the keypad or EnerVista software.
- Start the motor and monitor the relay for alarms or trips.
Product advantages:
- Comprehensive protection and control features for medium-sized motors
- Microcomputer-controlled and keypad programmable for easy configuration
- Variety of monitoring and metering features for advanced motor management
- Uses EnerVista software for powerful data analysis and reporting
Overall, the GE 269PLUS-100P-120 is a versatile and powerful motor management relay that is ideal for a variety of industrial applications.
