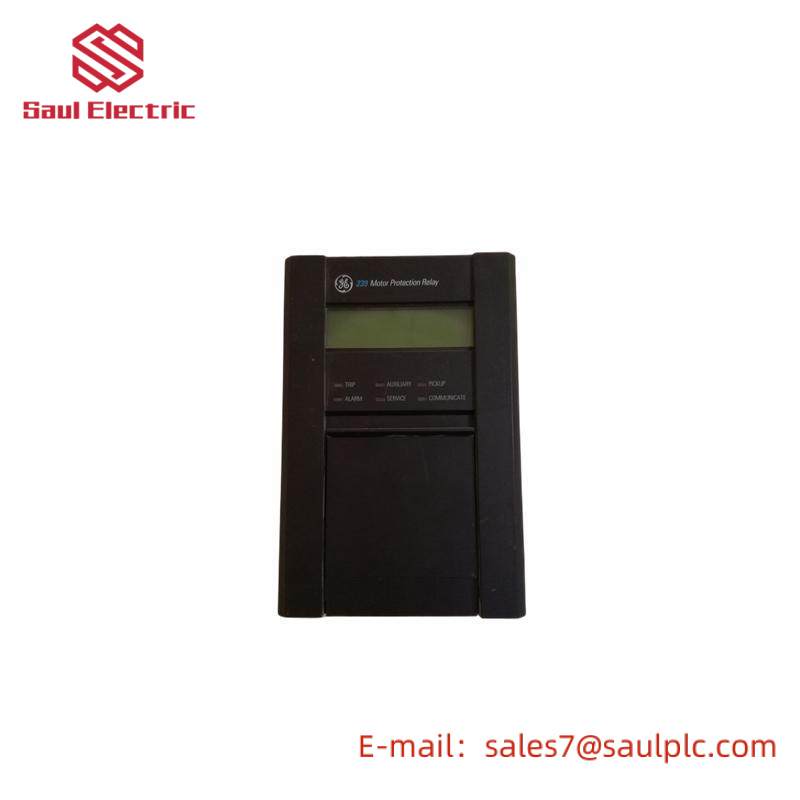

GE 239-RTD-AN: Advanced Motor Protection Relay for Industrial Control Systems

Model Number:239-RTD-AN

Manual Part Number:GEK-106613C or 1601-0067-DC

Made By:GE Consumer and Industrial – Multilin

Insulation Voltage:300 V

Fuse Rating:5 x 20 mm, 250 V, 2.5 A

Overload Curves:Trip time accuracy ± 1% of displayed value

Programmable Output:Thermal capacity, % full load, and phase current

RFI Test:50 MHz/15 W

Transmitter Short Circuit and Ground Trip:S/C trip level 1 to 11 x CT PRI/OFF

Storage Temperature Range:-40 to 158°F

Unbalance Delay:0-60 s

Ventilation Requirements:None, according to the 239 Motor Protection Relay Manual

    The GE 239-RTD-AN is equipped with advanced RTD technology, enabling precise monitoring of motor conditions under extreme temperatures and pressures.

    Featuring a robust, waterproof housing, it ensures continuous operation in harsh environments, enhancing system reliability and uptime.

    This relay is compatible with various RTD types including nickel, platinum, and copper, offering flexibility and adaptability across different applications.

    It supports multiple protection functions including breaker failure, overload warning, ground fault, and locked rotor protection, safeguarding against potential failures.

    With a clear front-facing LCD display, users can easily monitor status, temperature, current, and additional data, facilitating quick decision-making and troubleshooting.

    Compact design fits most starter configurations, making installation straightforward and space-efficient. The inclusion of 239PC Windows software streamlines setup and management.
