Product Information:

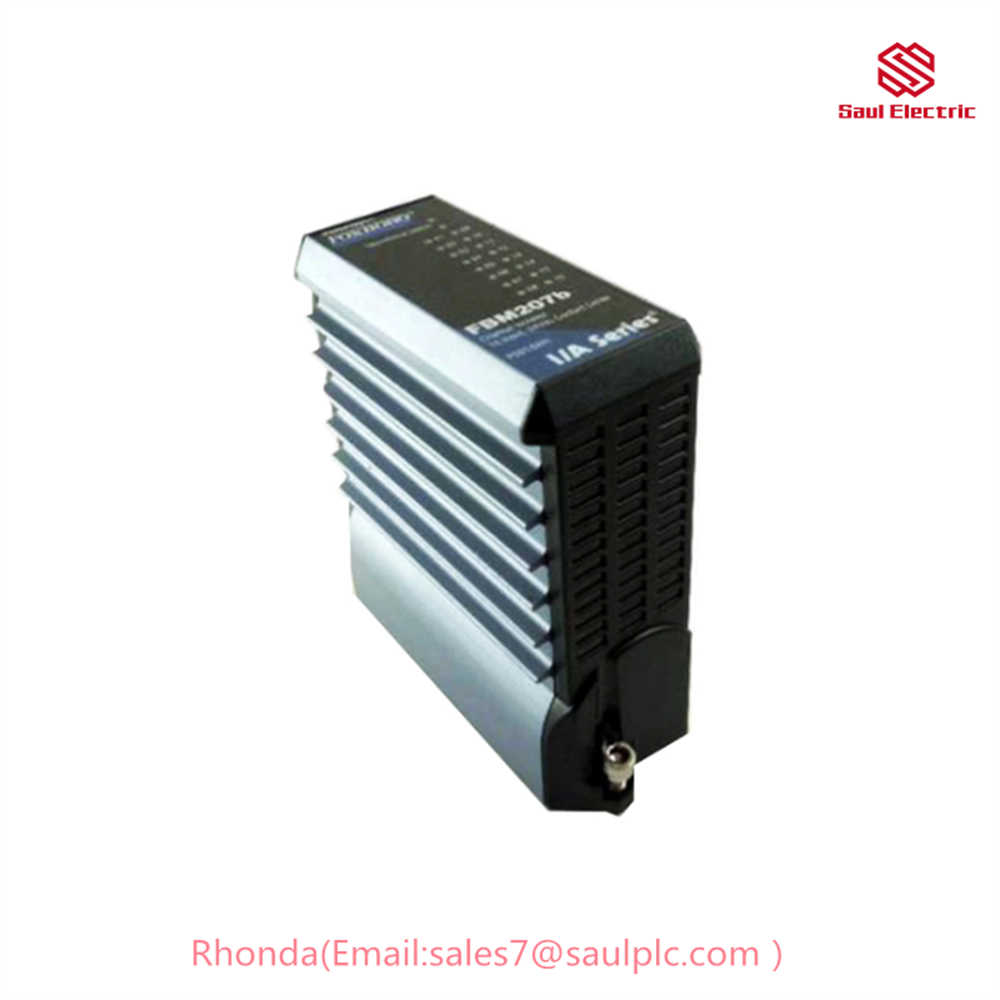

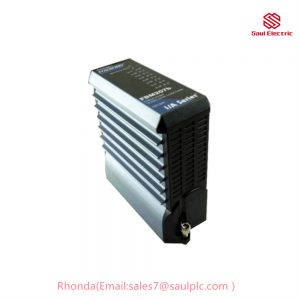

Foxboro FBM207B Voltage Monitor/Contact Sense Input Modules
Product No. : FBM207B
Product Type : Voltage Monitor / Contact Sense Input Modules
Features : Sixteen discrete inputs , Supports discrete input signals at voltages of: 15 to 60 V dc – contact sense , 120 V ac/125 V dc – voltage monitoring or switch inputs ,240 V ac – voltage monitoring or switch inputs, Each input is galvanically isolated. Group isolated with external excitation , Single or redundant modules.
Input : 16 isolated and independent channels
Accuracy : Pulse Count No missing pulses for pulse rate 0 to 250 Hz
Filter / Debounce Time(1) : Configurable (No Filtering, 4, 8, 16, or 32 ms)
Voltage Monitor Function – Input : Logic One, On-State Voltage: 15 to 60 V dc, Logic Zero, Off-State Voltage: 0 to 5 V dc ,Current: 1.4 mA (typical) at 5 to 60 V dc
Source Resistance Limits : Logic One, On-State: 1 k O (maximum) at 15 V dc , Logic Zero, Off-State: 100 k O (minimum) at 60 V dc
Storage Conditions Temperature : -40 to +70°C (-40 to +158°F)
Relative Humidity : -5 to 95% (noncondensing)
Dimensions (L x W x H) : 10.4 cm x 4.5 cm x 11.4 cm
Weight : 0.284 kg
FOXBORO is a company specializing in the design, manufacturing, and application of process inspection and control instruments. Using electric, pneumatic, and mechanical devices to detect, analyze, indicate, record, and adjust production process variables such as temperature, pressure, flow rate, liquid level, humidity, and chemical composition.
FOXBORO’s products are mainly used in the process industry, with the main industrial objects being chemical, petroleum, natural gas, papermaking, and pulp
