Rated Voltage:600V
Current Rating:145A
Operating Temperature Range:-40°C to +175°C
Insulation Resistance:≥ 1000MΩ
Switching Frequency:Up to 20kHz
Package Type:TO-247-3
Cooling Method:Thermal Pad and Heat Sink

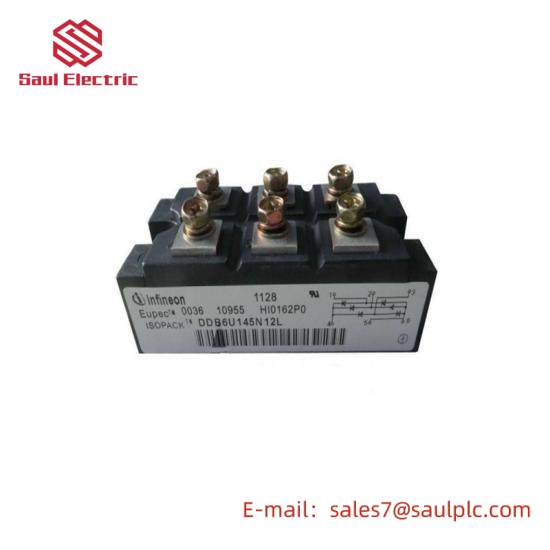

Introducing the Eupec DDB6U145N12L IGBT Module, a cornerstone in the realm of industrial automation. This high-power module is meticulously engineered to deliver superior performance in power-intensive applications, ensuring both efficiency and reliability in various industrial settings.
Featuring an impressive 1450 VA power rating, it can handle heavy loads with ease, making it a perfect fit for complex industrial control systems. With its DC 1200V operating voltage, the module ensures robust operation across a wide range of applications.
Equipped with a peak current capacity of 600 A, this IGBT module is capable of handling high currents without compromising on performance. Its temperature resistance spans from -40°C to +175°C, allowing for operation in extreme conditions without degradation.
The insulation resistance of ≥10MΩ at 500V DC guarantees exceptional electrical safety, ensuring reliable operation over long periods. The frequency range of 50Hz to 400Hz ensures compatibility with a variety of systems, while the switching frequency of up to 12 kHz enables swift response times and enhanced control precision.
Innovative design, combined with stringent quality control, makes the Eupec DDB6U145N12L IGBT Module a trusted choice for engineers seeking to optimize their industrial control systems. Experience unmatched reliability and performance with our state-of-the-art IGBT technology, designed to withstand the demands of modern industrial environments.
