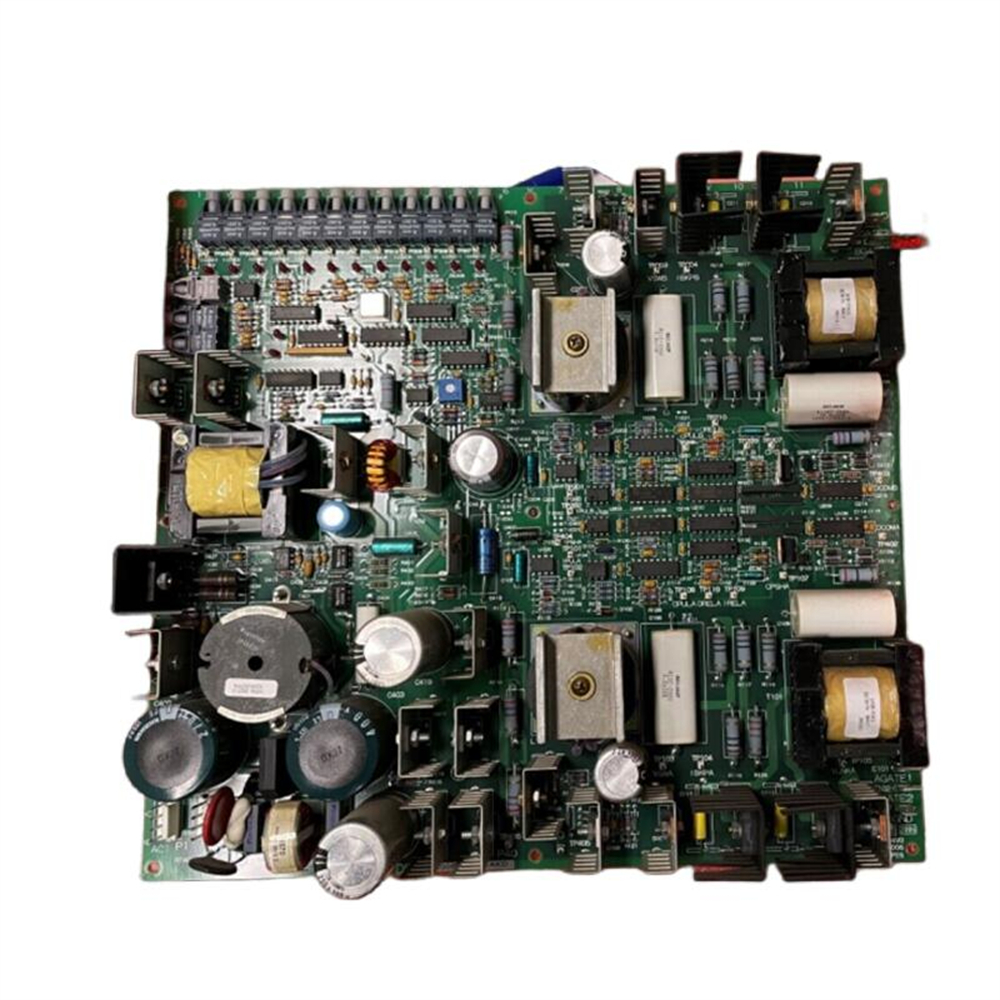

The GE DS200FGPAG1A is a gate pulse amplifier board used in the Mark V turbine control system. It provides three main functions: SCR status monitoring, switching power supply, and gate driver.
SCR Status Monitoring
The DS200FGPAG1A monitors the status of the SCRs (silicon controlled rectifiers) in the gate pulse amplifier circuit. It detects faults such as overcurrent, overvoltage, and undervoltage.
Switching Power Supply
The DS200FGPAG1A provides a switching power supply for the gate pulse amplifier circuit. The power supply is isolated from the rest of the board to prevent ground loops.
Gate Driver
The DS200FGPAG1A provides a gate driver for the SCRs in the gate pulse amplifier circuit. The gate driver is a high-current, high-voltage driver that can switch the SCRs on and off very quickly.
Features
- 14 receiving fiber optic ports
- 1 sending fiber optic port
- Fast and stable network
Applications
- Turbine control systems
- Other industrial applications
Specifications
- Voltage: 120 VAC
- Current: 20 A
- Power: 2400 W
- Dimensions: 12″ x 8″ x 4″
- Weight: 5 lbs
