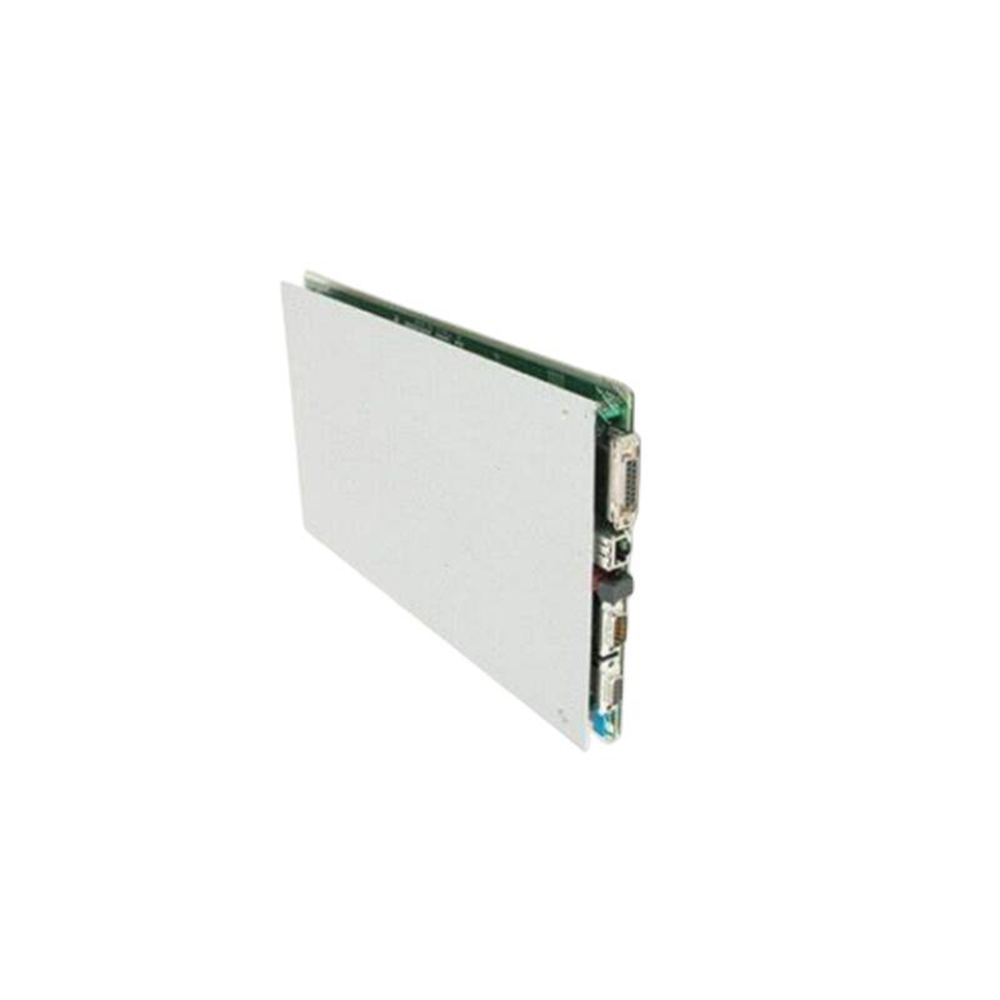

Bently Nevada PWA134652-01
The Bently Nevada PWA134652-01 is a TDXnet PLC Transient Data Interface, part of the Bently Nevada 3500 series.
It acts as a bridge between machinery protection systems and Bently Nevada’s online machinery management software.
- Communication Interface: It provides a connection between compatible machinery protection systems and Bently Nevada’s software for data transfer.
- Data Acquisition: It continuously gathers both steady-state and startup/shutdown data from all connected channels simultaneously. This is an improvement over previous communication processors that collected data sequentially.
- Data Transmission: It transmits the collected data via Ethernet or serial connection, offering more options than older models (TDIX, TDM, DDM).
Bently Nevada PWA134652-01 Application Field
1. Oil and Gas
2. Power Generation
3. Chemical Processing
4. Manufacturing
5. Pulp and Paper
6. Turbines
7. Compressors
8. Pumps
9. Fans
Bentley company
Bentley Systems, Incorporated is an American company that develops software for the design, construction, and operation of infrastructure. Their software is used by engineers, architects, constructors, surveyors, and owner-operators around the world.
- MicroStation: A 2D/3D CAD modeling application
- OpenRoads: A software suite for designing and analyzing roads and bridges
- SewerGEMS: A software program for modeling and analyzing sanitary sewer systems
- WaterCAD: A software program for modeling and analyzing water distribution systems
- STAAD.Pro: A software program for structural analysis and design
Bentley main series
| Vibration monitoring module | Monitor module | Power module | Extension cable+probe |
| 3500/05 Framework | 3500/45 Differential Expansion/Axial Position Monitor | 3500/93 System Display Device | 3300XL |
| 3500/15 power module | 3500/46 M Hydroelectric Monitor Module | 3500/95 System Integrated PC Display Device 1900/65A Four Channel Vibration Monitor |
330130 |
| 3500/20 Framework Interface Module | 3500/50 speed module | 1900/15 power module monitor | 330106 |
| 3500/22 M Transient Data Interface Module | 3500/53 Electronic Overspeed Detection System Module | 1900/17 Proximitor Monitor | 330400 |
| 3500/25 Improved Keyphasor Module | 3500/60 Temperature Monitor Module | 1900/25 vibration monitor | 330910… |
| 3500/32 4-Channel Relay Module | 3500/61 Temperature Monitor Module | 1900/27 vibration monitor | |
| 3500/33 16 Channel Relay Module | 3500/62 Process Variable Monitor Module | 1900/55 earthquake monitoring module | |
| 3500/40 displacement monitor | 3500/72 M piston rod position monitoring module | 2300/20 dual channel monitor | |
| 3500/42 M displacement/velocity monitor | 3500/77 M cylinder pressure monitoring module | 2300/25 monitor | |
| 3500/34 TMR Relay Module | 3500/92 Communication Gateway |
