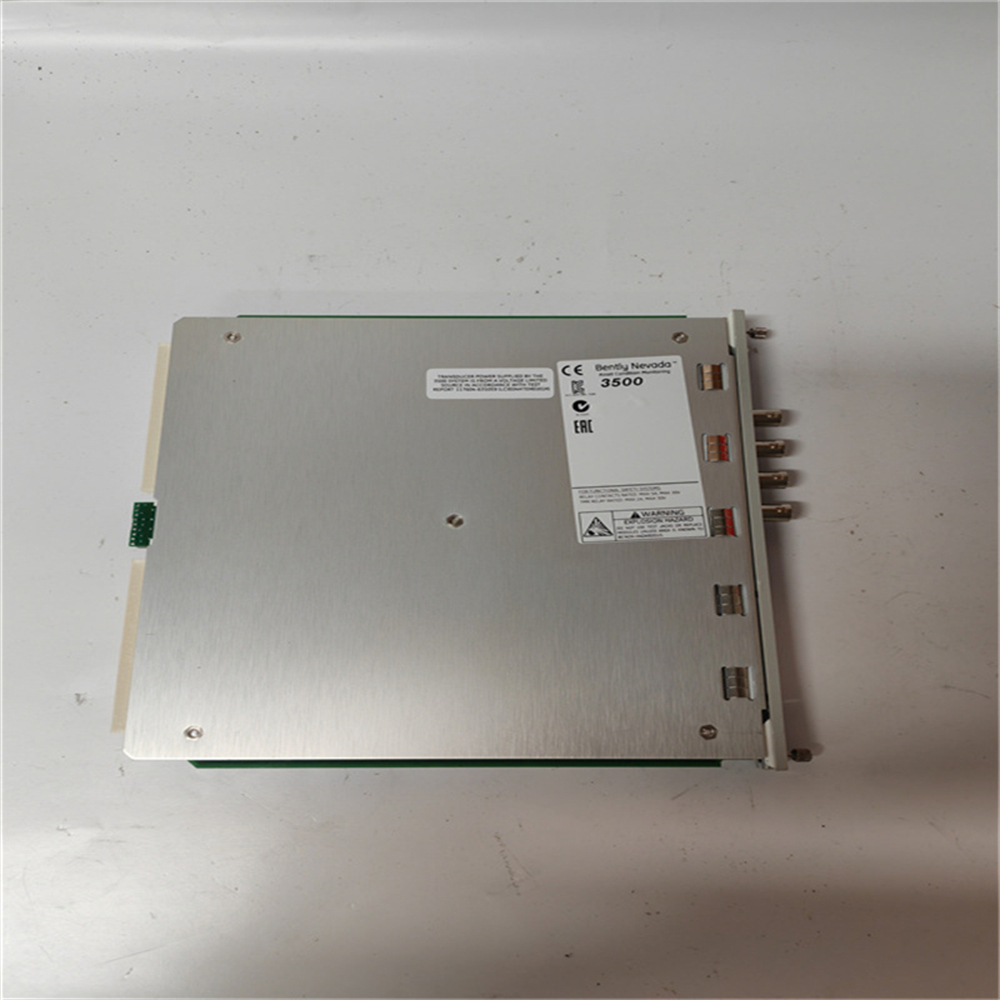

Bently Nevada 350077M 176449-07
The Bently Nevada 3500-77M 176449-07 is a four-channel monitor designed to specifically measure pressure in reciprocating compressors.
1. Input and Signal Processing: It accepts input signals from up to four Bently Nevada approved pressure transducers. These signals are then conditioned to calculate various pressure measurements relevant to the compressor’s operation.
2. Machinery Protection: The monitor continuously compares the measured pressure values against user-programmable alarm setpoints. If a value exceeds the setpoint, it triggers an alarm to warn of potential machinery issues.
3. Data Acquisition: The 3500-77M can provide essential machine information for operations and maintenance personnel. This information likely includes the measured pressure values and calculated parameters.
Here are some additional specifications of the Bently Nevada 3500-77M 176449-07:
1. Number of Channels: 4
2. Input Signal Type: Piezoelectric pressure transducer
3. Input Signal Range: 0 to 10,000 psi (0 to 68.9 MPa)
4. Accuracy: ±0.25% of full scale
5. Output Signal Type: 4-20 mA
6. Power Supply: 24 VDC ±10%
7. Dimensions: 9.50 in x 0.96 in x 3.90 in (241.3 mm x 24.4 mm x 99.1 mm)
8. Weight: 0.44 lb (0.20 kg)
Bently Nevada 350077M 176449-07 Application Field
1. Oil and Gas
2. Power Generation
3. Chemical Processing
4. Manufacturing
5. Pulp and Paper
6. Turbines
7. Compressors
8. Pumps
9. Fans
Bentley company
Bentley Systems, Incorporated is an American company that develops software for the design, construction, and operation of infrastructure. Their software is used by engineers, architects, constructors, surveyors, and owner-operators around the world.
- MicroStation: A 2D/3D CAD modeling application
- OpenRoads: A software suite for designing and analyzing roads and bridges
- SewerGEMS: A software program for modeling and analyzing sanitary sewer systems
- WaterCAD: A software program for modeling and analyzing water distribution systems
- STAAD.Pro: A software program for structural analysis and design
Bentley main series
| Vibration monitoring module | Monitor module | Power module | Extension cable+probe |
| 3500/05 Framework | 3500/45 Differential Expansion/Axial Position Monitor | 3500/93 System Display Device | 3300XL |
| 3500/15 power module | 3500/46 M Hydroelectric Monitor Module | 3500/95 System Integrated PC Display Device 1900/65A Four Channel Vibration Monitor |
330130 |
| 3500/20 Framework Interface Module | 3500/50 speed module | 1900/15 power module monitor | 330106 |
| 3500/22 M Transient Data Interface Module | 3500/53 Electronic Overspeed Detection System Module | 1900/17 Proximitor Monitor | 330400 |
| 3500/25 Improved Keyphasor Module | 3500/60 Temperature Monitor Module | 1900/25 vibration monitor | 330910… |
| 3500/32 4-Channel Relay Module | 3500/61 Temperature Monitor Module | 1900/27 vibration monitor | |
| 3500/33 16 Channel Relay Module | 3500/62 Process Variable Monitor Module | 1900/55 earthquake monitoring module | |
| 3500/40 displacement monitor | 3500/72 M piston rod position monitoring module | 2300/20 dual channel monitor | |
| 3500/42 M displacement/velocity monitor | 3500/77 M cylinder pressure monitoring module | 2300/25 monitor | |
| 3500/34 TMR Relay Module | 3500/92 Communication Gateway |
