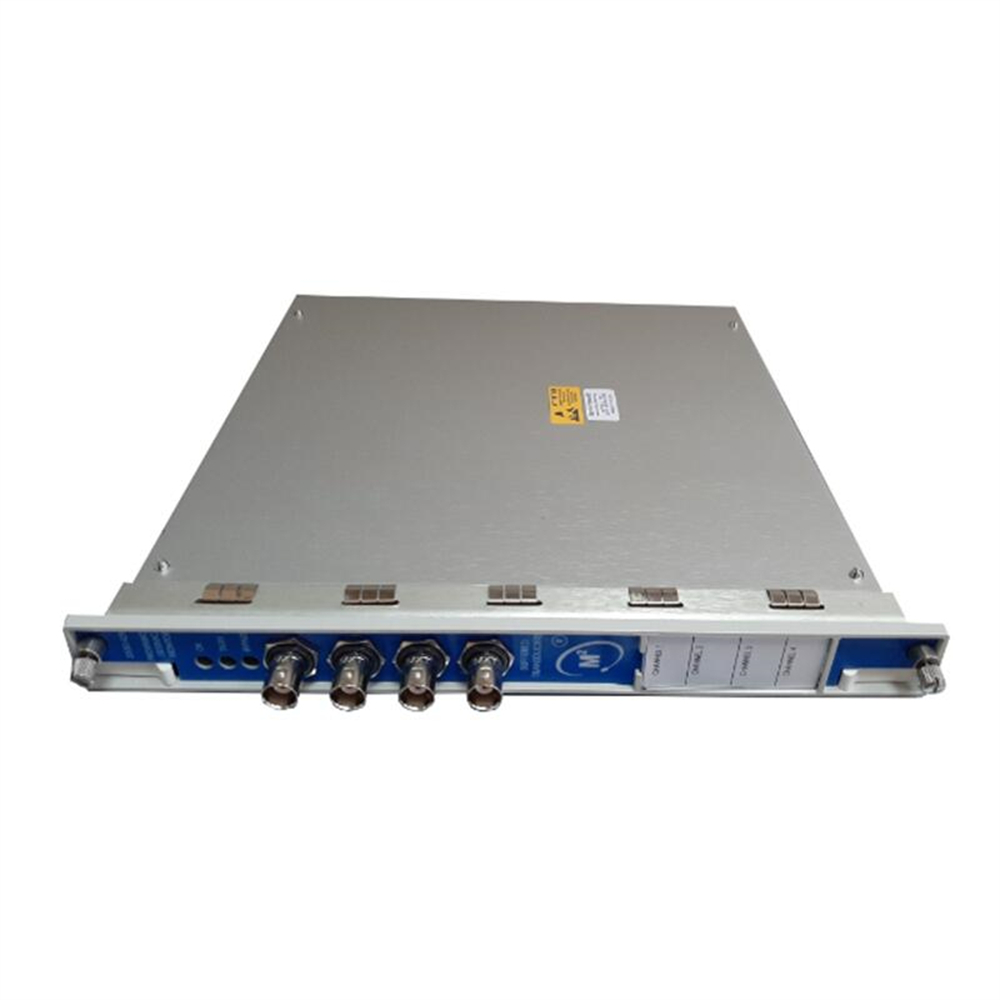

Bently Nevada 176449-02
The Bently Nevada 176449-02 3500/42M Proximitor/Seismic Monitor is a machine condition monitoring device that measures vibration and position of machinery.
- Function: It accepts input from up to four proximity or seismic transducers, processes the signals to provide vibration and position measurements, and compares them to user-defined alarm limits.
- Applications: Protects machinery by triggering alarms when vibration or position exceed safe operating thresholds. Provides essential machine health information to operators and maintenance personnel.
- Monitored Parameters:
- Radial vibration
- Thrust position
- Acceleration
- Differential expansion
- Shaft absolute position
- Eccentricity
- Velocity
Bently Nevada 176449-02 Application Field
1. Oil and Gas
2. Power Generation
3. Chemical Processing
4. Manufacturing
5. Pulp and Paper
6. Turbines
7. Compressors
8. Pumps
9. Fans
Bentley company
Bentley Systems, Incorporated is an American company that develops software for the design, construction, and operation of infrastructure. Their software is used by engineers, architects, constructors, surveyors, and owner-operators around the world.
- MicroStation: A 2D/3D CAD modeling application
- OpenRoads: A software suite for designing and analyzing roads and bridges
- SewerGEMS: A software program for modeling and analyzing sanitary sewer systems
- WaterCAD: A software program for modeling and analyzing water distribution systems
- STAAD.Pro: A software program for structural analysis and design
Bentley main series
| Vibration monitoring module | Monitor module | Power module | Extension cable+probe |
| 3500/05 Framework | 3500/45 Differential Expansion/Axial Position Monitor | 3500/93 System Display Device | 3300XL |
| 3500/15 power module | 3500/46 M Hydroelectric Monitor Module | 3500/95 System Integrated PC Display Device 1900/65A Four Channel Vibration Monitor |
330130 |
| 3500/20 Framework Interface Module | 3500/50 speed module | 1900/15 power module monitor | 330106 |
| 3500/22 M Transient Data Interface Module | 3500/53 Electronic Overspeed Detection System Module | 1900/17 Proximitor Monitor | 330400 |
| 3500/25 Improved Keyphasor Module | 3500/60 Temperature Monitor Module | 1900/25 vibration monitor | 330910… |
| 3500/32 4-Channel Relay Module | 3500/61 Temperature Monitor Module | 1900/27 vibration monitor | |
| 3500/33 16 Channel Relay Module | 3500/62 Process Variable Monitor Module | 1900/55 earthquake monitoring module | |
| 3500/40 displacement monitor | 3500/72 M piston rod position monitoring module | 2300/20 dual channel monitor | |
| 3500/42 M displacement/velocity monitor | 3500/77 M cylinder pressure monitoring module | 2300/25 monitor | |
| 3500/34 TMR Relay Module | 3500/92 Communication Gateway |
