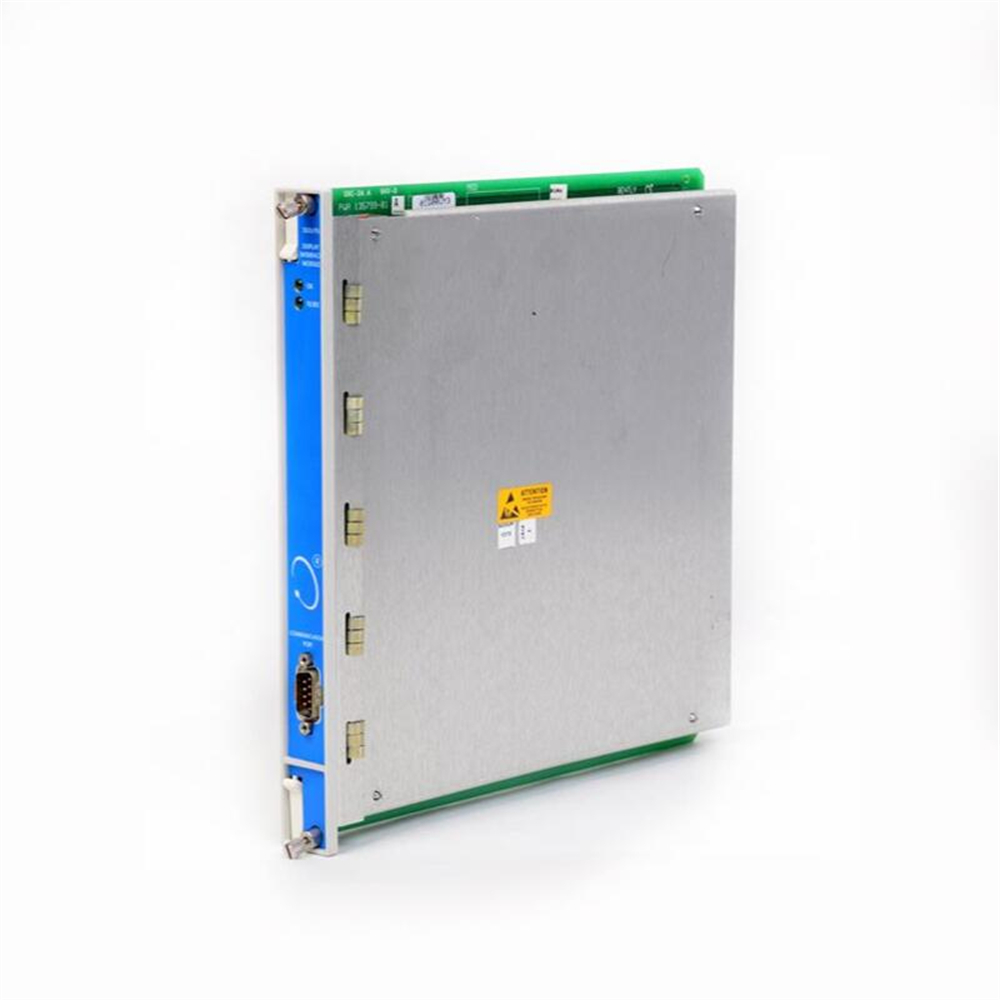

Bently Nevada 135799-01
The Bently Nevada 135799-01, also known as the 3500/93 Display Interface Module (DIM), is a user interface component for the Bently Nevada 3500 Machinery Protection System.
Here’s a breakdown of its key features:
- Function: It provides a graphical user interface (GUI) for the 3500 system, allowing local or remote monitoring of various information.
- Data Displayed: This includes system event lists, alarm events, data from channels, monitors, relay modules, keyphasor modules, and tachometer modules.
- Compliance: It meets the requirements of American Petroleum Institute (API) Standard 670.
- Communication: It can communicate using Bently Nevada’s proprietary protocol and Modbus protocol.
- Display: It has a 10.4-inch color display with 800 x 600 pixel resolution.
- Input: It has a built-in keyboard and mouse for user interaction.
- Considerations:
- It might be obsolete based on some sources.
- For back-lighted display units, an external power supply is required (available in 115 Vac and 230 Vac options).
Bently Nevada 135799-01 Application Field
1. Oil and Gas
2. Power Generation
3. Chemical Processing
4. Manufacturing
5. Pulp and Paper
6. Turbines
7. Compressors
8. Pumps
9. Fans
Bentley company
Bentley Systems, Incorporated is an American company that develops software for the design, construction, and operation of infrastructure. Their software is used by engineers, architects, constructors, surveyors, and owner-operators around the world.
- MicroStation: A 2D/3D CAD modeling application
- OpenRoads: A software suite for designing and analyzing roads and bridges
- SewerGEMS: A software program for modeling and analyzing sanitary sewer systems
- WaterCAD: A software program for modeling and analyzing water distribution systems
- STAAD.Pro: A software program for structural analysis and design
Bentley main series
| Vibration monitoring module | Monitor module | Power module | Extension cable+probe |
| 3500/05 Framework | 3500/45 Differential Expansion/Axial Position Monitor | 3500/93 System Display Device | 3300XL |
| 3500/15 power module | 3500/46 M Hydroelectric Monitor Module | 3500/95 System Integrated PC Display Device 1900/65A Four Channel Vibration Monitor |
330130 |
| 3500/20 Framework Interface Module | 3500/50 speed module | 1900/15 power module monitor | 330106 |
| 3500/22 M Transient Data Interface Module | 3500/53 Electronic Overspeed Detection System Module | 1900/17 Proximitor Monitor | 330400 |
| 3500/25 Improved Keyphasor Module | 3500/60 Temperature Monitor Module | 1900/25 vibration monitor | 330910… |
| 3500/32 4-Channel Relay Module | 3500/61 Temperature Monitor Module | 1900/27 vibration monitor | |
| 3500/33 16 Channel Relay Module | 3500/62 Process Variable Monitor Module | 1900/55 earthquake monitoring module | |
| 3500/40 displacement monitor | 3500/72 M piston rod position monitoring module | 2300/20 dual channel monitor | |
| 3500/42 M displacement/velocity monitor | 3500/77 M cylinder pressure monitoring module | 2300/25 monitor | |
| 3500/34 TMR Relay Module | 3500/92 Communication Gateway |
