Bently 3500/42M 176449-02

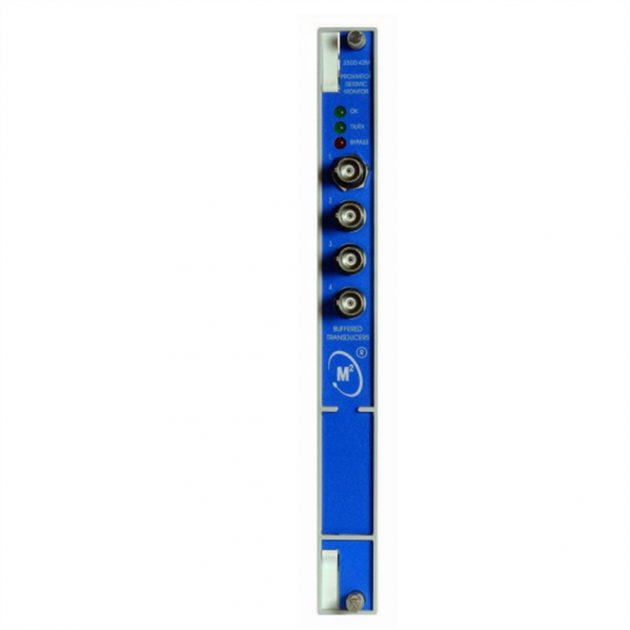

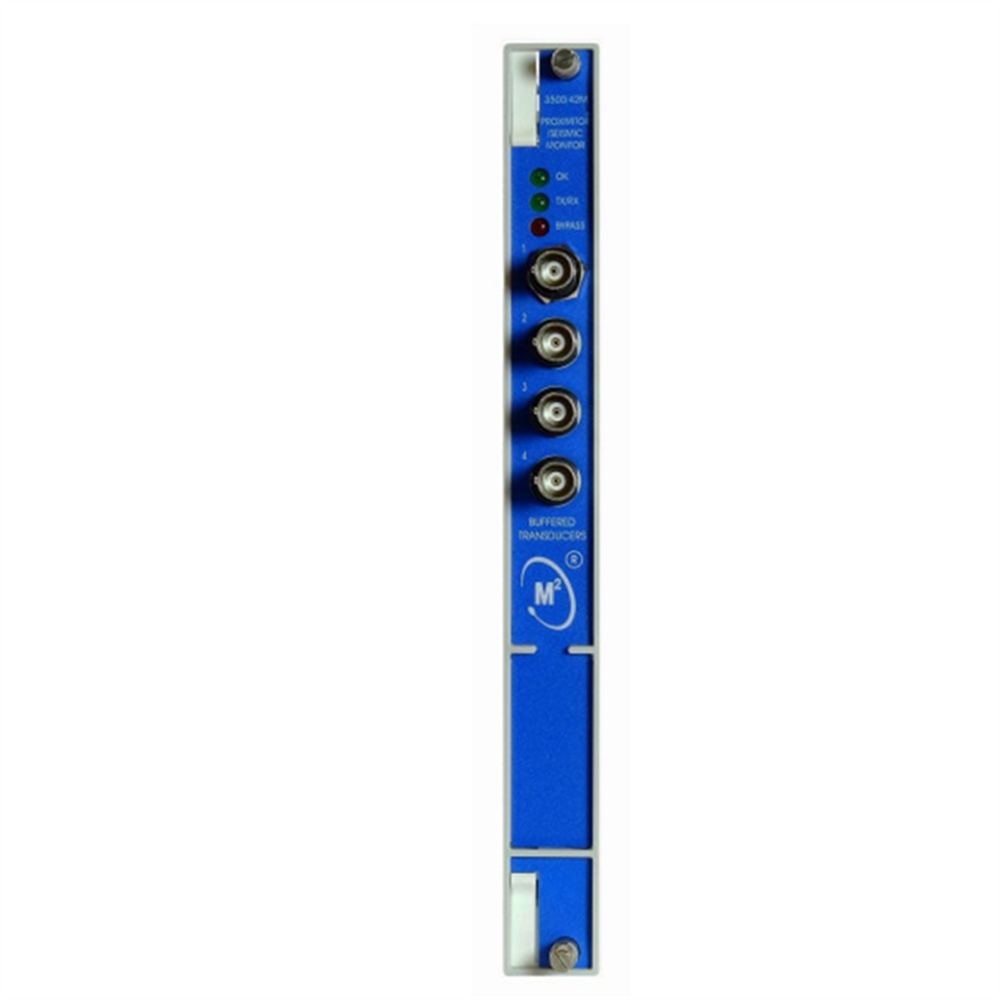

The Bently 3500/42M 176449-02 Proximitor Seismic Monitor is a device used to monitor vibration and position of machinery.
- Function: It continuously monitors machine parameters like vibration and compares them to user-defined alarm limits. If it detects an issue exceeding the setpoints, it triggers alarms to warn operators and maintenance personnel.
- Input: It can accept signals from up to four proximity probes or seismic transducers. These sensors measure vibration and displacement of machine shafts or other critical components.
- Output: The monitor processes the signals, converts them into vibration and position measurements, and transmits this data for monitoring and analysis.
Bently 3500/42M 176449-02 Application Field
1. Oil and Gas
2. Power Generation
3. Chemical Processing
4. Manufacturing
5. Pulp and Paper
6. Turbines
7. Compressors
8. Pumps
9. Fans
Bentley company
Bentley Systems, Incorporated is an American company that develops software for the design, construction, and operation of infrastructure. Their software is used by engineers, architects, constructors, surveyors, and owner-operators around the world.
- MicroStation: A 2D/3D CAD modeling application
- OpenRoads: A software suite for designing and analyzing roads and bridges
- SewerGEMS: A software program for modeling and analyzing sanitary sewer systems
- WaterCAD: A software program for modeling and analyzing water distribution systems
- STAAD.Pro: A software program for structural analysis and design
Bentley main series
| Vibration monitoring module | Monitor module | Power module | Extension cable+probe |
| 3500/05 Framework | 3500/45 Differential Expansion/Axial Position Monitor | 3500/93 System Display Device | 3300XL |
| 3500/15 power module | 3500/46 M Hydroelectric Monitor Module | 3500/95 System Integrated PC Display Device 1900/65A Four Channel Vibration Monitor |
330130 |
| 3500/20 Framework Interface Module | 3500/50 speed module | 1900/15 power module monitor | 330106 |
| 3500/22 M Transient Data Interface Module | 3500/53 Electronic Overspeed Detection System Module | 1900/17 Proximitor Monitor | 330400 |
| 3500/25 Improved Keyphasor Module | 3500/60 Temperature Monitor Module | 1900/25 vibration monitor | 330910… |
| 3500/32 4-Channel Relay Module | 3500/61 Temperature Monitor Module | 1900/27 vibration monitor | |
| 3500/33 16 Channel Relay Module | 3500/62 Process Variable Monitor Module | 1900/55 earthquake monitoring module | |
| 3500/40 displacement monitor | 3500/72 M piston rod position monitoring module | 2300/20 dual channel monitor | |
| 3500/42 M displacement/velocity monitor | 3500/77 M cylinder pressure monitoring module | 2300/25 monitor | |
| 3500/34 TMR Relay Module | 3500/92 Communication Gateway |
