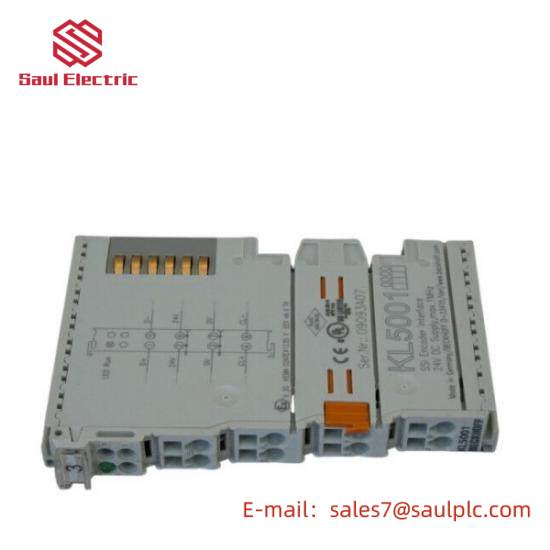

Beckhoff KL5001 Bus Terminal: Single-Channel Encoder Interface Module, Precision for Industrial Automation

Technology:SSI encoder interface

Number of Channels:1

Encoder Connection:binary input: D+, D-, binary output: Cl+, Cl-

Power Supply:24 V DC via power contacts

Current Consumption:typ. 20 mA without encoder

Encoder Supply:24 V DC via power contacts

Current Consumption K-Bus:typ. 25 mA

Weight:approx. 60 g

    The Beckhoff KL5001 Bus Terminal is engineered for optimal integration into complex industrial automation setups, ensuring seamless operation with precision encoder devices.

    Featuring a robust SSI encoder interface, this terminal module is capable of handling high-speed data transfer rates for accurate position and speed measurement.

    Designed for efficiency, the KL5001 utilizes a direct power supply of 24V DC through its power contacts, providing reliable and consistent energy delivery to the connected encoder.

    With a typical current consumption of 20mA without an encoder and 60mA when powered up, the KL5001 is resource-efficient, minimizing system load and maximizing operational reliability.

    The module’s quick response time of approximately 4ms ensures swift communication between the encoder and the control system, enhancing the overall performance of motion control applications.
