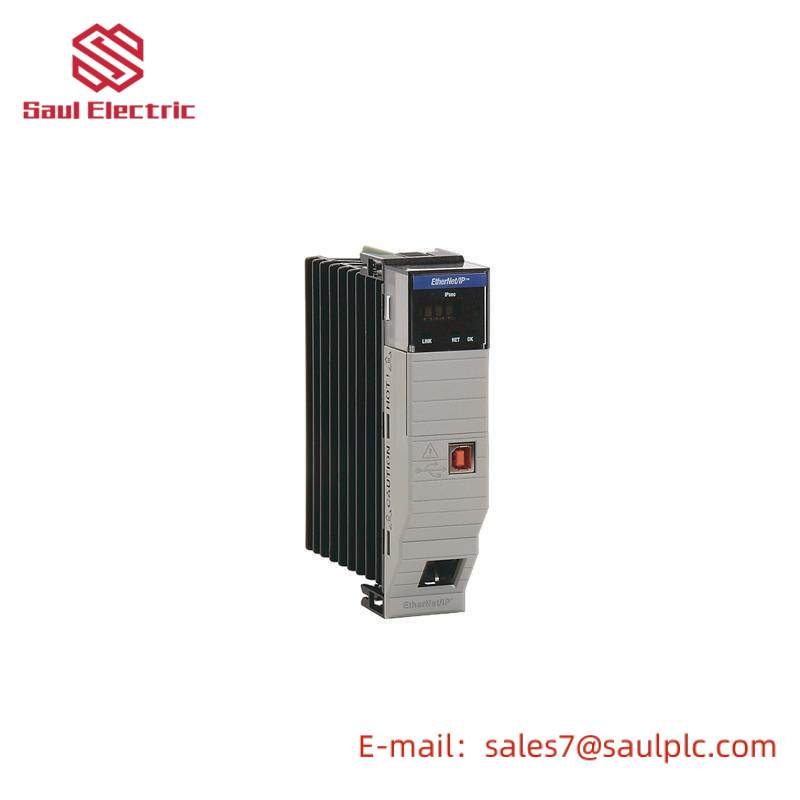

Allen Bradley AB 1756-EN2TSC Communications Module – High Capacity IP ControlLogix Communication

Model Type:High Capacity IP Module

Manufacturer:Allen Bradley

Communication Module:ControlLogix®

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Not applicable

    The Allen Bradley 1756-EN2TSC Communication Module is engineered for demanding industrial environments, ensuring reliable data transmission between ControlLogix systems. Its high-capacity design supports efficient communication speeds up to 100 Mbps, facilitating seamless operation in complex automation setups.

    With its 3 MA power supply at 24 VDC, this module ensures stable operation under varying industrial conditions, making it suitable for both new installations and upgrades in existing systems. The module’s chassis mounting option guarantees easy integration without compromising on space efficiency.

    Equipped with an Ethernet/IP Bridge, the 1756-EN2TSC facilitates compatibility with a wide range of industrial protocols, enhancing system interoperability. The open type enclosure provides protection against dust and moisture, ensuring durability in harsh environments.

    Designed for optimal performance across a broad temperature range from 0 to 60 degrees Celsius, this module withstands the rigors of industrial operations. Its 5.1 W power dissipation keeps operational temperatures within safe limits, contributing to extended lifespan and reliability.

    The 1756-EN2TSC Communication Module is built to withstand vibration levels up to 2 G and shock forces up to 30 G, making it resilient against mechanical stresses common in industrial applications. Its environmental resilience, with a humidity tolerance of 5 to 95% non-condensing, ensures dependable operation even in humid conditions.
