Current (AC):18 Amps RMS
Input Frequency (AC):47-63 Hz
Input Voltage (AC):120 – 240 VAC RMS, 1-Phase
Output Voltage:100-240VAC
Output Frequency Range:0-400 Hz
Continuous Output Power:1kW
Continuous Output Current:1A
Intermittent Output Current:30A (0-peak)
Dimensions:7.8 x 5.68 x 3.89 in (198.12 x 144.27 x 98.1 mm)
Weight:N/A
Operating Temperature:0-55 °C (32-131 °F)
Storage Temperature:-40-70 °C (-40-158 °F)
Relative Humidity:5-95% without condensation
Operating Shock:15 g (3 pulses, 11 ms)
Nonoperating Shock:30 g (3 pulses, 11 ms)

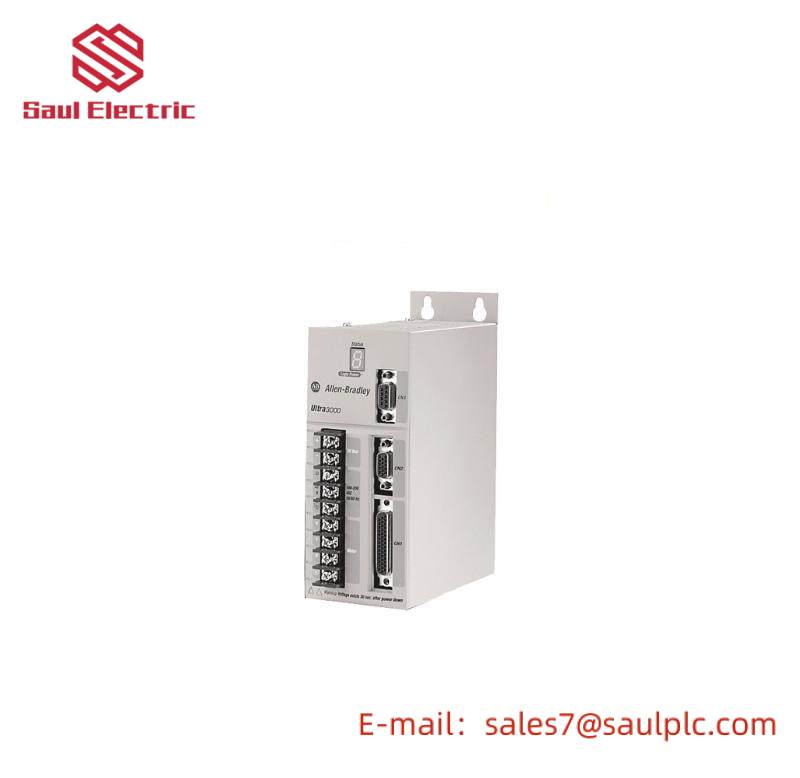

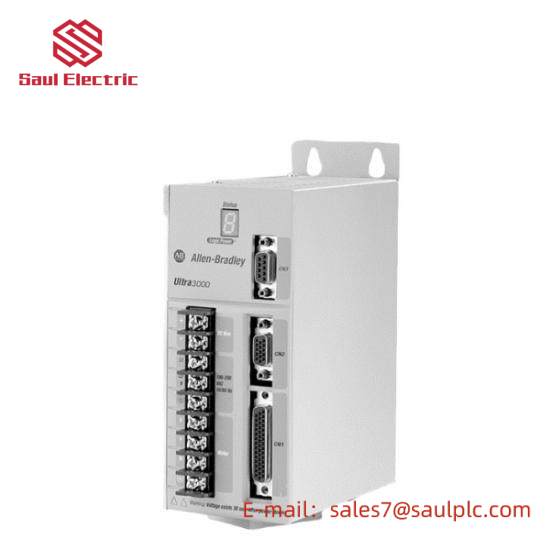

The Allen-Bradley 2098-DSD-020X is a standard digital servo drive from the Ultra 3000 series, designed to meet the demanding requirements of industrial automation. Its advanced technology ensures reliable and precise motion control.
This drive supports simple indexing or preconfigured drive motions, making it versatile for various applications. It can handle multi-axis motion control with ease, providing seamless integration with servo motors such as the Allen-Bradley Kinetix series.
The 2098-DSD-020X operates within a wide range of input voltages and frequencies, ensuring compatibility with different industrial power supplies. Its robust design includes protection against overvoltage, shock, and vibration, making it suitable for harsh environments.
With its compact dimensions and lightweight design, the 2098-DSD-020X is easy to install and integrate into existing systems. It also features advanced feedback capabilities through encoder inputs, enabling precise control over motor positions.
To enhance usability, the drive is equipped with user-friendly interfaces and comprehensive documentation, making it accessible to both experienced and novice engineers. Whether you need precise motion control for manufacturing lines or robotic systems, the 2098-DSD-020X is a reliable choice.
