Operating Voltage Range:80-264V RMS, Single Phase
Nominal Input Voltage:240V RMS
Frequency Range:48-62 Hz
Nominal Input Current:8.6 A
Max. Inrush Current:2.3 A at 240 VAC
Control Power Backup Voltage:20-26V DC
Continuous Output Current (rms):4.0 A
Continuous Output Current (0-pk):5.7 A
Peak Output Current (rms):12.0 A
Peak Output Current (0-pk):17.0 A
Output Power:0.80 kW @ 240V nom or 120V (voltage-doubler) mode
Bus Overvoltage Rating:430 VDC
Short-Circuit Current Rating:100,000 A (rms) symmetrical

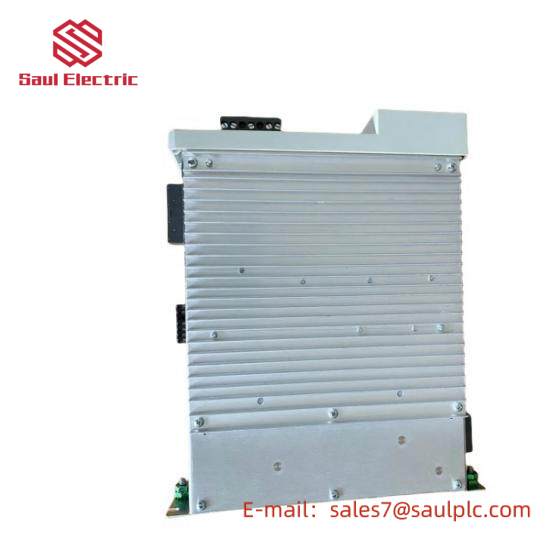

The Allen-Bradley 2097-V32PR2-LM is a high-performance servo drive designed for seamless integration with Allen-Bradley‘s ControlLogix and CompactLogix platforms. Its compact design, along with its scalability, makes it an ideal choice for space-constrained industrial environments.
Featuring an embedded Safe Torque Off functionality, this drive ensures enhanced safety compliance in accordance with ISO 13849-1 performance level d (PLd), allowing it to be used in safety applications up to safety category 3.
The 2097-V32PR2-LM is compatible with motion over Ethernet I/P, simplifying the connection process and providing cost-effective solutions for complex automation setups. Its robust design includes a built-in filter and control-power backup voltage, ensuring reliable operation even under varying conditions.
This drive offers a versatile set of input options with four (4) inputs per group, each equipped with a dedicated common such as ACOM, BCOM, and CCOM, facilitating easy configuration for diverse applications. It supports hardwired Safe-Torque Off functionality, enhancing safety measures without compromising on operational efficiency.
Weighing just 1.7 kg (3.7 lbs), the Allen-Bradley 2097-V32PR2-LM is lightweight yet durable, making it suitable for various installation scenarios in industrial settings. Its compatibility with Allen-Bradley‘s PLC platforms ensures seamless control and monitoring, optimizing production processes.
