Product Description

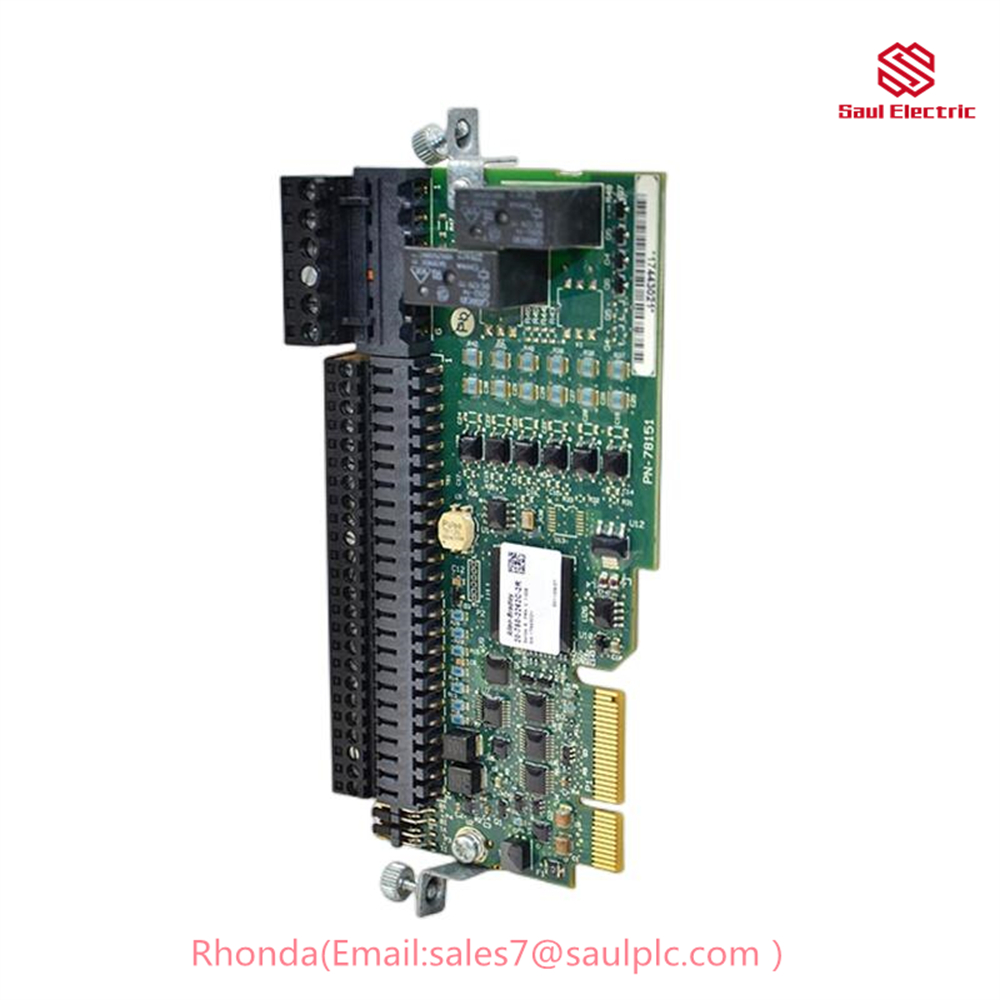

The Allen-Bradley 20-750-2262C-2R is a PowerFlex 750 24V I/O Module. It is a 12-point I/O module that can be used with PowerFlex 753/755 drives. The module has 2 analog inputs, 2 analog outputs, 6 digital inputs, and 2 relay outputs.
Product Parameters
- Input voltage: 24 VDC
- Output voltage: 24 VDC
- Input current: 20 mA per point
- Output current: 100 mA per point
- Isolation voltage: 1500 V
- Operating temperature: -40 to 70 °C (-40 to 158 °F)
- Dimensions: 150 x 130 x 30 mm (5.91 x 5.12 x 1.18 in)
- Weight: 0.5 kg (1.1 lbs)
Usage Method
The Allen-Bradley 20-750-2262C-2R I/O module is installed in the backplane of a PowerFlex 753/755 drive. Once installed, the module can be configured using the PowerFlex 750 drive’s programming software.
The analog inputs can be used to connect sensors, such as temperature sensors or pressure sensors. The analog outputs can be used to control devices, such as actuators or valves. The digital inputs can be used to connect switches or other digital devices. The relay outputs can be used to control devices, such as motors or solenoids.
Product Application
The Allen-Bradley 20-750-2262C-2R I/O module can be used in a variety of industrial applications, such as:
- Conveyor systems
- Packaging machines
- Material handling systems
- HVAC systems
- Food and beverage processing
- Oil and gas
- Water and wastewater treatment
Examples of Usage
Here are some examples of how the Allen-Bradley 20-750-2262C-2R I/O module can be used:
- In a conveyor system, the module can be used to connect a temperature sensor to monitor the temperature of the conveyor belt. The module can also be used to connect a switch to detect when a product has reached the end of the conveyor belt.
- In a packaging machine, the module can be used to connect a pressure sensor to monitor the air pressure in a pneumatic actuator. The module can also be used to connect a switch to detect when a product has been properly packaged.
- In a material handling system, the module can be used to connect a proximity sensor to detect the presence of a product. The module can also be used to connect a relay output to control a solenoid valve that opens and closes a gate.
- In an HVAC system, the module can be used to connect a temperature sensor to monitor the temperature of a room. The module can also be used to connect a relay output to control a damper that controls the airflow to the room.
The Allen-Bradley 20-750-2262C-2R I/O module is a versatile and powerful I/O module that can be used in a variety of industrial applications.
