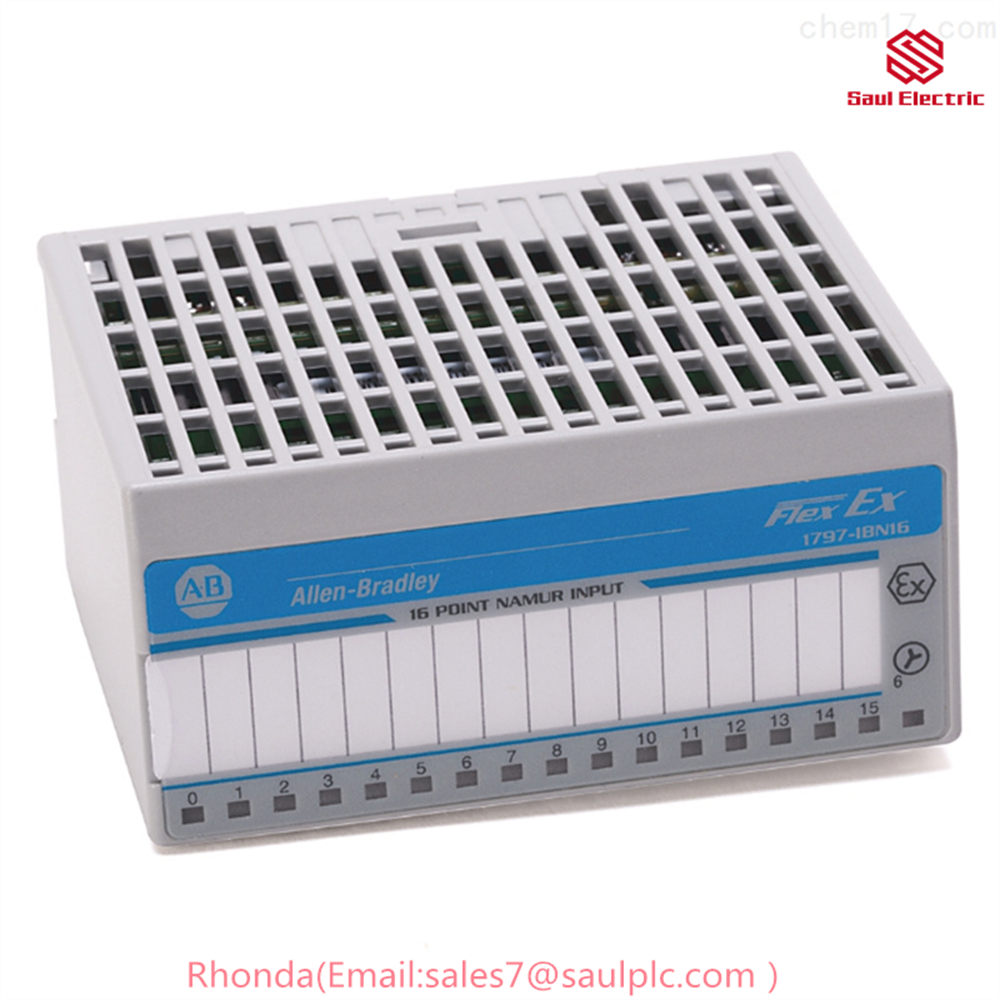

Product Information:A-B 1797-IBN16 FlexEx 16 Point Input Module
Allen-Bradley 1797-IBN16 Product Description
The Allen-Bradley 1797-IBN16 is a Flex Ex NAMUR digital input module. It is a non-isolated, sinking input module with 16 channels. The module is designed for use in hazardous locations and is certified to IECEx, NMETRO, C-UL, CENELEC, and FM standards.
Product Parameters
- Number of channels: 16
- Input type: Sinking, non-isolated
- Input voltage range: 5 to 30 VDC
- Input current: 0.5 mA
- Output voltage range: 0.5 to 30 VDC
- Output current: 10 mA
- Operating temperature range: -40 to 70 degrees Celsius (-40 to 158 degrees Fahrenheit)
- Dimensions: 46 x 94 x 75 mm (1.8 x 3.7 x 2.95 inches)
- Weight: 200 grams
Usage Methods
The Allen-Bradley 1797-IBN16 is used to connect NAMUR proximity sensors to a programmable logic controller (PLC). NAMUR proximity sensors are non-contact sensors that are used to detect the presence of objects without making physical contact. They are commonly used in hazardous locations, such as chemical plants and refineries.
To use the 1797-IBN16, the NAMUR proximity sensors must be wired to the module’s terminals. The module’s outputs are then connected to the PLC’s input terminals. The PLC can then be programmed to read the status of the NAMUR proximity sensors and take appropriate action.
Product Advantages
The Allen-Bradley 1797-IBN16 offers a number of advantages, including:
- It is designed for use in hazardous locations and is certified to IECEx, NMETRO, C-UL, CENELEC, and FM standards.
- It has a non-isolated design, which provides immunity to electrical noise.
- It has a wide input voltage range, which makes it compatible with a variety of NAMUR proximity sensors.
- It has a high input impedance, which reduces the load on the NAMUR proximity sensors.
- It has a low output impedance, which provides strong drive capability for the PLC’s input terminals.
Applications
The Allen-Bradley 1797-IBN16 is commonly used in a variety of applications, including:
- Chemical plants
- Refineries
- Oil and gas production facilities
- Food and beverage processing plants
- Pharmaceutical plants
- Water and wastewater treatment plants
Conclusion
The Allen-Bradley 1797-IBN16 is a versatile and reliable Flex Ex NAMUR digital input module. It is designed for use in hazardous locations and is certified to IECEx, NMETRO, C-UL, CENELEC, and FM standards. The module offers a number of advantages, including a non-isolated design, a wide input voltage range, a high input impedance, and a low output impedance. The 1797-IBN16 is commonly used in a variety of applications, including chemical plants, refineries, oil and gas production facilities, food and beverage processing plants, pharmaceutical plants, and water and wastewater treatment plants.
