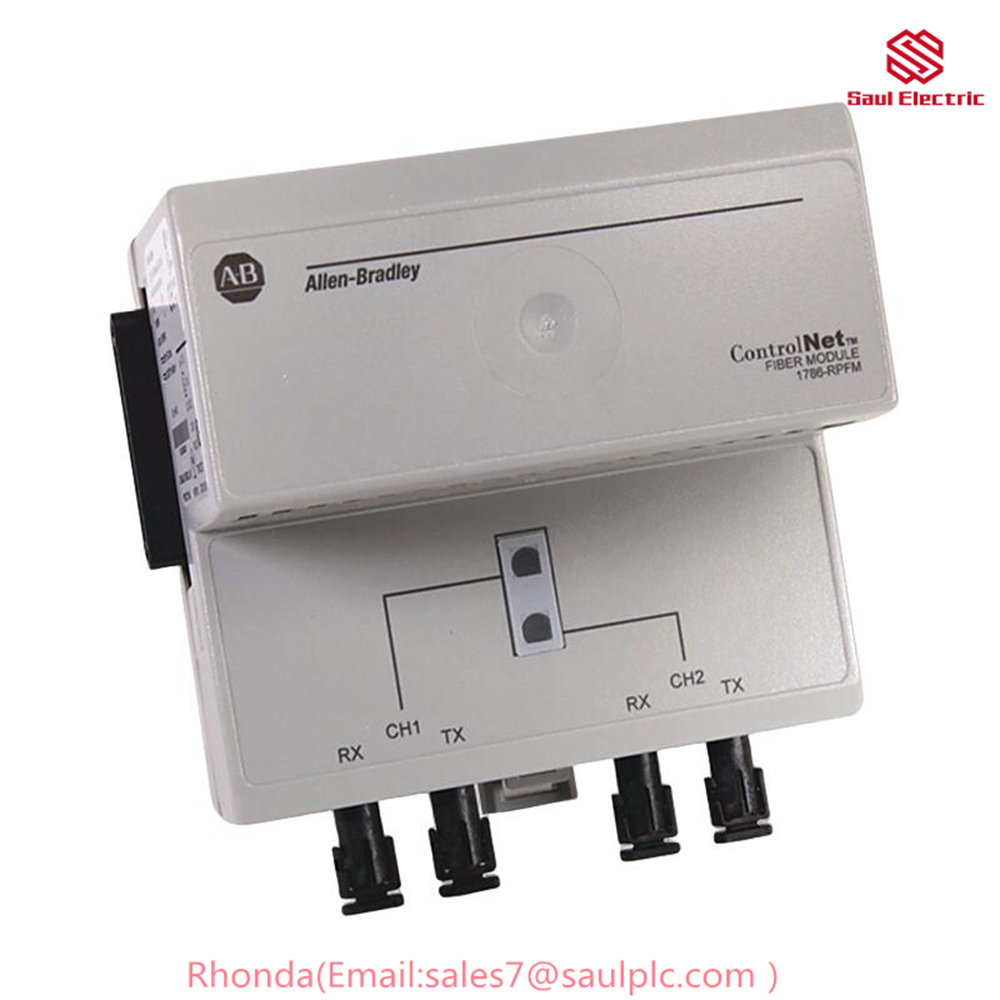

Product Information:A-B 1786-RPFM ControlNet Fiber Ring Medium Repeater
Product Description
The Allen-Bradley 1786-RPFM is a ControlNet repeater medium-distance fiber module. It is used to extend the range of a ControlNet network by amplifying the signal and retransmitting it over a longer distance. The 1786-RPFM supports a maximum distance of 3 km (1.86 miles) per fiber segment. It can be used in point-to-point or star topologies.
Product Parameters
- Voltage ranges: Backplane: 5V DC, 400mA; Dissipation: 2W
- Communication rate: 5 Mbps
- Fiber type: 62.5/125 Micron multimode OM-1 fiber
- Fiber termination type ST: Plastic or ceramic
- Fiber operation wavelength: 1300nm
- Optical power budget: 13.3 dB
Usage Methods
The 1786-RPFM is installed in a ControlNet I/O chassis. It is important to note that the 1786-RPFM must be installed in a chassis that supports fiber optic modules. Once the 1786-RPFM is installed, it must be configured using the ControlNet Configurator software.
To configure the 1786-RPFM, follow these steps:
- Open the ControlNet Configurator software.
- Add the 1786-RPFM to the project.
- Set the baud rate and fiber type.
- Assign the 1786-RPFM to a node on the network.
- Download the configuration to the 1786-RPFM.
Once the 1786-RPFM is configured, it will begin amplifying and retransmitting the ControlNet signal.
Product Advantages
The 1786-RPFM offers a number of advantages, including:
- Extended range: The 1786-RPFM can extend the range of a ControlNet network by up to 3 km (1.86 miles) per fiber segment.
- Noise immunity: Fiber optic cable is less susceptible to noise interference than copper cable. This makes the 1786-RPFM a good choice for use in noisy environments.
- Electrical isolation: The 1786-RPFM provides electrical isolation between nodes on the network. This can help to protect the network from electrical interference.
Applications
The 1786-RPFM is typically used in industrial applications where it is necessary to extend the range of a ControlNet network. It is also used in applications where the network is exposed to noise or electrical interference.
Some specific examples of applications where the 1786-RPFM is used include:
- Manufacturing plants
- Oil and gas facilities
- Power plants
- Water treatment facilities
- Transportation systems
